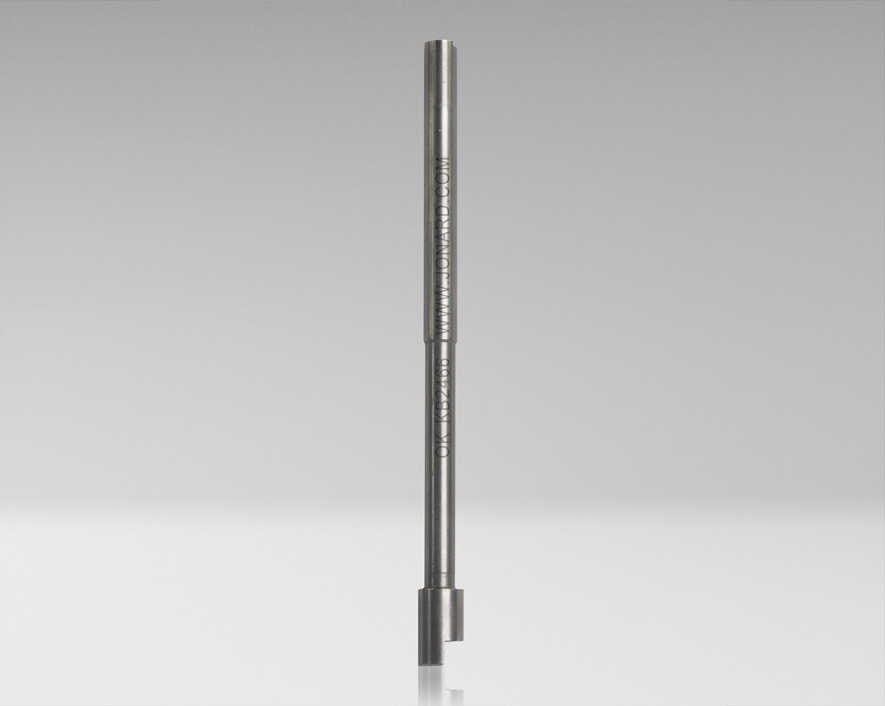

Jonard - KB2466 - Wire Wrapping Bit, 24-26 AWG
Part number:
KB2466
Price:
Fully compatible with any make or model of wire wrapping tools, this 3" wire wrapping bit is perfect for wrapping 22-24 AWG wire around binding posts when used in conjunction with a wire wrapping tool.
Compatible Wrap Sleeve Part No.: OK8519
| Specifications | |
| Sleeve Part No. | OK8519 (sold separately) |
| Wrap Function | Wrap |
| Wrap Type | Regular |
| Wire Gauge | 24-26 AWG (0.50 mm - 0.40 mm) |
| Minimum Terminal Diagonal | 0.054" (1.37 mm) |
| Maximum Terminal Diagonal | 0.065" (1.65 mm) |
| Terminal Hole Diameter | 0.066" (1.67 mm) |
| Terminal Hole Depth | 1" (25.4 mm) |
| Effective Radius | 0.098" (2.48 mm) |
| Wrap Post Size | 0.045" (1.14 mm) |
| Length | 3(7.9375cm) |
| Weight | 0.01 lb (4.54 g) |
| UPC # | 811490013568 |
