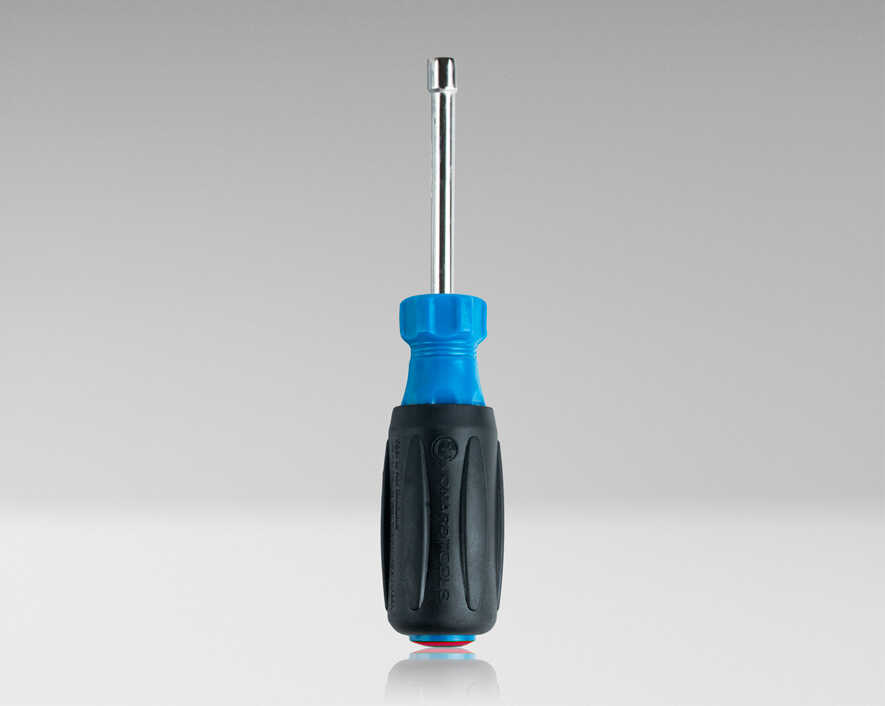

Jonard - ND-63014 - 1/4" Hollow Nut Driver, 3" Shaft
Part number:
ND-63014
Price:

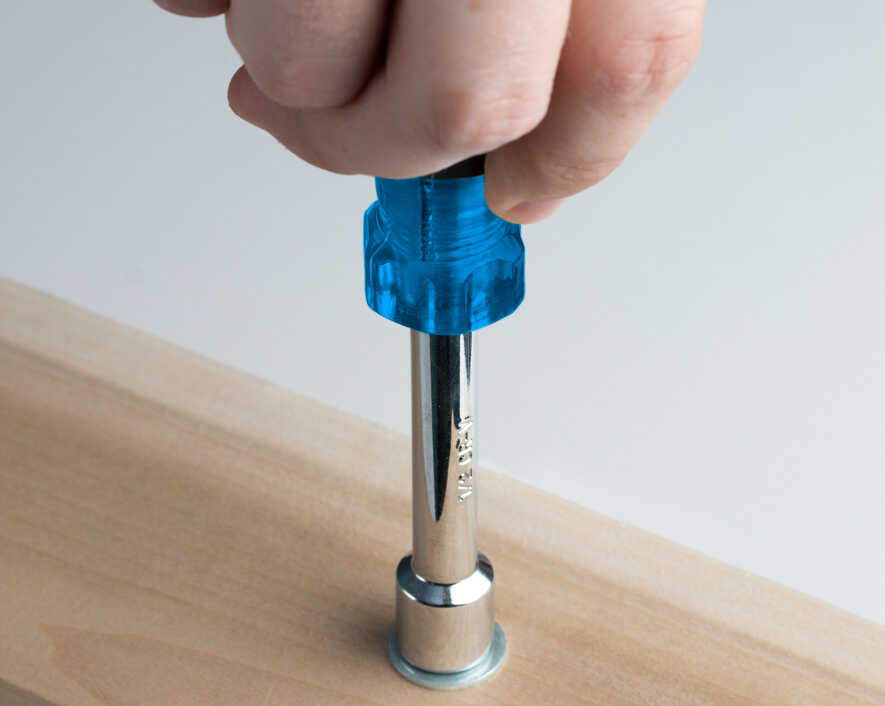

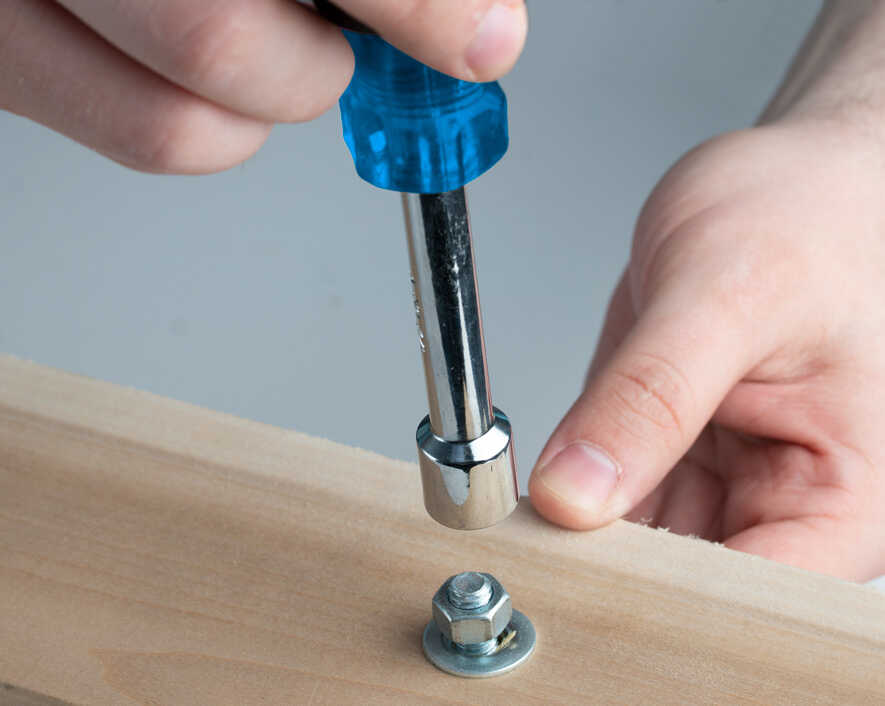

Jonard’s Nut Drivers have a full length hollow shaft, making them a great tool to use on stacked circuit boards and long bolts/studs. Our Nut Drivers feature the following:
Features:
- Internal shaft flanges to prevent the handle from slipping
- Ergonomically designed handle with thermoplastic rubberized grip for greater comfort and torque

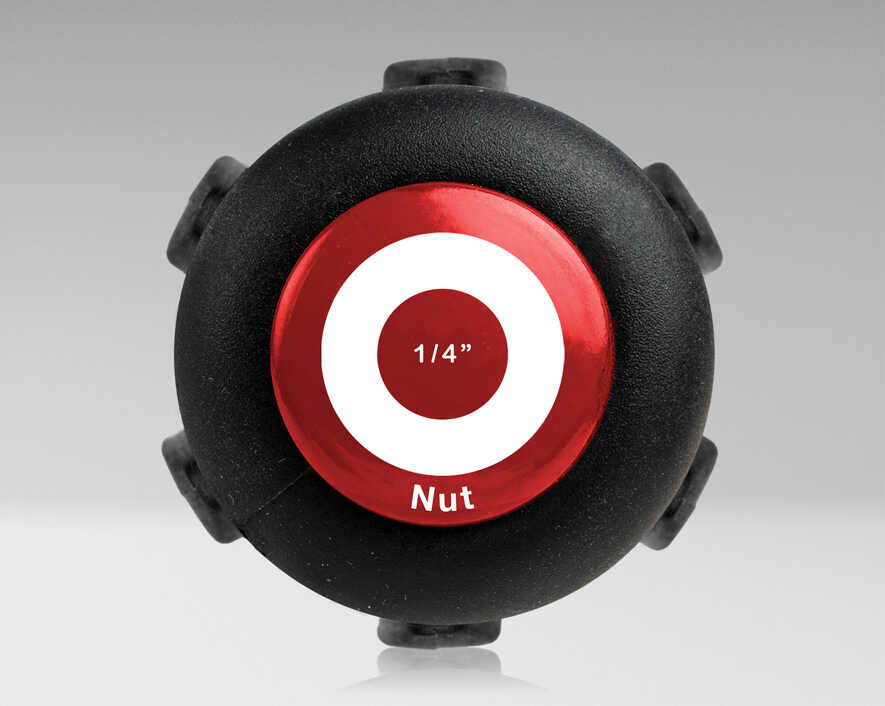

- End of the handle is marked to be easily identifiable while stored
- This product complies with ASME B107.110 and ANSI standards
| Specifications | |
| Driver Size | 1/4" (6.35 mm) |
| Shaft Material | Chrome Vanadium Steel |
| Handle Type | Ergonomic Cushion Grip |
| Handle Grip Material | TPR |
| Standards | ASME B107.110/ANSI |
| Shaft Length | 3" (76.2 mm) |
| Hollow Depth | 6.75" (171.5 mm) |
| Overall Length | 7" (177.8 mm) |
| Product Material | Chrome Vanadium Steel |
| Handle Material | TPR (Thermoplastic Rubber) |
| Dimensions | 7 in x 1 in x 1 in (17.78 cm x 2.54 cm x 2.54 cm) |
| Weight | 0.25 lb (113.5 g) |
| UPC # | 811490012066 |
