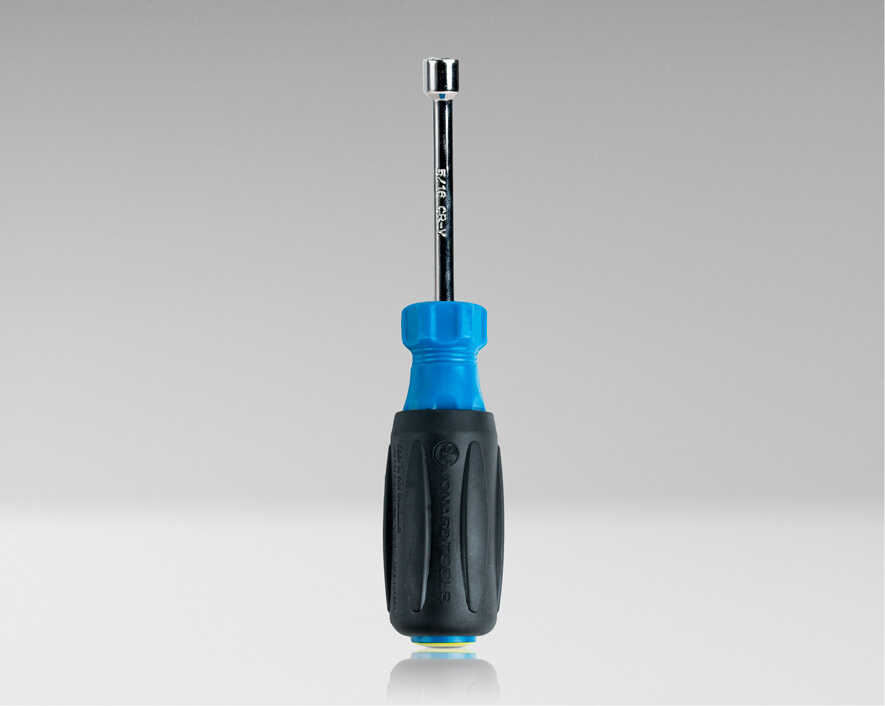

Jonard - ND-630516 - 5/16" Hollow Nut Driver, 3" Shaft
Part number:
ND-630516
Price:
Jonard’s Nut Drivers have a full length hollow shaft, making them a great tool to use on stacked circuit boards and long bolts/studs. Our Nut Drivers feature the following:
Features:
- Internal shaft flanges to prevent the handle from slipping
- Ergonomically designed handle with thermoplastic rubberized grip for greater comfort and torque

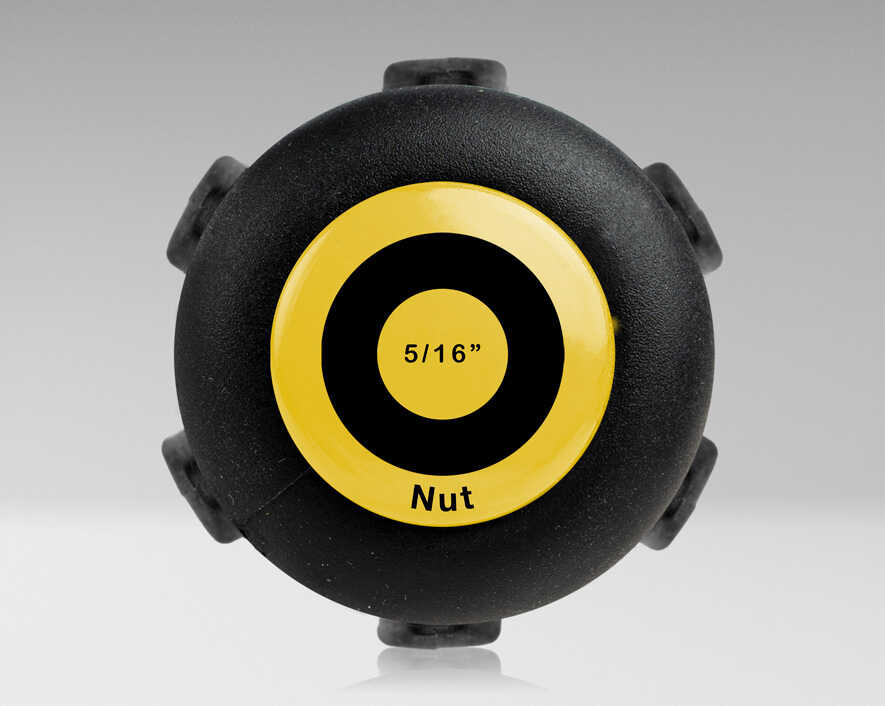

- End of the handle is marked to be easily identifiable while stored
- This product complies with ASME B107.110 and ANSI standards
| Specifications | |
| Driver Size | 5/16" (7.94 mm) |
| Shaft Material | Chrome Vanadium Steel |
| Handle Type | Ergonomic Cushion Grip |
| Handle Grip Material | TPR |
| Standards | ASME B107.110/ANSI |
| Shaft Length | 3" (76.2 mm) |
| Hollow Depth | 6.75" (171.5 mm) |
| Overall Length | 7" (177.8 mm) |
| Product Material | Chrome Vanadium Steel |
| Handle Material | TPR (Thermoplastic Rubber) |
| Dimensions | 7.25 in x 1.49 in x 1.5 in (18.42 cm x 3.78 cm x 3.81 cm) |
| Weight | 0.26 lb (118.04 g) |
| UPC # | 811490012097 |
