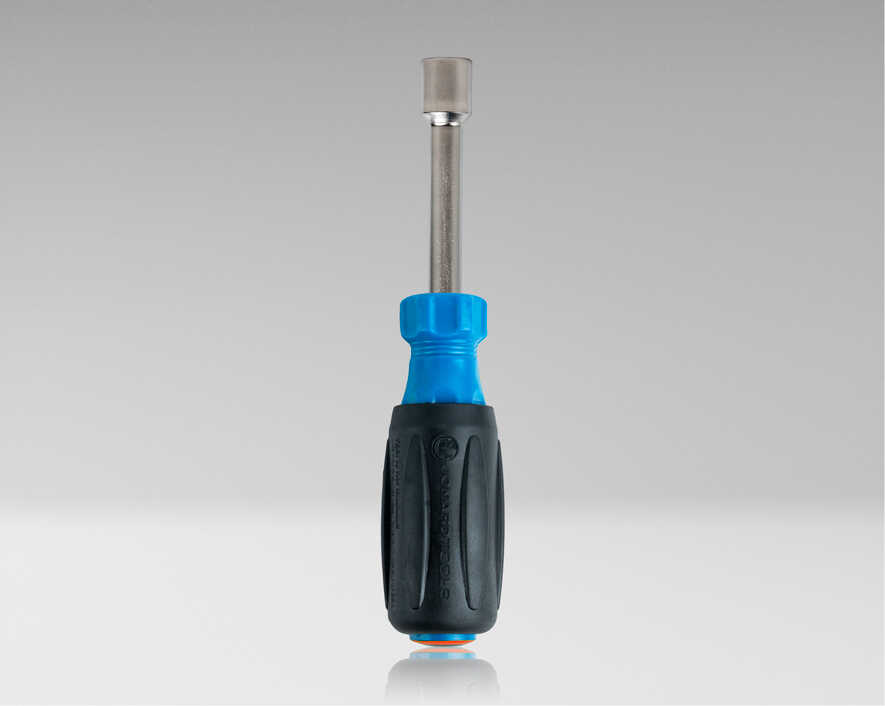

Jonard - ND-630916 - 9/16" Hollow Nut Driver, 3" Shaft
Part number:
ND-630916
Price:
Jonard’s Nut Drivers have a full length hollow shaft, making them a great tool to use on stacked circuit boards and long bolts/studs. Our Nut Drivers feature the following:
Features:

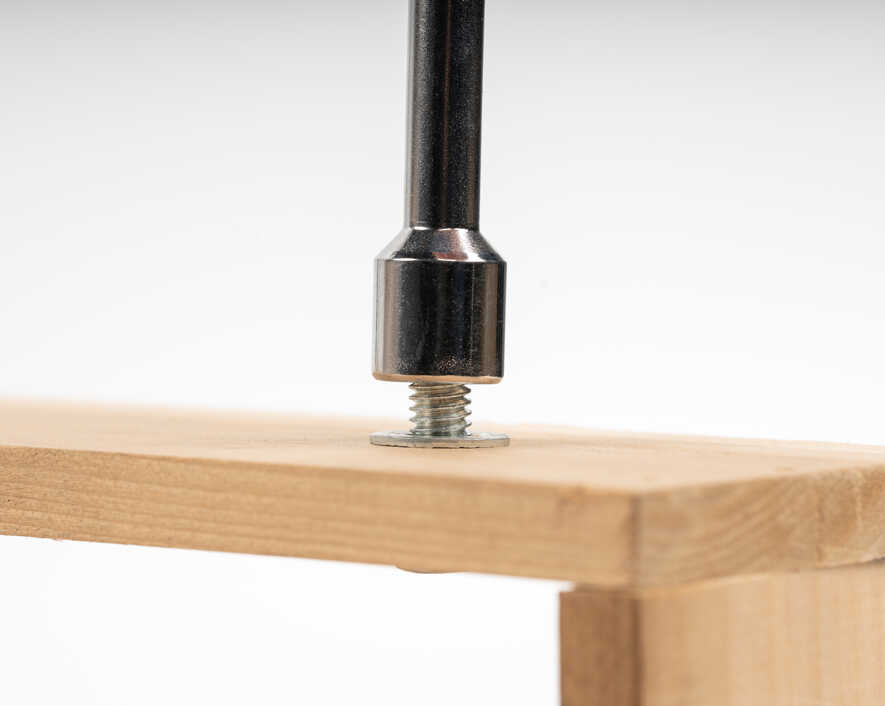

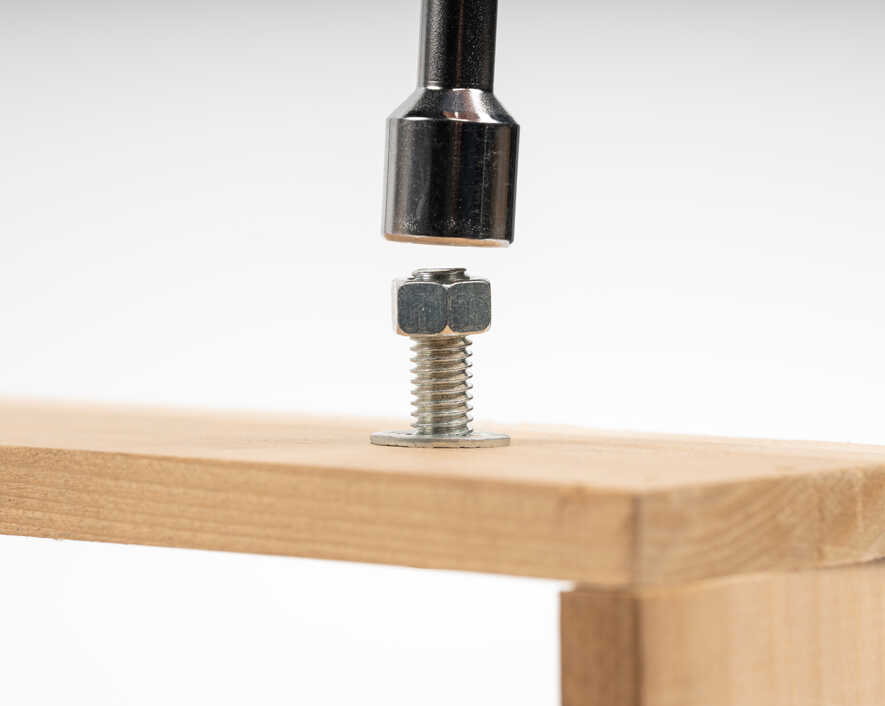

- Full length hollow shaft, perfect for use on stacked circuit boards and long bolts/studs
- Internal shaft flanges to prevent the handle from slipping
- Ergonomically designed handle with thermoplastic rubberized grip for greater comfort and torque

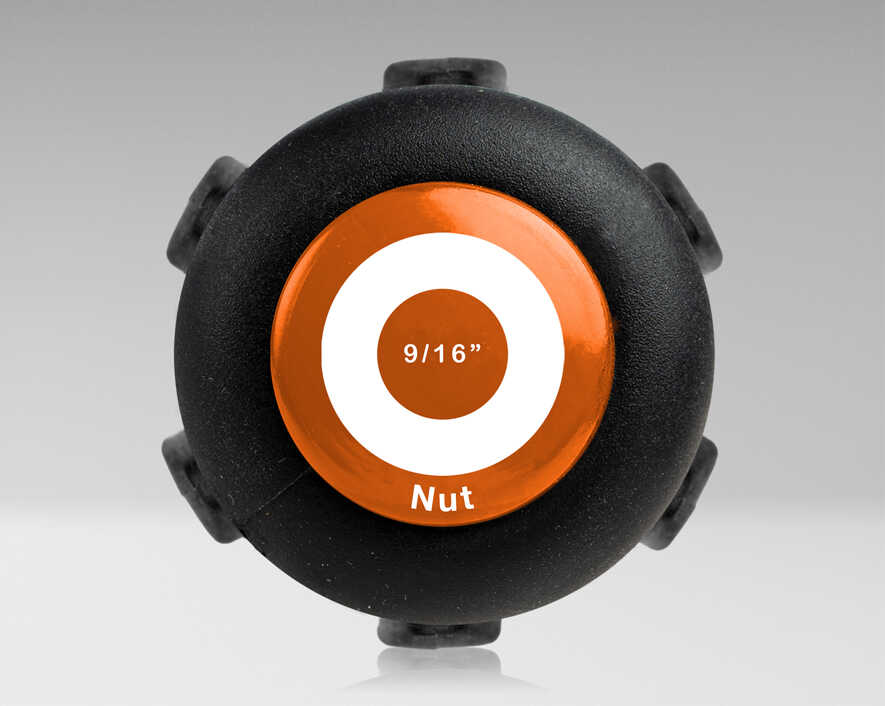

- End of the handle is marked to be easily identifiable while stored
- This product complies with ASME B107.110 and ANSI standards
- Lifetime Warranty
| Specifications | |
| Driver Size | 9/16" (14.29 mm) |
| Shaft Material | Chrome Vanadium Steel |
| Handle Type | Ergonomic Cushion Grip |
| Standards | ASME B107.110/ANSI |
| Shaft Length | 3" (76.2 mm) |
| Hollow Depth | 4.0" (101.6 mm) |
| Product Material | Chrome Vanadium Steel |
| Handle Material | TPR (Thermoplastic Rubber) |
| Dimensions | 7 in x 1 in x 1 in (17.78 cm x 2.54 cm x 2.54 cm) |
| Weight | 0.29 lb (131.66 g) |
| UPC # | 810053352076 |
