Jonard - OFI-50 - Optical Fiber Identifier
Part number:
OFI-50
Price:

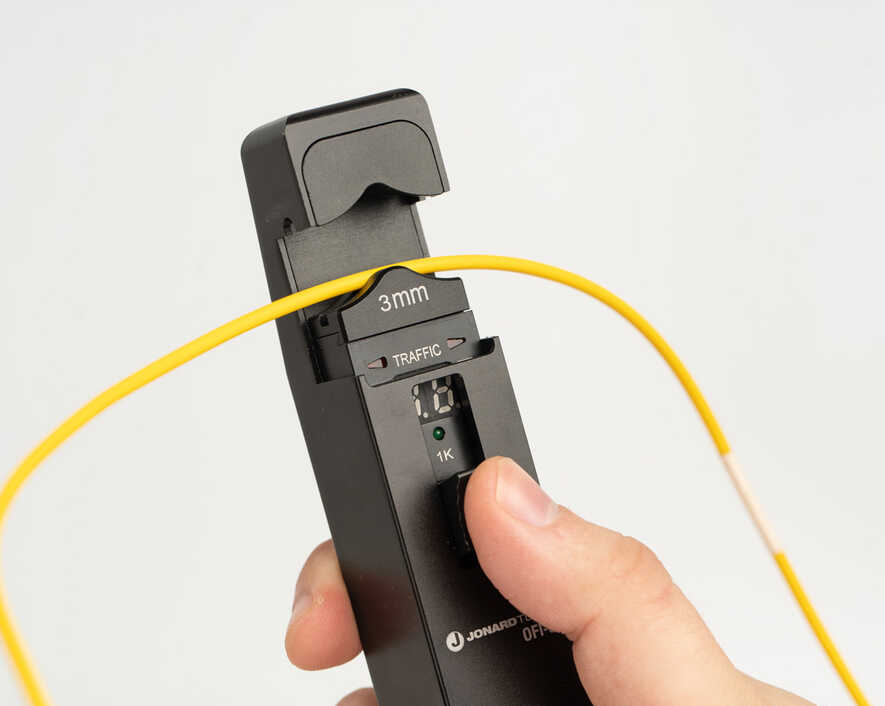

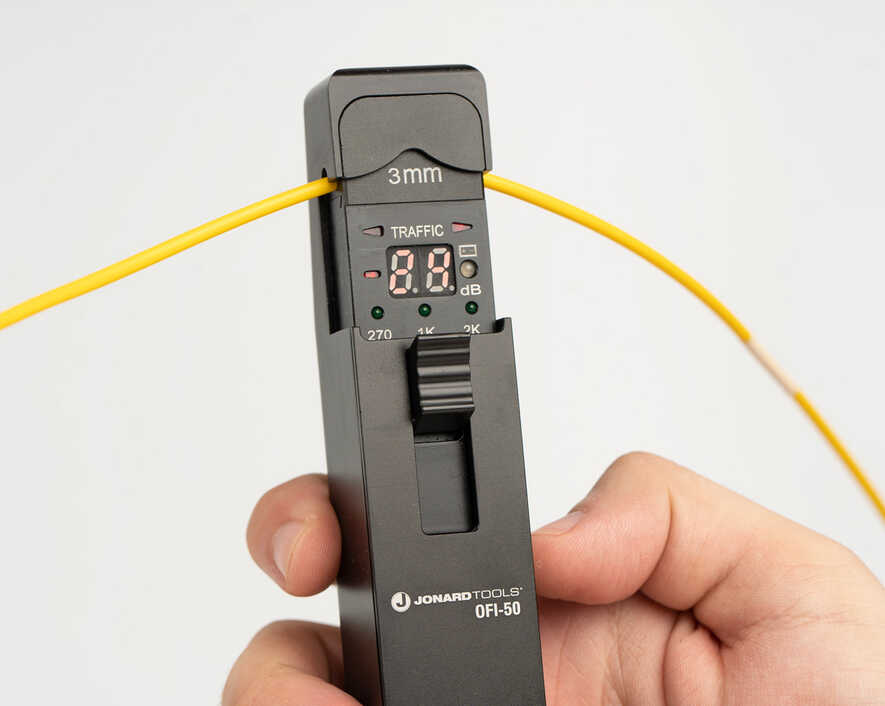

Designed to quickly identify the direction of transmitted fiber and display the relative core power without damaging the fiber, this fiber identifier is the perfect tool for identifying fiber in network systems without disrupting the network. This fiber identifier also features the following:



Features:

  • Easy-to-use one key operation
  • Efficiently identifies the traffic direction and frequency tone (270Hz, 1KHz, 2KHz) with an audible warning.
  • The display shows you the relative core power clearly

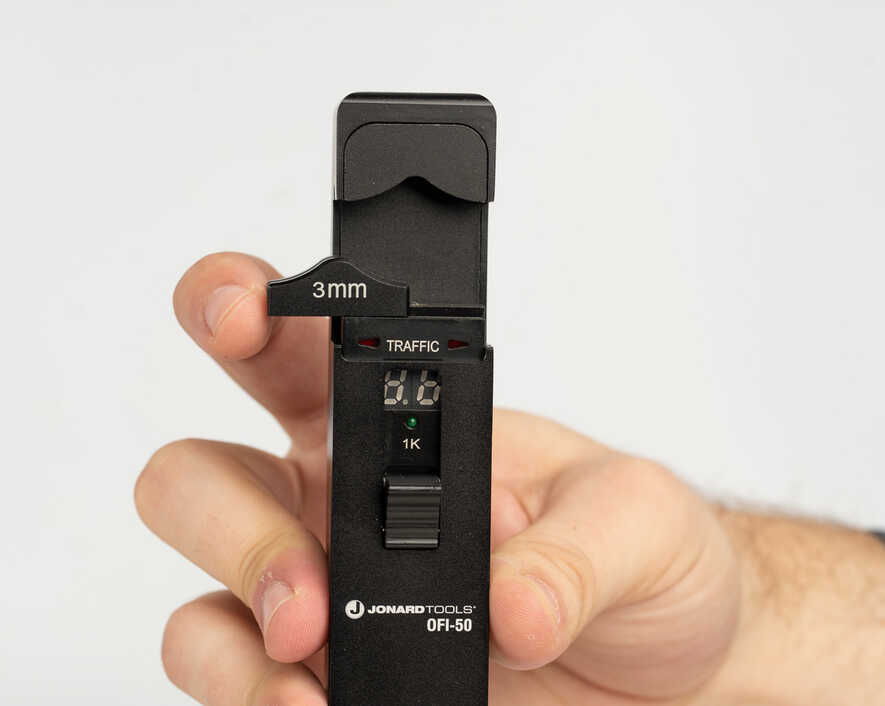

  • Includes 3 mm, 2 mm, 900 nm (0.90 mm) and 250 nm (0.25 mm) adapters for different sized fiber optic cables
  • Included sunshade protects the fiber optic cable from interference to provide more accurate readings
  • Durable metal housing provides long life and durability
  • LED indicator lets you know when the battery is running low

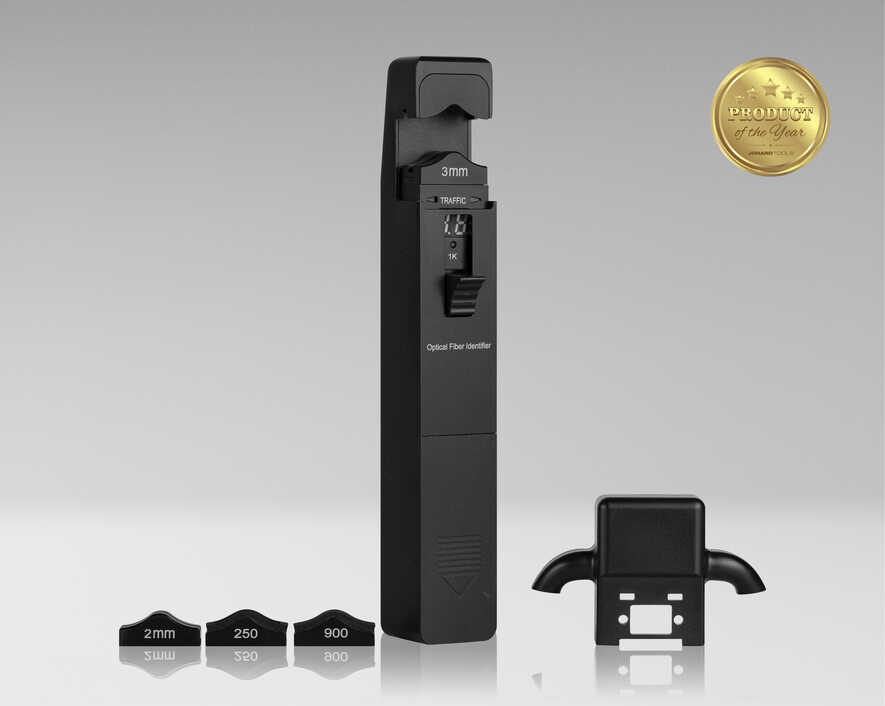

Kit Includes:

  • Fiber Identifier
  • 3 mm, 2 mm, 900 nm (0.90 mm), and 250 nm (0.25 mm) adapters
  • Sunshade
  • (1) 9V Battery
  • Carrying pouch
Specifications
Identified Wavelength Range800-1700 nm
Identified Signal TypeCW, 270Hz±5%,1kHz±5%,2kHz±5%
Detector TypeØ1mm InGaAs 2pcs
Adapter TypeØ0.25 (Applicable for Bare Fiber), Ø0.9, Ø2.0 , and Ø3.0
Signal DirectionLeft & Right LED
Signal Direction Test Range-46~+10 dBm (1310 nm, CW/0.9 mm bare fiber), -50~+10 dBm (1550 nm, CW/0.9 mm bare fiber)
Signal Frequency Display270 Hz, 1 kHz, 2 kHz
Insertion Loss0.8 dB (1310nm), 2.5 dB (1550nm)
Battery Type9V
Weight0 lb (0 g)
UPC #811490010901
