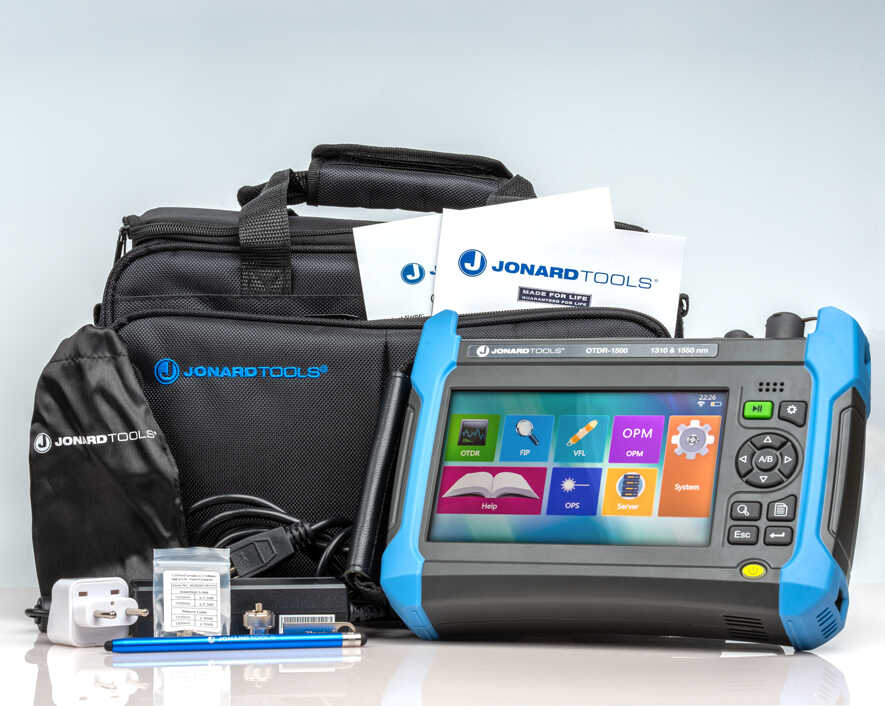

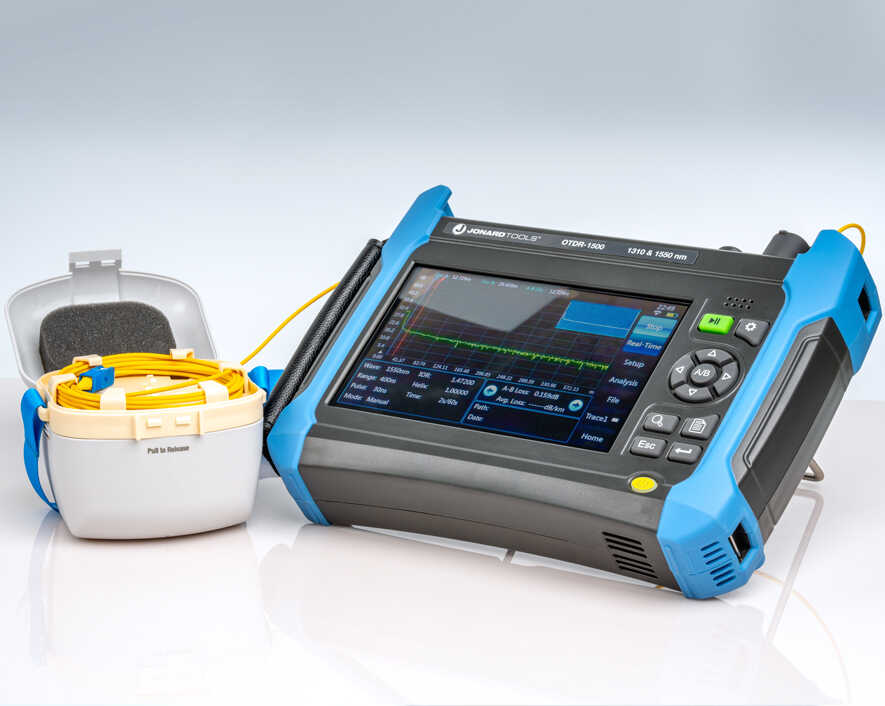

Jonard - OTDR-1500 - Professional Multi-Function OTDR, 1310/1550 nm
Part number:
OTDR-1500
Price:
Jonard Tools’ Professional Multi-Function OTDR is the perfect all-in-one handheld device for evaluating FTTx and access network construction and maintenance, identifying fiber breakpoints, measuring cable length, and calculating relative optical power losses. This OTDR also features the following:
Features:
- Includes 5 different functions for testing: 1310/1550 nm OTDR module, 1310/1550 nm Light Source module, Power Meter module, Visual Fault Locator module, and Help module

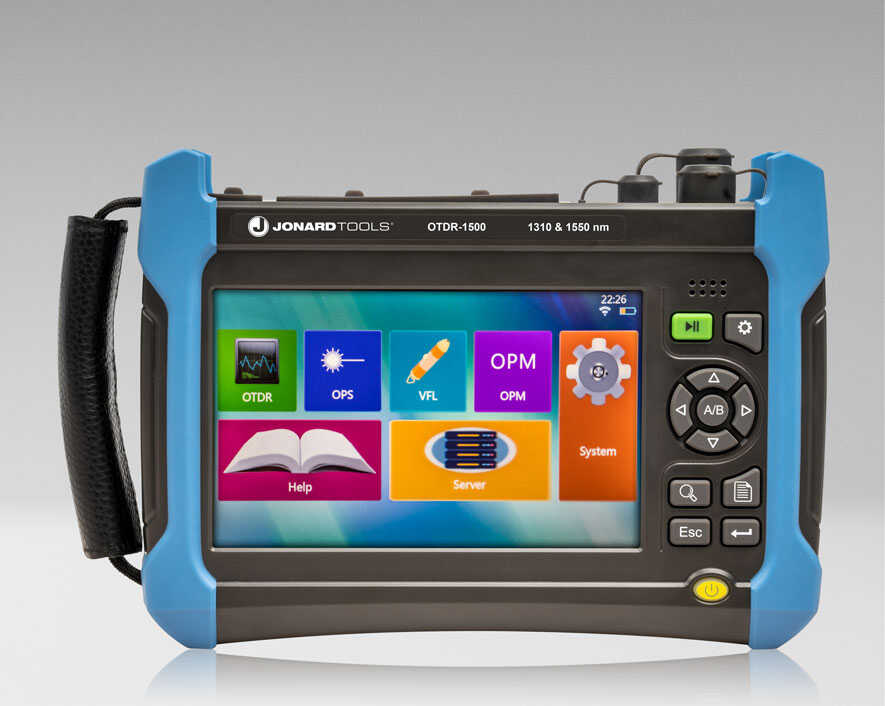

- Large, bright 7” color LCD touch screen makes it quick and easy to evaluate data
- More accurate testing with a 32/30 Dynamic Range
- Features Dual Wavelength Testing (see both 1310 & 1550 wavelengths simultaneously)
| Specifications | |
| Wavelengths | 1310±20nm, 1550±20nm |
| Fiber Type | G.652 SingleMode Fiber |
| Dynamic Range | 32 dB/30 dB |
| Event Blind Zone | 0.5 m |
| ATT Blind Zone | 0.5 m |
| Test Range | 500m-80km |
| Pulse Width | 3ns-10us |
| Range Accuracy | ±（0.75 m + Sampling Interval + 0.0025％× Test Distance） |
| Loss Accuracy | ± 0.02 dB/km |
| # of Sampling Points | 256k |
| Sampling Resolution | 0.5m-32 m |
| Reflection Accuracy | ± 2 dB |
| Data Storage | Internal: 200 MB; External: MicroSD Card |
| Laser Safety Level | Class II level |
| File Format | SOR Standard File Format |

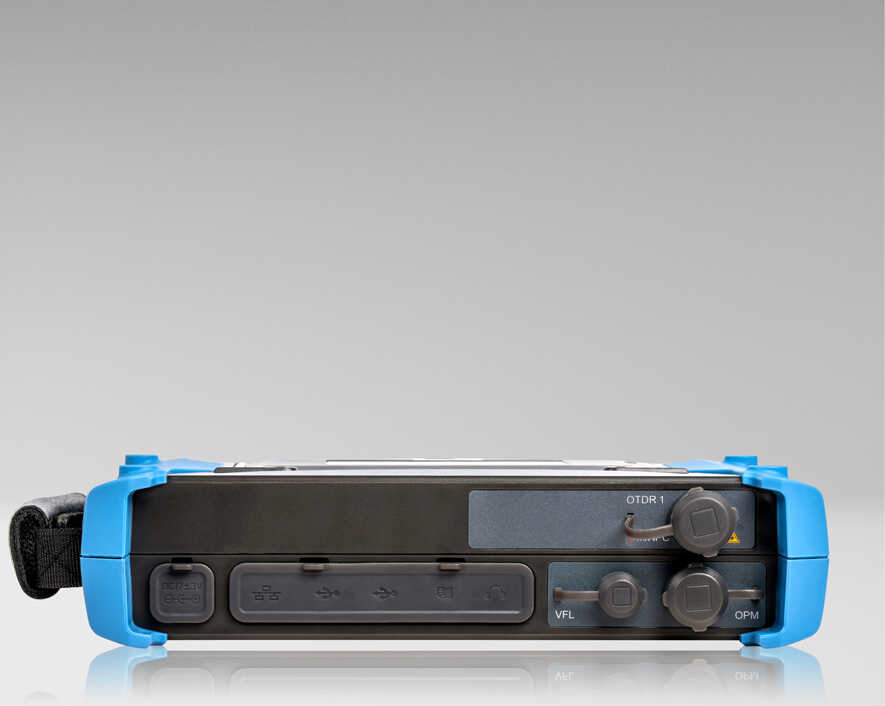

| Included Connectors for OTDR | FC, SC (APC) |
| Dimensions | 13 in x 4.5 in x 9.5 in (33.02 cm x 11.43 cm x 24.13 cm) |
| Weight | 6.31 lb (2866.556 g) |
| UPC # | 810053352113 |
