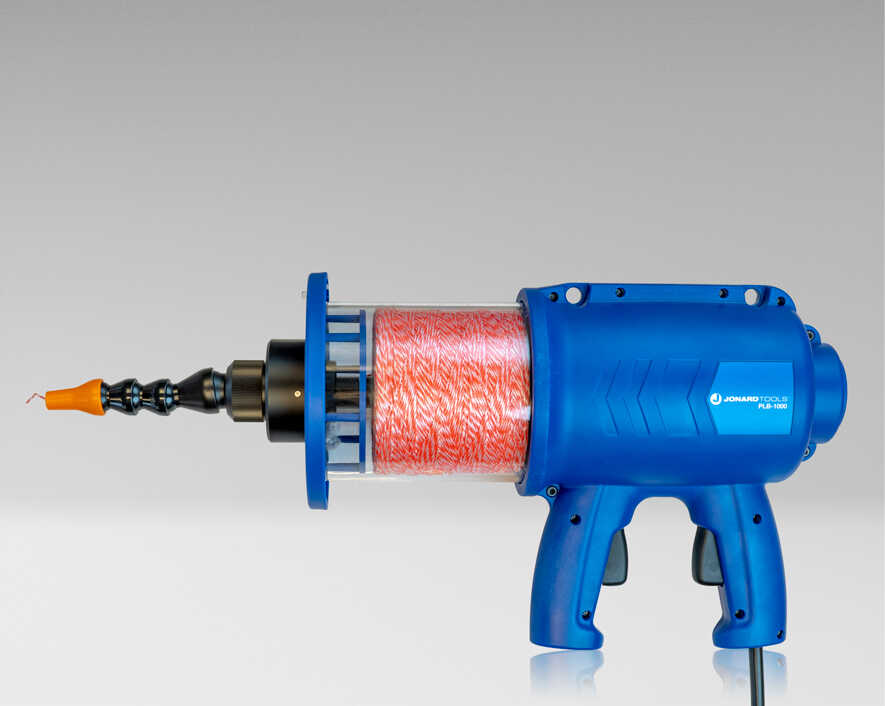

Jonard - PLB-1000 - Pull Line Blower for 3/4" to 2" (18-50 mm) Conduit
Part number:
PLB-1000
Price:

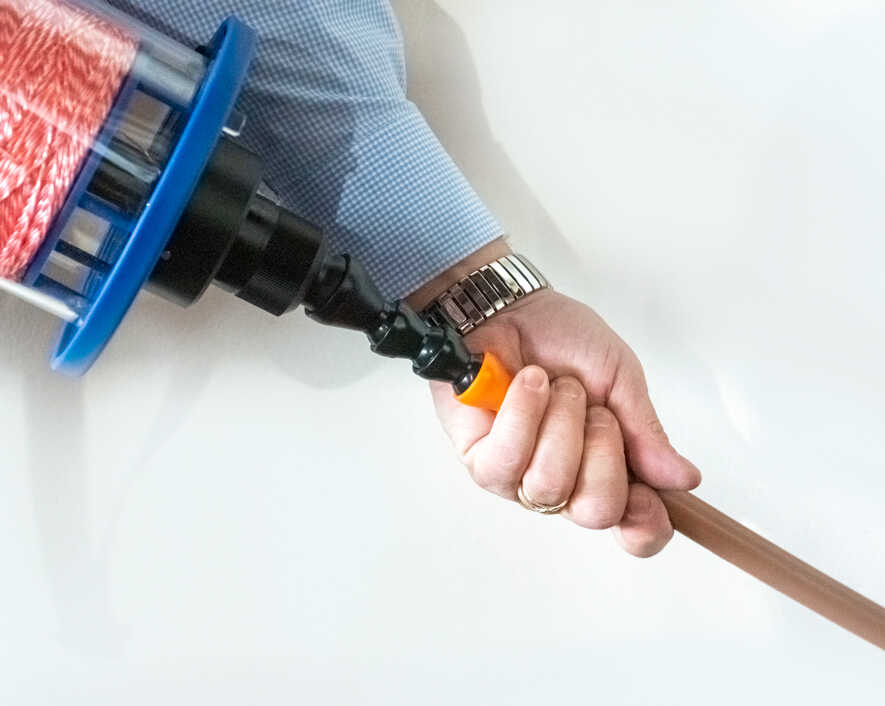

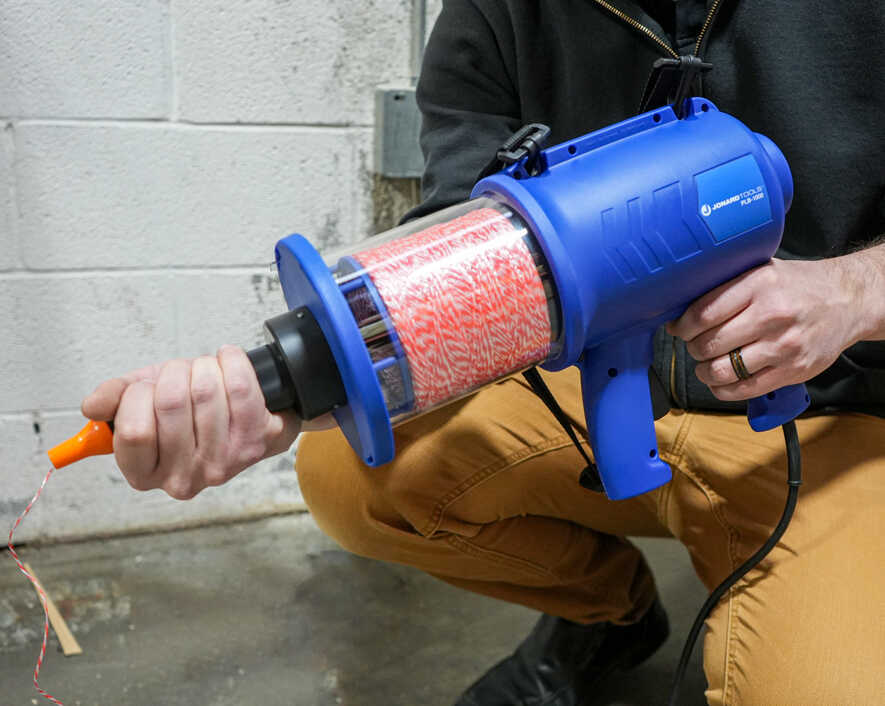

Designed to blow or suck pull line through 3/4" - 2" (18-50 mm) conduit for cable pulling, this pull line blower is perfect for running wire or cable through conduits multiple times a day. With its unique design, it makes short work of bends and kinks in conduit, saving a huge amount of time compared to mule tape or jet line. This pull line blower also features the following:



Features:

  • Blows or sucks pull line without the need for a compressor
  • For all commercial and residential pipe work with internal diameters from 3/4" - 2" (18 mm - 50 mm)
  • Lightweight and ergonomic for superior accessibility, even in confined spaces
  • Works great on flexible conduit
  • Saves a tremendous amount of time compared to mule tape or jet line

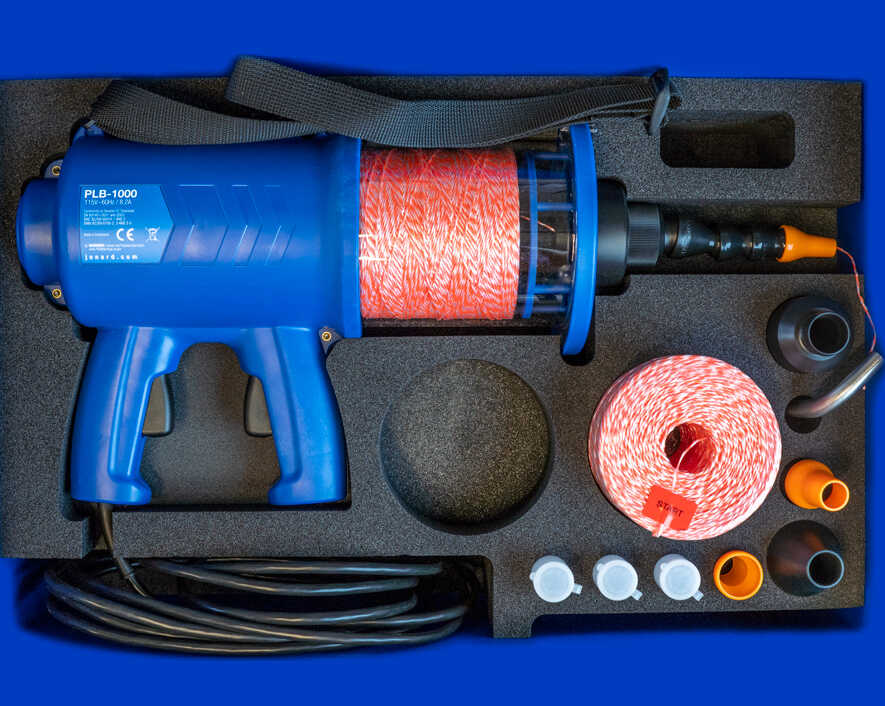

Kit Includes:

  • (1) PLB-1000 Pull Line Blower (aka Stringing Gun)
  • (2) Pull line rolls ( 1 mm, tensile strength approx. 24 kg, length approx. 900 m)
  • (1) Suction device
  • (1) Components set A: 2 joints ½" reducer 19/12 mm plus nozzle int.  9,5 mm
  • (1) Components set B: 3 joints ¾" nozzle int.  16 mm plus nozzle int.  19 mm
  • (1) Special nozzle black, for int.  from 25 to 50 mm
  • (1) Special nozzle with 90° angle,  ext. 12 mm
  • (3) Beads (round) of  11mm
  • (3) Beads (round) of  13mm
  • (3) Beads (round) of  16mm
  • (1) Operating Manual
Air Flow140 ft³/min (cfm) (4 m³/min)
Product Main ColorBlue
Weight8.8 lb (3995.2 g)
