- • Instantly verify the presence of POE and determine the Voltage, Amperage, and standards of Ethernet cables, supporting Passive, 802.3af, 802.3at, and 802.3bt standards
- • Ensure flawless data transmission by measuring the resistance and verifying the continuity of Cat5, Cat5e, Cat6, and Cat6a network cables
- • POE tester can be used without a battery, using the POE to power the device
- • Can be used to test the resistance and continuity of unpowered network cables using a AA battery as the power source
- • Durable construction built to withstand endure challenging environments, ensuring reliable performance wherever the job takes you
- • Compact and lightweight design with included belt clip makes this highly portable for on-the-go use

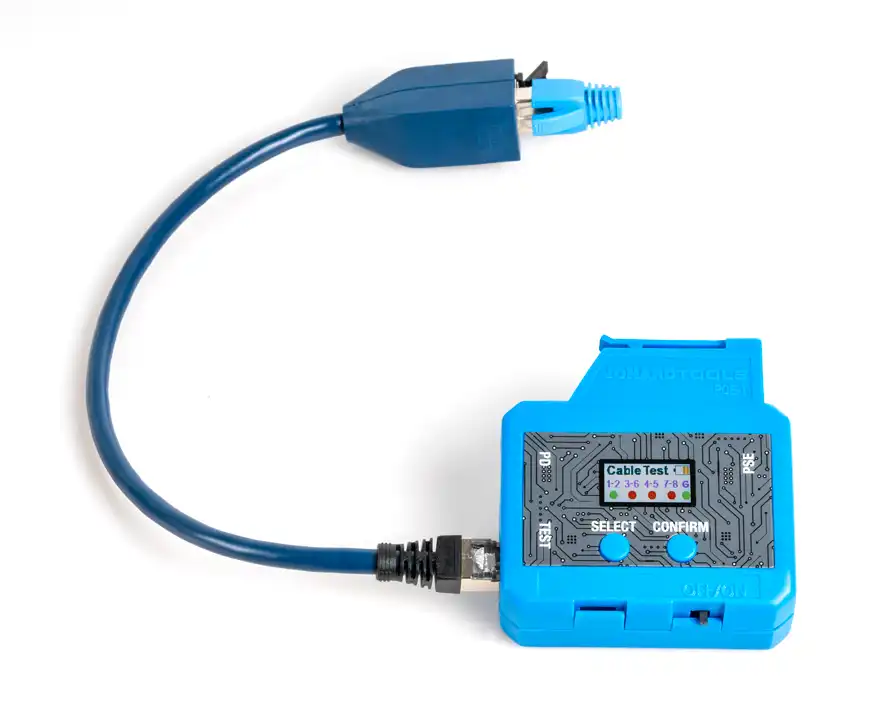

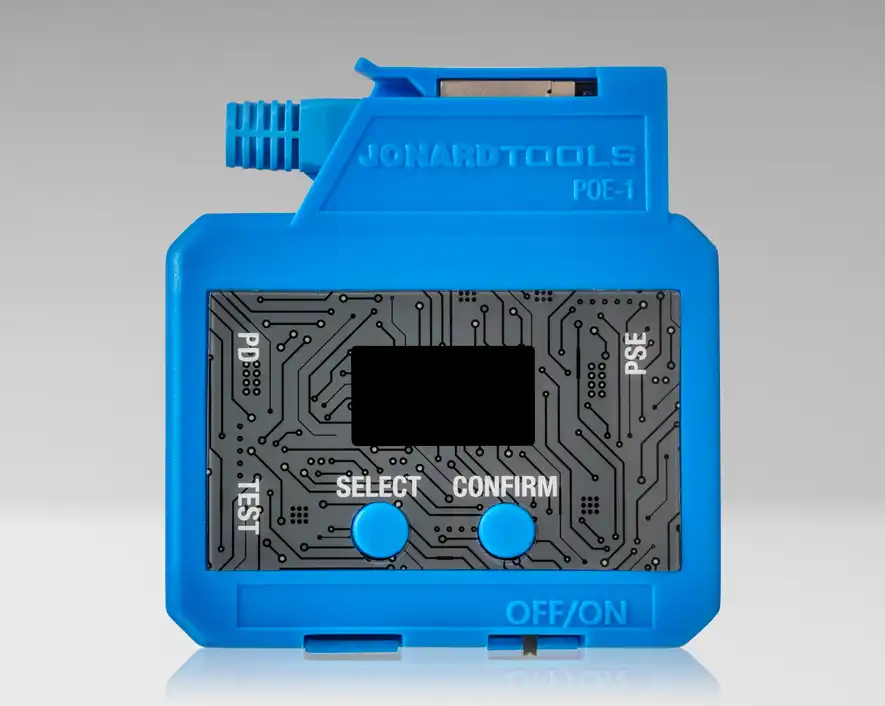

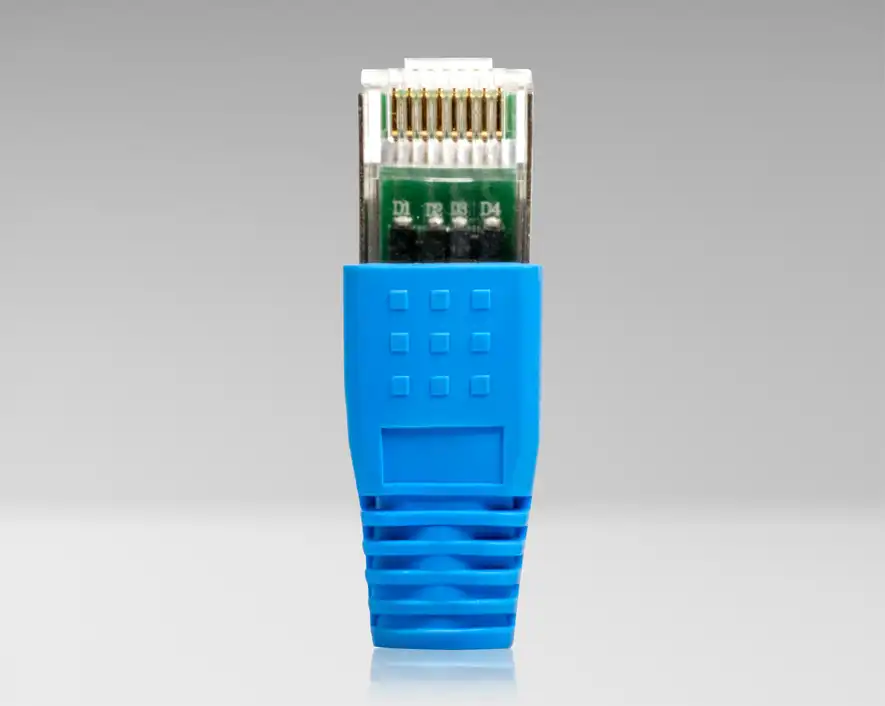

- • Includes: POE Tester, Cable Remote, and Female-Female RJ45 Adapter, Instruction Manual, and AA Battery
| Connector Type | RJ45 |
| Test Type | PoE, Continuity |
| PoE Range | 12 to 57 volts, 0 to 1500 mA |
| PoE Method | Passive (Simulated 802.3af) |
| PoE Standard | 802.3af/at |
| PoE Standards Supported | Passive, 802.3af, 802.3at, 802.3bt |
| Dimensions | 3 in x 2.9 in x 1.4 in (7.62 cm x 7.37 cm x 3.56 cm) |
| Weight | 0.24 lb (108.96 g) |
Name
Description
Size
Downloads
File
Data Sheet - PoE & Cable Testing Tool - POE-1.pdf
0.7mb
Designed to address the dual challenges of Power over Ethernet (PoE) testing and network cable continuity verification, our all-in-one PoE tester is a game-changer for network technicians and professionals.
