Jonard - PTX-KIT1DH - PTX Tool, Dfb224, 115V Batt Charg, 2 Batt, H-1000
Part number:
PTX-KIT1DH
Price:

Specifically designed to wrap or unwrap 22-24 AWG wire quickly and easily, this patented wrap/unwrap tool prevents injury to the palm by preventing repetitive motion and stresses. This wrap/unwrap tool features the following:



Features:

  • Included Bit & Sleeve Set wraps/unwraps 22-24 AWG wire, and separate bits can be purchased for other wire gauges (18-32 AWG)
  • High-powered 3700 RPM motor can handle even the heaviest gauges of wire
  • Dual-finger short-throw trigger and long handle are ergonomically certified for a comfortable experience
  • Ergonomically designed with dual-finger short-throw trigger and long handle for preventing injury

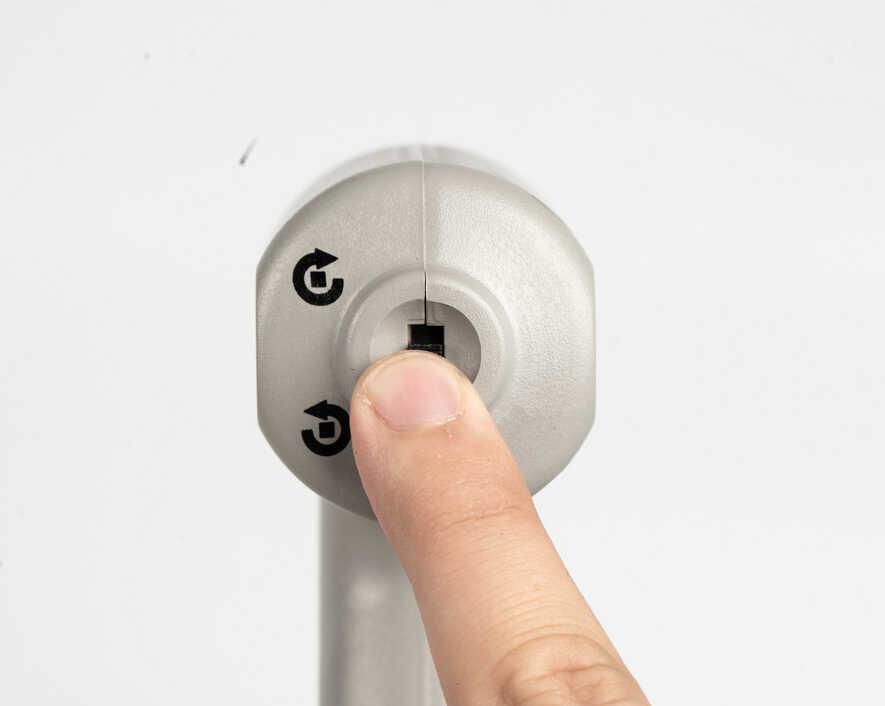

  • Rugged lightweight housing includes a low battery indicator and wrap/unwrap switch

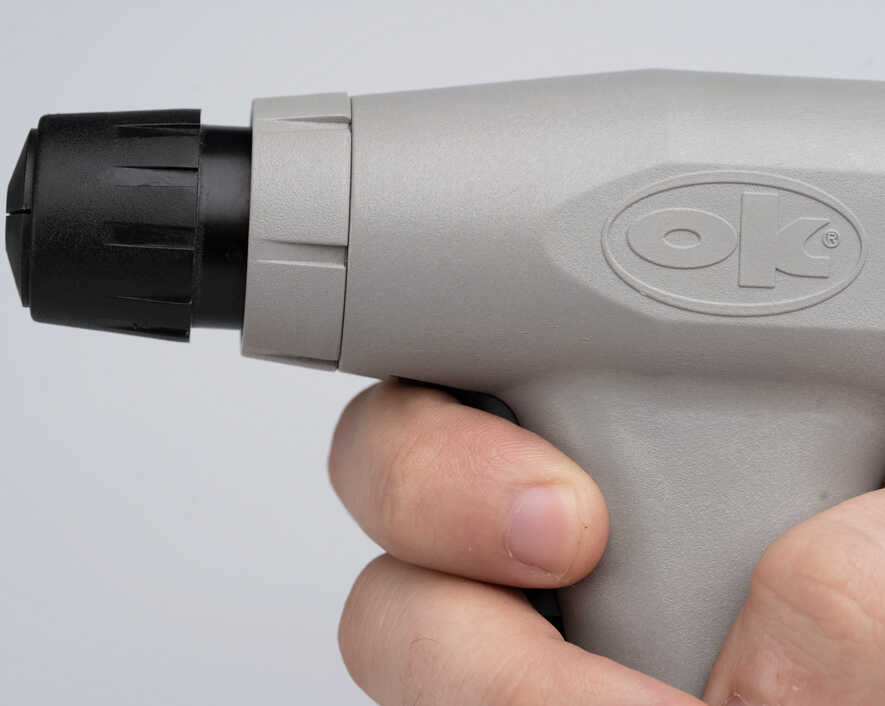

  • Permanently attached collet nut makes changing bits a cinch
  • Rated for use up to 2500 cycles/day
  • (2) Included 3.6V NiMH Battery required for operation
  • Included charger chargers 2 batteries at once
  • Rugged 5-Pocket Tool Pouch included for convenient storage
SPECIFICATIONS-

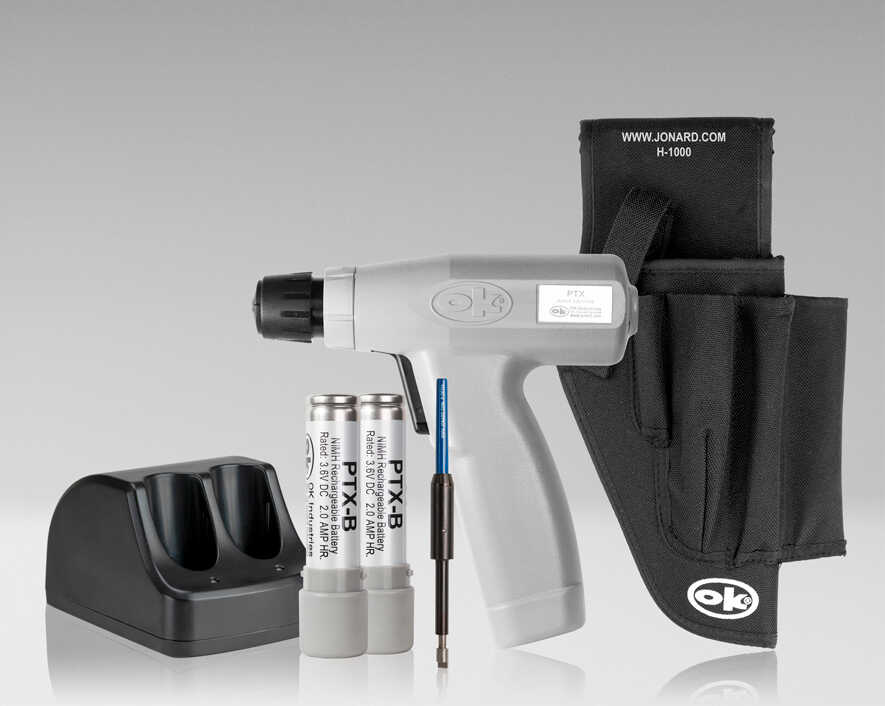

KIT INCLUDESBattery Powered Tool, Batteries, Pouch, Wrap-Unwrap Bit, 115V Charger
RPM3700
VOLTAGE3.6V (NiMH Battery)
WEIGHT3.438 lbs
Name
Description
Size
Downloads
File
Datasheet
0.3mb
File
PTX Series - Spare Parts List
0.2mb
