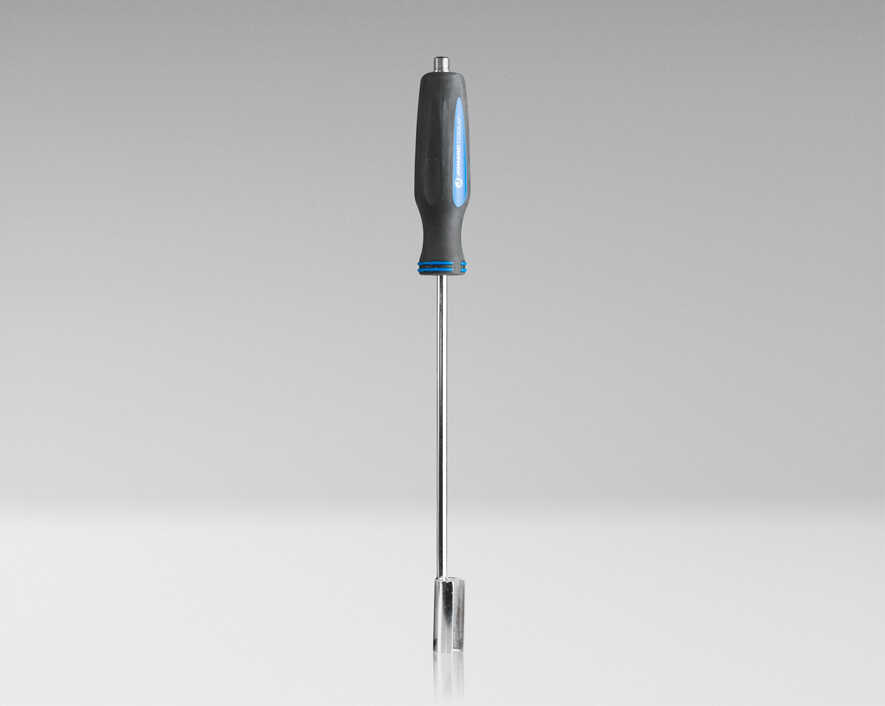

Jonard - RF-12 - F Connector Tool 12" Total Length
Part number:
RF-12
Price:
Designed to provide easy access to connectors, this 12” F Connector Tool is perfect for installing or removing F and BNC connectors in high-density locations. This tool features the following:
Features:
- 12" overall length allows you to reach connectors in hard-to-reach places and head size is 7/16"
- Ideal for use with both F and BNC connectors

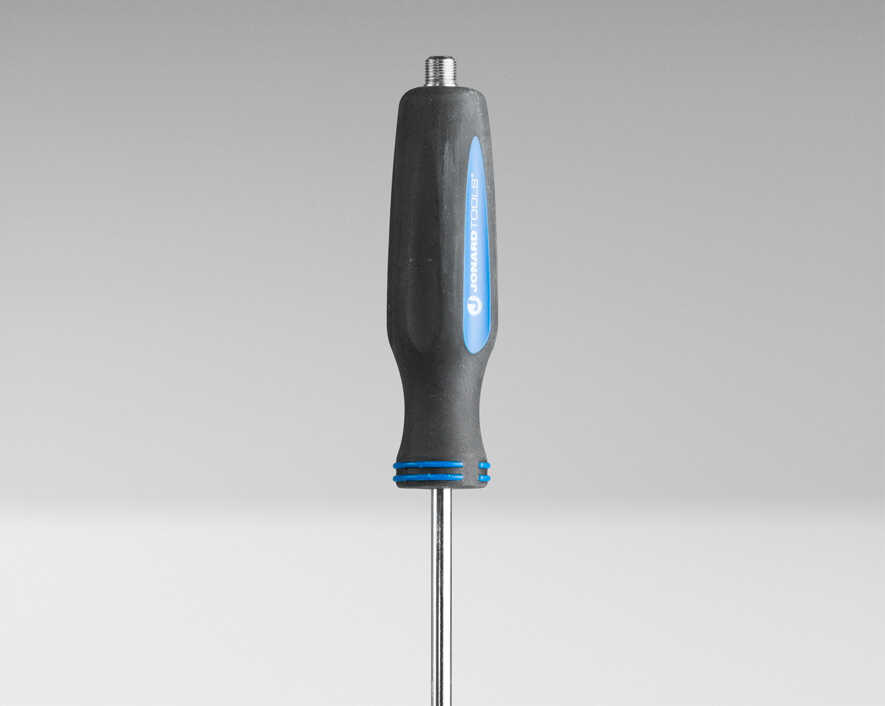

- Ergonomically designed handle provides increased comfort and leverage

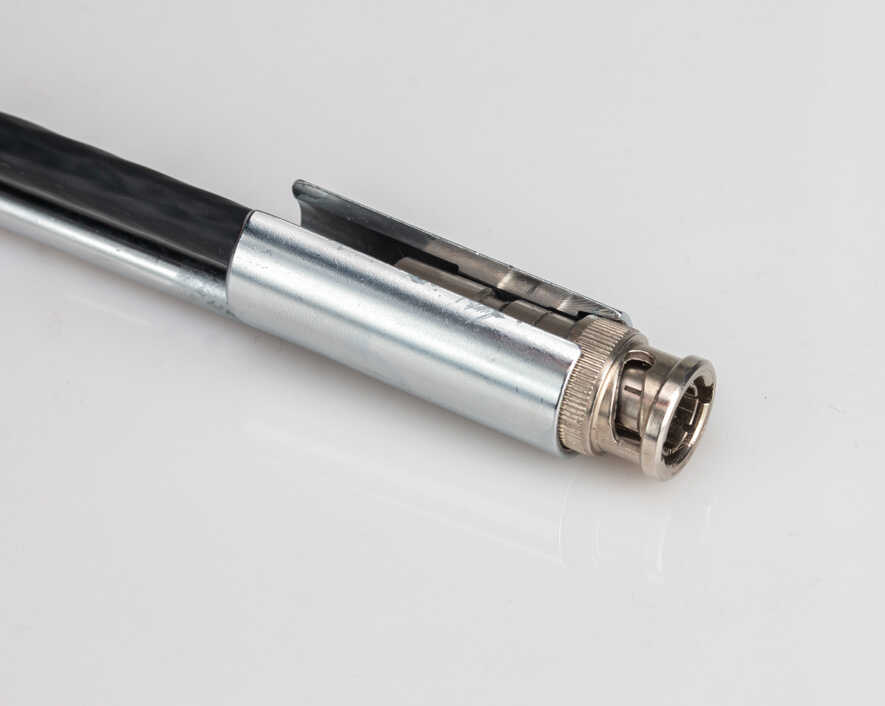

- Back of the handle an insertion device to assist in making connections
- Made from high-quality materials for maximum durability and long life
| Connector Type | BNC, F |
| Hex Size | 7/16" (11.11 mm) |

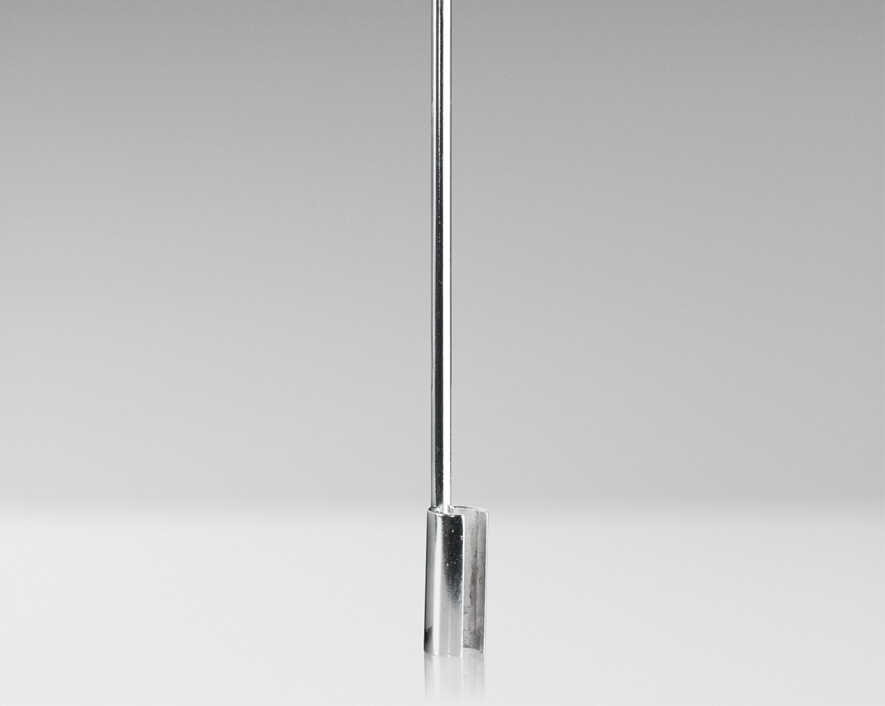

| Head Length | 1.68" (4.27 cm) |
| Shaft Length | 8" (20.32) |
| Handle Length | 4" (10.16 cm) |
| Handle Color | Black and Blue |
| Dimensions | 12" x 1.28" x 1.28" (30.48 cm x 3.25 cm x 3.25 cm) |
| Weight | 0.3 lb (138.016 g) |
Name
Description
Size
Downloads
File
Datasheet
0.9mb
