Jonard - RFX-12 - Extra Force F Connector Tool, 12" Total Length
Part number:
RFX-12
Price:

Designed with a nut on the base of the handle and a short head with a heavy duty weld, this 12” F Connector Tool is perfect for installing or removing rusted or corroded F connectors in high-density locations. This tool also features the following:



Features:

  • Head is welded using premium materials to withstand high amounts of force and torque

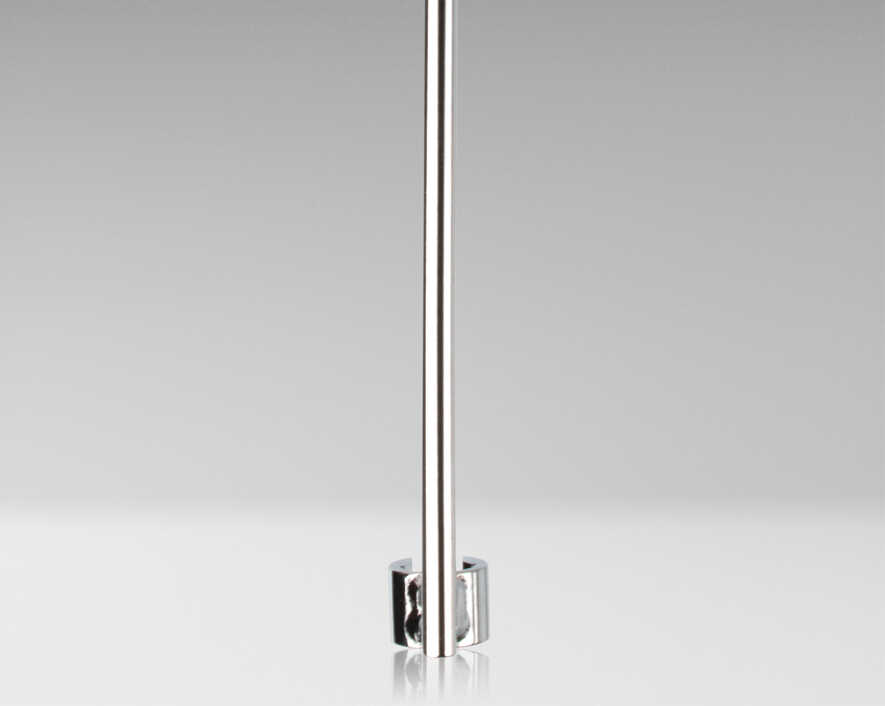

  • Short head design allows it to grasp connectors in high density locations where cables may be twisted or bent

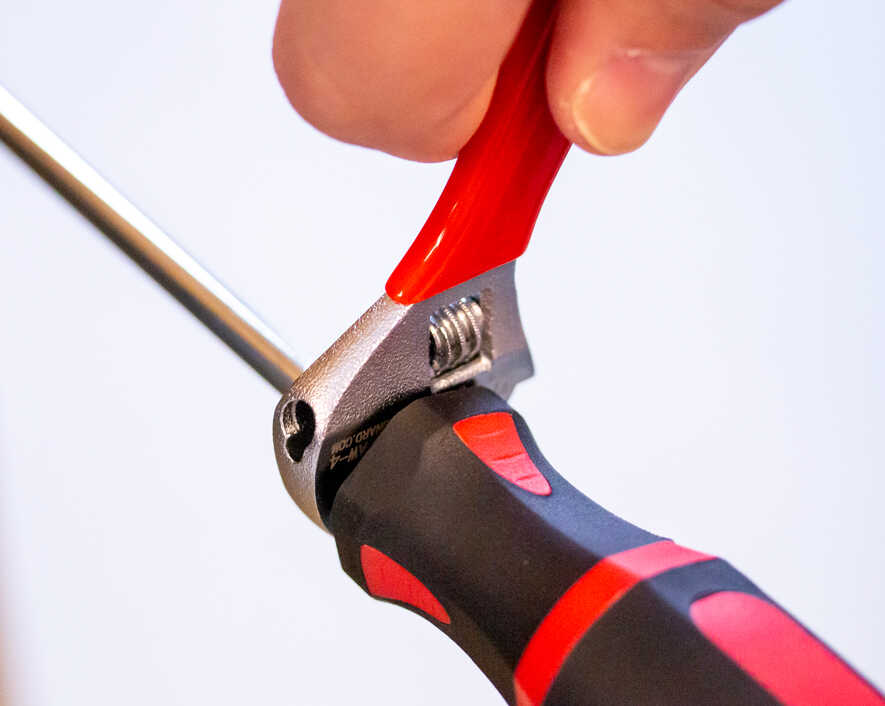

  • Nut at the base of the shaft allows it to be torqued with a wrench to remove heavily corroded or rusted F connectors

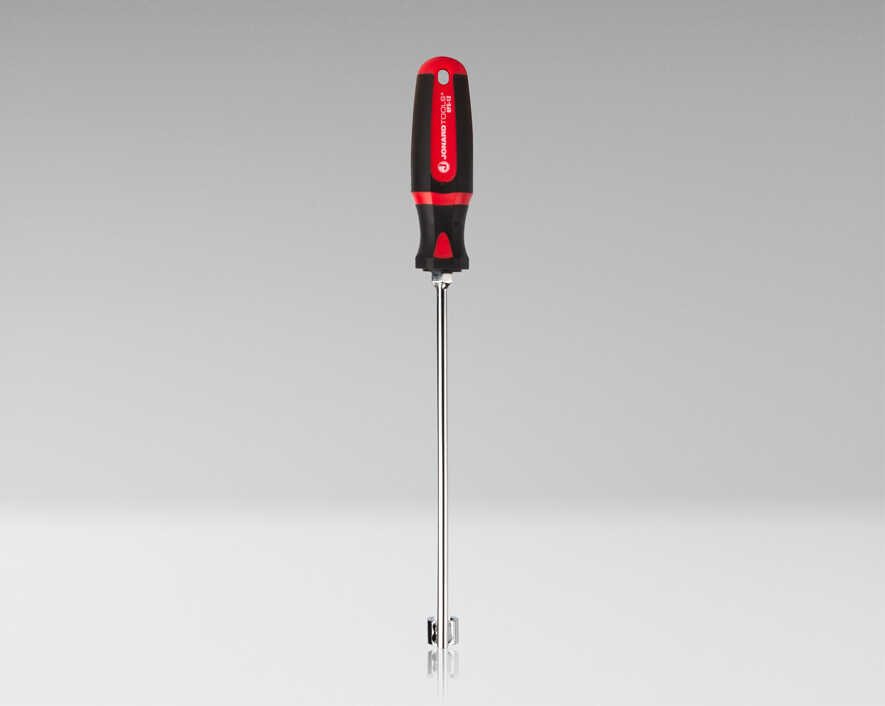

  • 12" overall length allows you to reach F connectors in hard-to-reach places

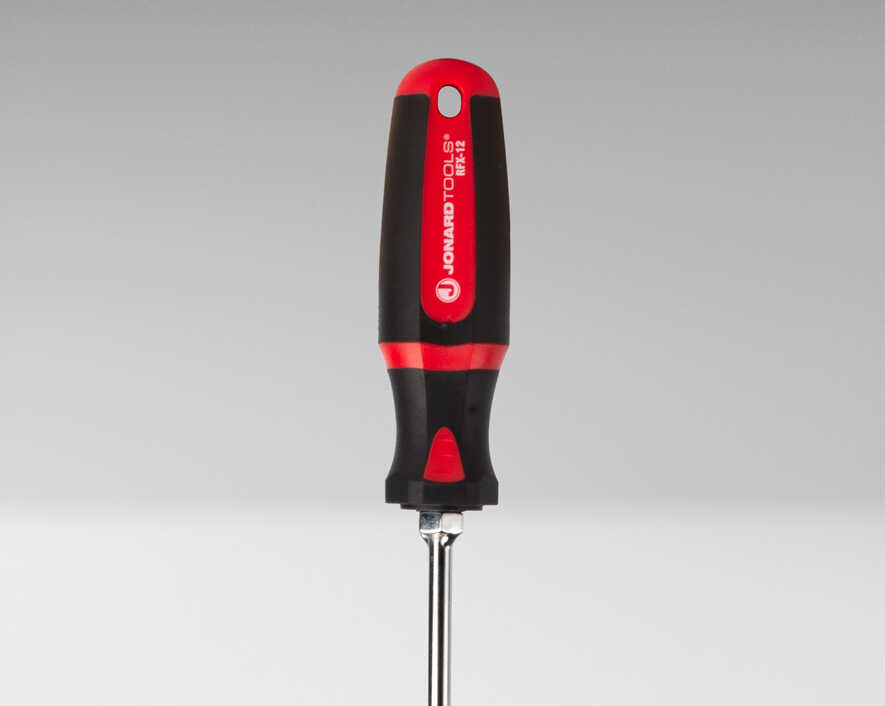

  • Ergonomically designed handle provides increased comfort and leverage
SPECIFICATIONS-
CONNECTOR TYPEF
HEX SIZE7/16” (11.11 mm)
HEAD LENGTH0.52” (1.32 cm)
SHAFT LENGTH8” (20.32 cm)
DIMENSIONS12” x 1.28” x 1.28” (30.48 cm x 3.25 cm x 3.25 cm)
WEIGHT0.26 lb (118 g)
Name
Description
Size
Downloads
File
Datasheet
0.8mb
