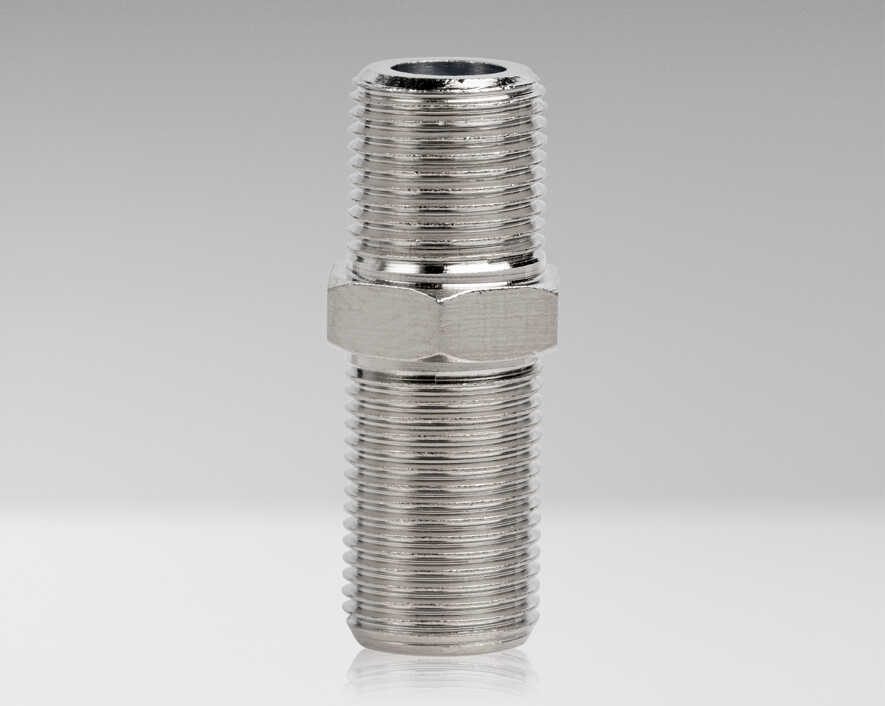

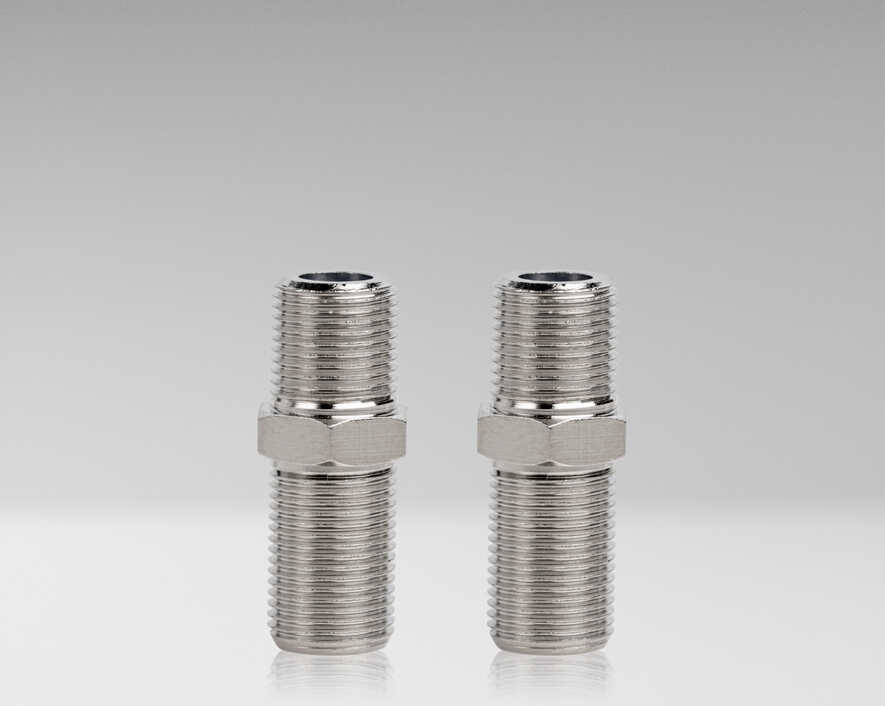

Jonard - RG-F81 - CATV Female Splice Adapters (Pack of 2)
Part number:
RG-F81
Price:
These adapters are designed to join two male RG6, RG6 Quad Shield, RG59, RG59 Quad Shield CATV F connectors. These adapters also feature the following:
Features:
- For performance up to 3.0 GHz
- Gold-plated contacts for maximum performance
- For use with male RG6, RG6 Quad Shield, RG59, RG59 Quad Shield CATV F connectors
| Connector Type | F Female Splice Adapter |
| Standards | IEC 60169-24 |
| Temperature Range | -40～+85℃ |
| Vibration | 100 m/s² (10～500Hz) |
| Impedence | 75 Ω |
| Frequency Range | DC～1GHz |
| Working Voltage | 170V |
| Withstand Voltage | 500V |
| Center Contact Res. | ≤ 10 mΩ |
| Outer Contact Res. | ≤ 5 mΩ |
| Insulation Res. | ≥ 1000 MΩ |
| Return Loss | ≥ 25dB |
| Insertion Loss | ≤ 0.8 dB |
| Weight | 0.02 lb (9.08 g) |
