Jonard - RJ456AUS-100 - Unshielded RJ45 Passthrough Connector for CAT6A Cable, Pack of 100
Part number:
Price:
- • 50 μin gold plating on contact surfaces provides greater signal quality than the competition
- • Tripoint-type prongs allow you to use stranded or solid CAT6e, CAT6A, and CAT7 cables

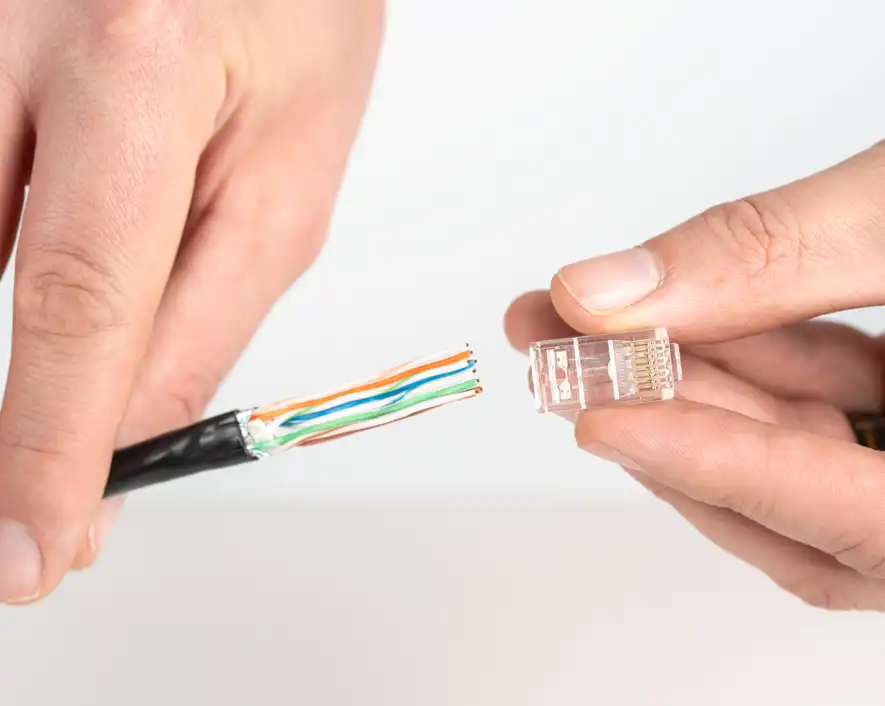

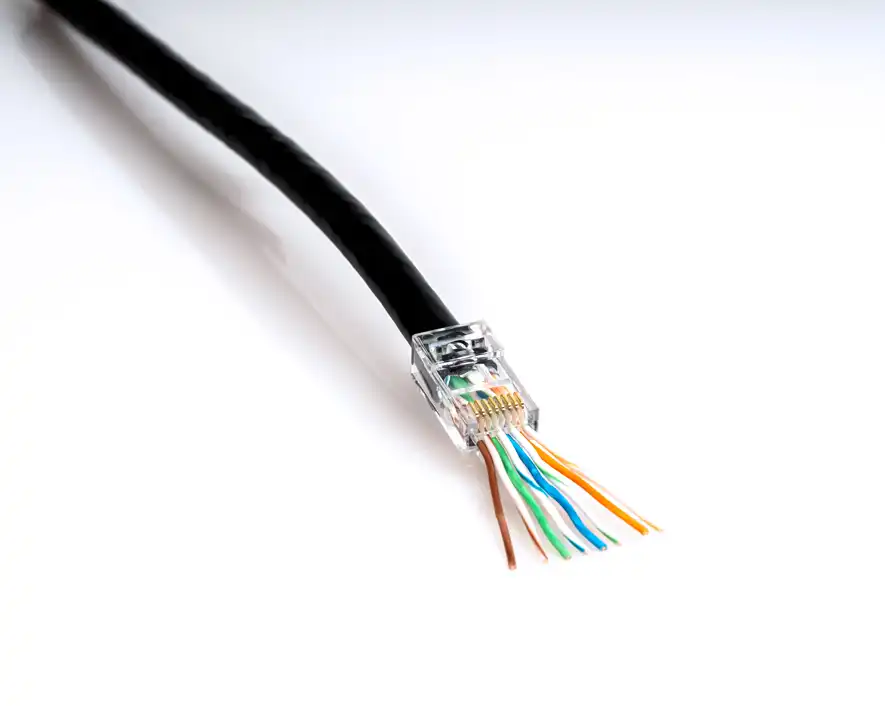

- • Simplify twisted pair network cable termination by allowing the wires to pass through the connector
- • Advantage of the pass-through feature is that you do not have to measure and cut the wires before termination, which can lead to having poor connection and signal loss

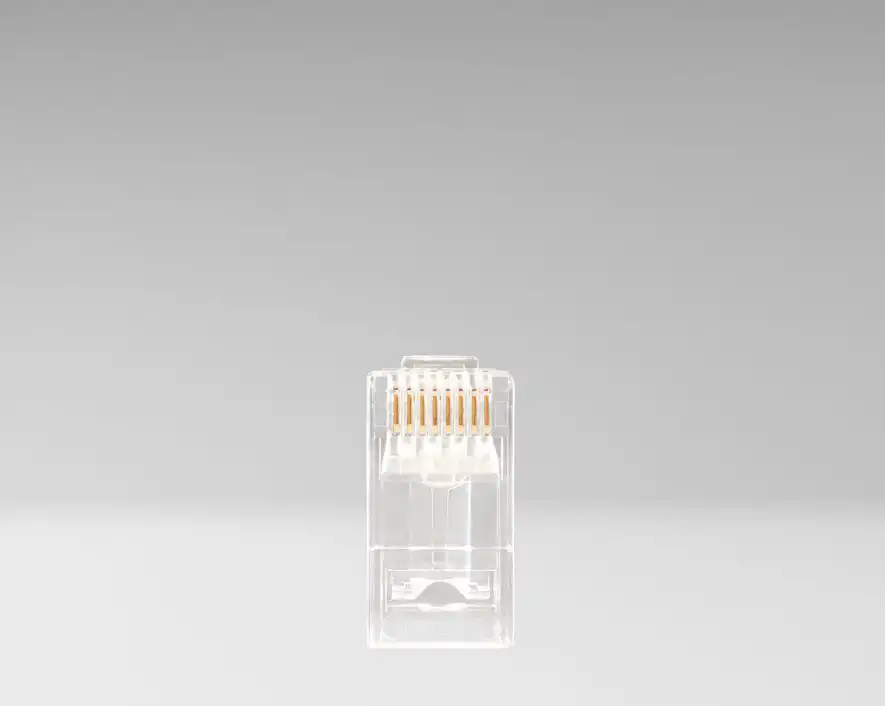

- • Clear housing allows the operator to see the wire pairs easily
- • Wire slots are enlargened for wires up to 1.3 mm in diameter
| Number of Connectors | 100 |
| Cable Type | CAT6e, CAT6A and CAT7 |
| Cable Diameter | 26 - 18 AWG (0.4 - 1.3 mm) |
| Connector Type | Three-prong RJ45 |
| Plating Thickness | 50 micro-inches |
| Standards | ANSI/TIA-568-C.2, UL 1863, FCC Part 68 subpart F |
| Operating Temperature | -10°C to 60°C |
Network installers and technicians use the Jonard Tools CAT6A RJ45 Pass-Through Connectors to terminate CAT6e, CAT6A and CAT7A network cables with a pass-through crimper. Ideal for terminating round network cables or replacing existing connectors, they are used in households and businesses.
