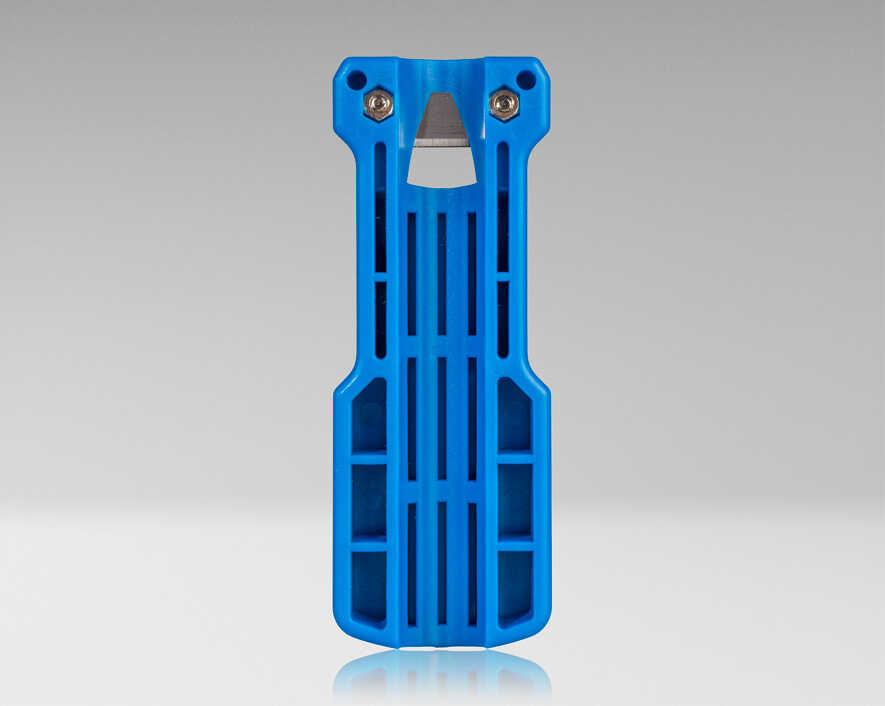

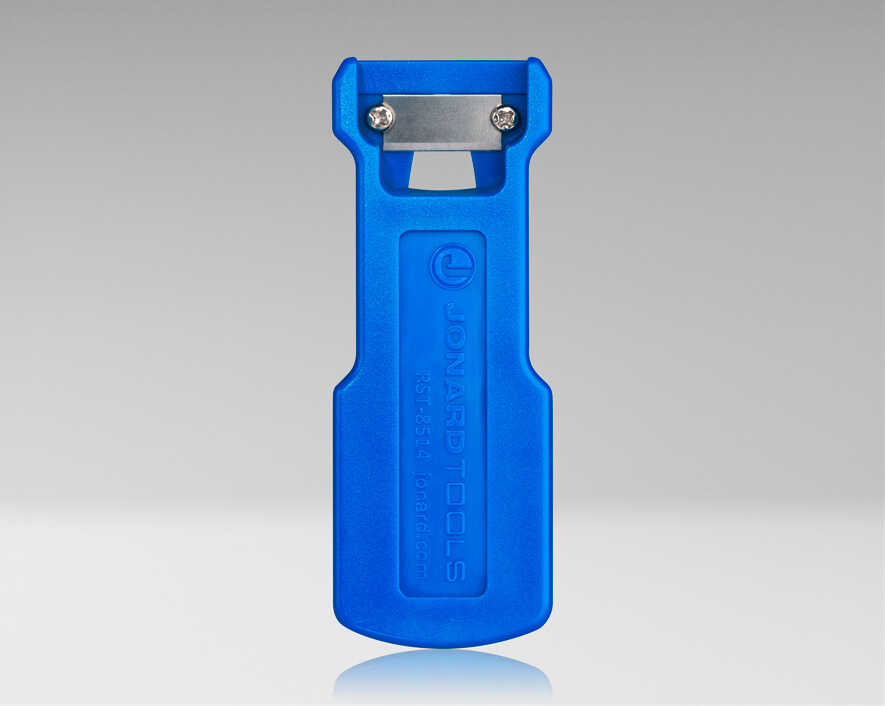

Jonard - RST-8514 - Riser Slitting Tool
Part number:
RST-8514
Price:

Designed to shave a longitudinal access window in round FTTH riser cables and microducts for mid-span access. This riser slitting tool is perfect for making access windows on cables 8 to 14 mm (0.33” to 0.55”) in diameter without damaging the fiber inside. This tool features the following:



Features:

  • Lightweight and narrow body can access closely spaced and surface mounted cables
  • High carbon steel blade slices through any type of FTTH cable
  • Factory-fixed blade requires no adjustments when working with different diameter cables
  • Easily replaceable blades can be purchased separately (RST-RB25 replacement blades, pack of 25)
Cut TypeSlit
Cable TypeFTTH Riser
Cable Diameter8.5 mm-14 mm (0.33"-0.55")
Dimensions4" x 1.5" x 0.625" (101.6 mm x 38.1 mm x 15.8 mm)
Weight0.08 lb (35.412 g)
