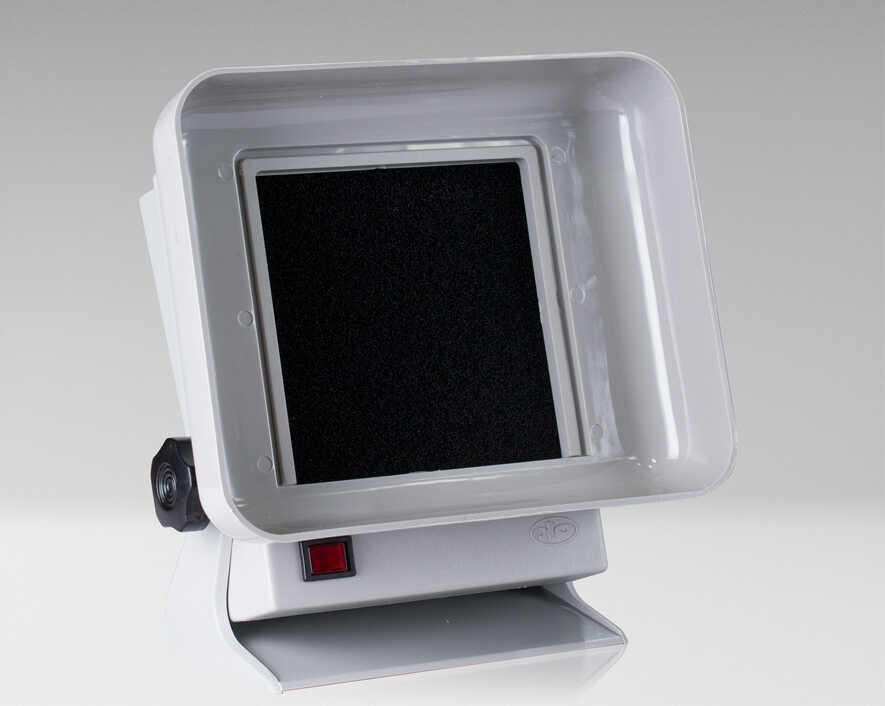

Jonard - SA-9-115 - Fume Absorber, 115V
Part number:
SA-9-115
Price:

Designed to accommodate small or limited workspaces where air purification is needed, this fume absorber is perfect for extracting irritating soldering fumes away from the work area. This fume absorber features the following:



Features:

  • Compact size, low profile, and adjustable stand make it easy to optimize the position of the fume absorber 6"-8" (15.2 cm-20.3 cm) from the working area

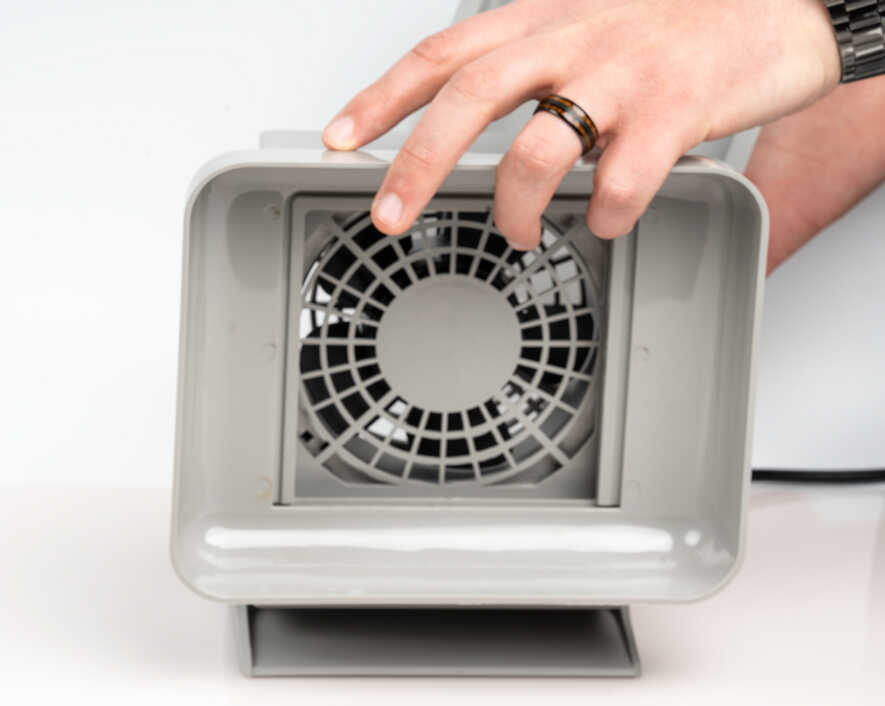

  • Aerodynamically designed hood and 3000 RPM motor quietly and efficiently remove soldering smoke and fumes
  • Thick carbon filters remove up to 80% of the odors from the air



Includes:

  • (3) carbon filters (SAF-1)
  • Adjustable stand
  • Fume absorber

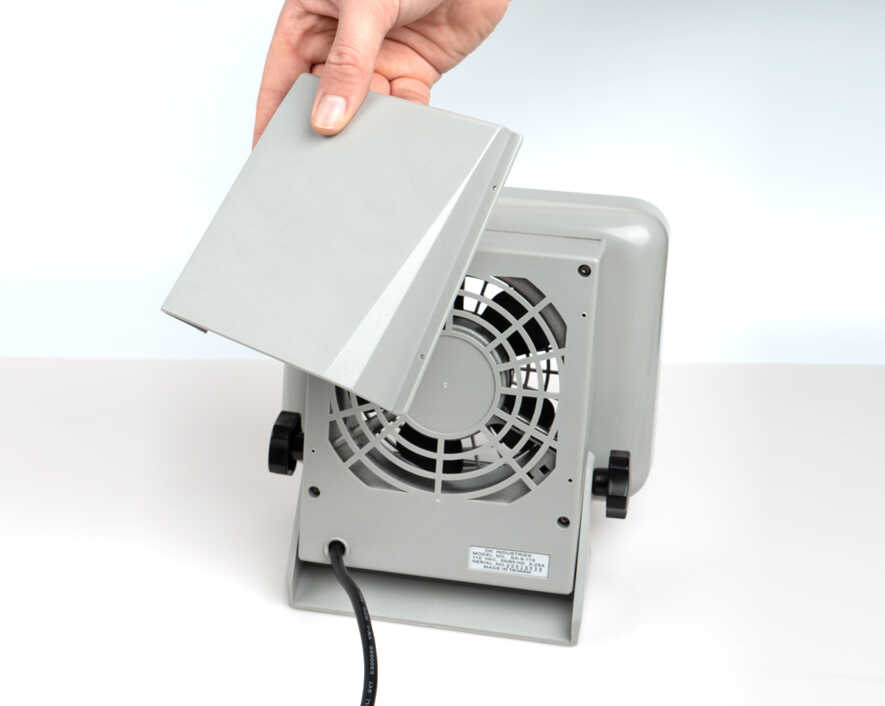

  • Exhaust air director with 4 screws
SPECIFICATIONS-
MAXIMUM AIR VOLUME105 to 126 CFM
NOISE LEVEL45-50 dB (A)
INPUT VOLTAGE115V (60 Hz)
MOTOR POWER15-17 W
MOTOR SPEED3000 RPM
ACTIVATED CARBON WEIGHT12 g
WEIGHT3.40 lb (1.54 kg)
