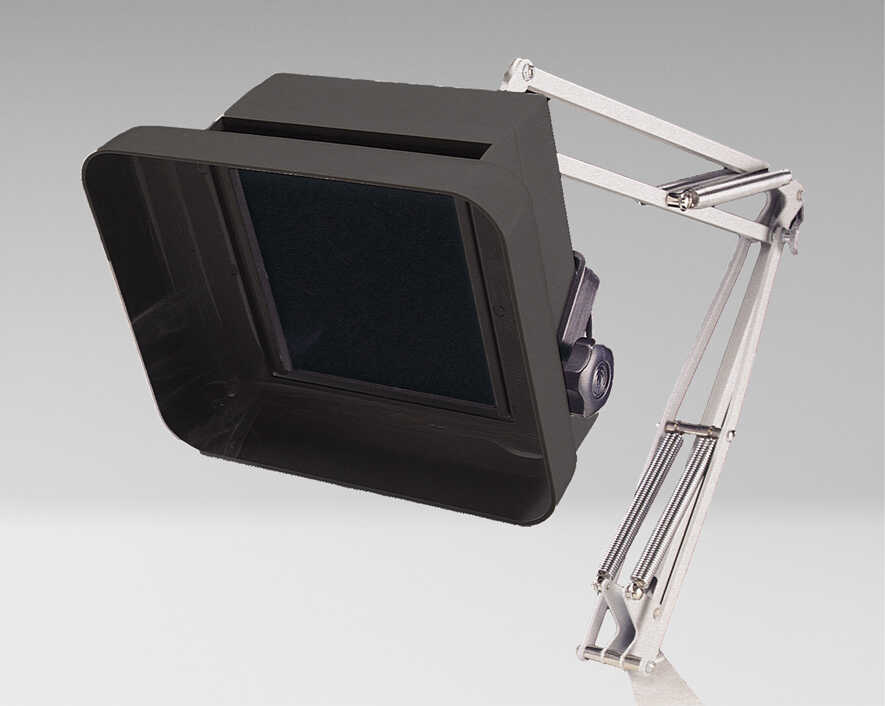

Jonard - SA-91-E - Fume Absorber, ESD Arm Mounted
Part number:
SA-91-E
Price:

Specially designed to accommodate small or limited workspaces where air purification is needed, this fume absorber is perfect for extracting irritating soldering fumes away from the work area. This fume absorber features the following:



Features:

  • ESD safe housing dissipates static for ESD-safe fume extraction
  • 24" (60.7 cm) long pivoting arm makes it easy to optimize the position of the fume absorber without taking up much space
  • Aerodynamically designed hood and 3000 RPM motor quietly and efficiently remove soldering smoke and fumes
  • Thick carbon filters remove up to 80% of the odors from the air
  • Sturdy aluminum frame and replaceable carbon filters make this absorber last a lifetime
  • Includes: Bench Mounting Clamp and (3) carbon filters (SAF-1)
Specifications-
Activated Carbon Weight12 grams
Maximum Air Volume105 to 126 CFM
Voltage115V (60Hz)
Noise Level45-50 dB (A)
FeaturesStatic-dissipative housing, Aerodynamic Hood, Compact Size, and Articulated Arm.
MaterialESD Safe Housing
Dimensions8-1/2” (H) x 8-1/4” (W) x 4” (D)
Weight8.316 lbs
Name
Description
Size
Downloads
File
Datasheet
0.5mb
File
SA-9 Series Owner's Manual
0.6mb
File
SA-91 - Assembly Instructions
0.2mb
