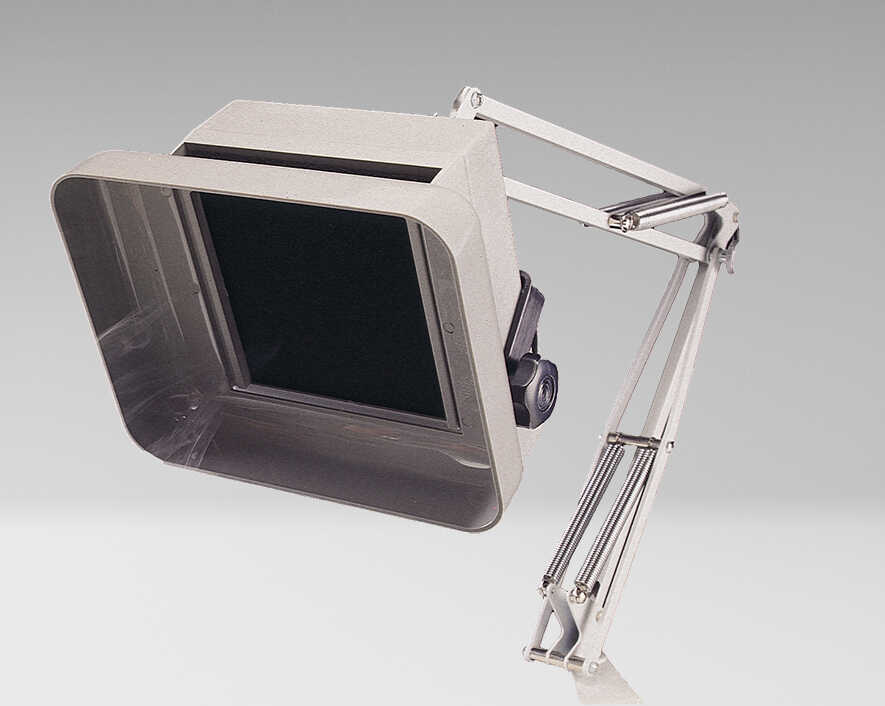

Jonard - SA-91 - Fume Absorber, Arm Mounted 115V
Part number:
SA-91
Price:

Specially designed to accommodate small or limited workspaces where air purification is needed, this fume absorber is perfect for extracting irritating soldering fumes away from the work area. This fume absorber features the following:



Features:

  • 24" (60.7 cm) long pivoting arm makes it easy to optimize the position of the fume absorber without taking up much space
  • Aerodynamically designed hood and 3000 RPM motor quietly and efficiently remove soldering smoke and fumes
  • Thick carbon filters remove up to 80% of the odors from the air
  • Sturdy aluminum frame and replaceable carbon filters make this absorber last a lifetime
  • Includes: Bench Mounting Clamp and (3) carbon filters (SAF-1)
Maximum Air Volume105 to 126 CFM
Noise Level45-50 dB (A)
Input Voltage115V (60 Hz)
Motor Power15-17 W
Motor Speed3000 RPM
Activated Carbon Weight12 g
Arm Length24" (60.7 cm)
Name
Description
Size
Downloads
File
SA-9 Series Owner's Manual
0.6mb
File
SA-91 - Assembly Instructions
0.2mb
