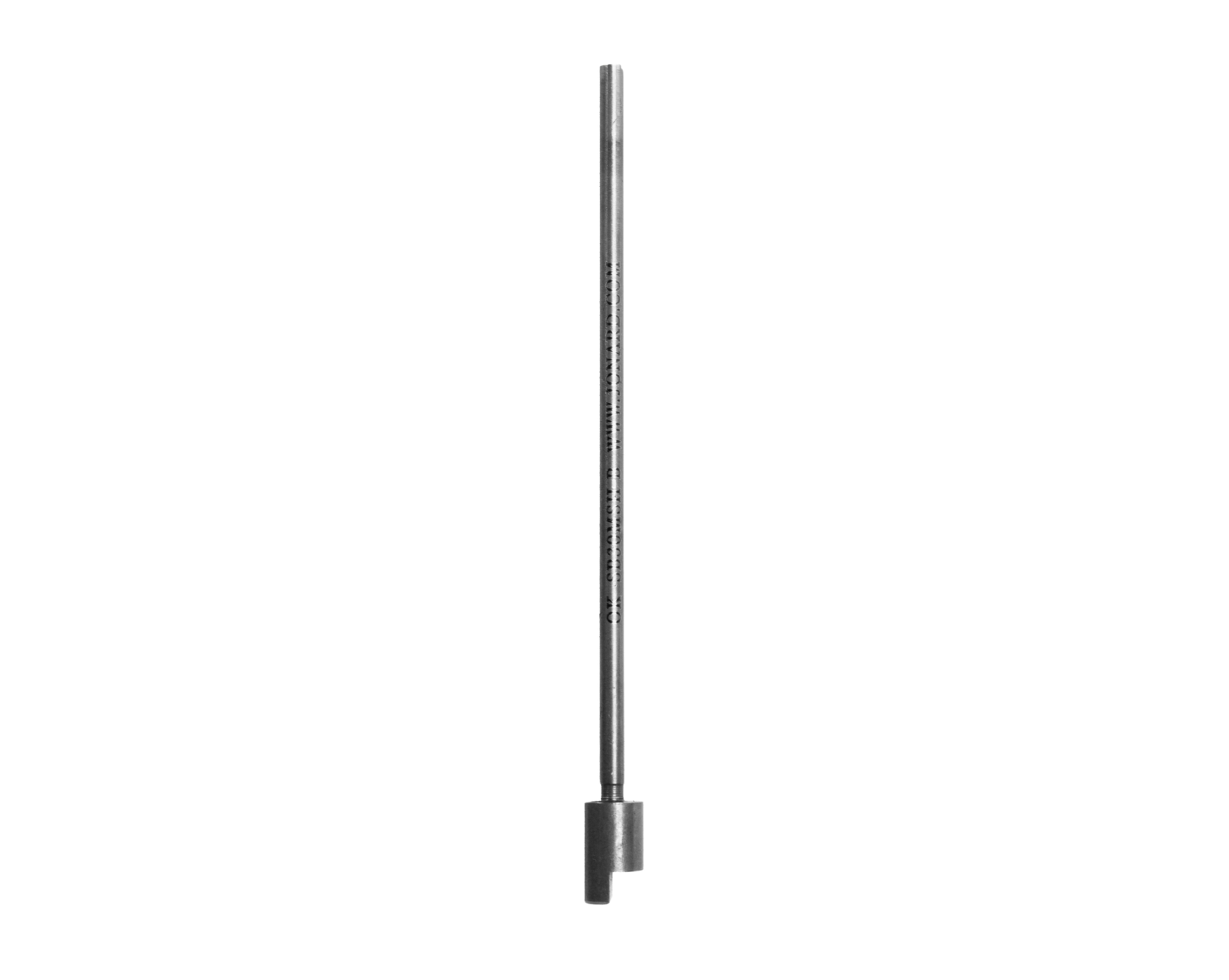

Jonard - SB30MSH-B - Wire Wrapping Bit, 30 Awg
Part number:
SB30MSH-B
Price:
Fully compatible with any make or model of wire wrapping tools, this 3" modified wire wrapping bit is perfect for wrapping 30 AWG wire around binding posts when used in conjunction with a wire wrapping tool.
Features:
- Provides one and a half turns of insulation per wire wrap, increasing the mechanical stability the wrap
- Recommended for use on 0.025" (0.63 mm) square terminals with 0.100" (2.54 mm) center-to-center of the pins
Compatible Wrap Sleeve Part: P3032 and P3032INS
| Sleeve Part No. | P3032 and P3032INS (sold separately) |
| Wrap Function | Wrap |
| Wrap Type | Modified |
| Wire Gauge | 30 AWG (0.25 mm) |
| Maximum Insulation Diameter | 0.027" (0.69 mm) |
| Minimum Terminal Diagonal | 0.031" (0.79 mm) |
| Maximum Terminal Diagonal | 0.035" (0.89 mm) |
| Terminal Hole Depth | 0.75" (19.05 mm) |
| Terminal Hole Diameter | 0.036" (0.91 mm) |
| Effective Radius | 0.064" (1.62 mm) |
| Wrap Post Size | 0.025" (0.63 mm) |
| Length | 3(7.89432cm) |
| Weight | 0.01 lb (3.632 g) |
Name
Description
Size
Downloads
File
Jonard Tools Bits & Sleeves Chart
1.7mb
