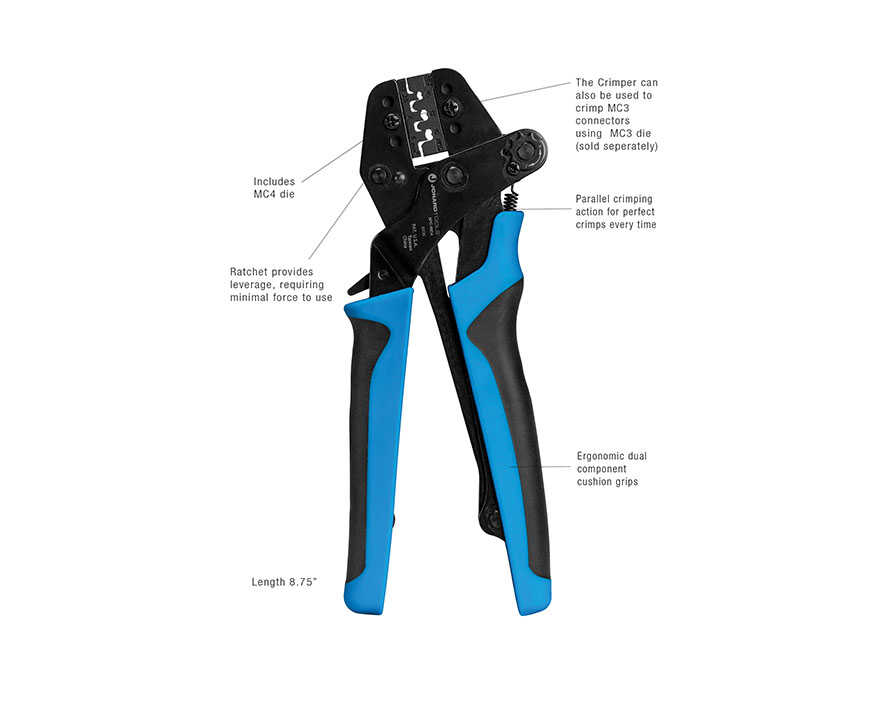

Jonard - SPC-MC4 - Crimper for Solar Panel Contacts w/ Included MC4 Die
Part number:
SPC-MC4
Price:
Designed to crimp MC4 connectors onto 14, 12, or 10 AWG (2.5 / 4.0 / 6 mm2) solar panel wire, this crimper is the perfect tool for installing and maintaining solar panel connectors. This crimper features the following:
- Parallel jaws with adjustable pressure-regulating gear and self-locking design crimp solar panel connectors perfectly every time
- Built-in ratchet makes crimping quick and easy
- Made of hardened carbon steel with a black oxide finish for strength and durability
- Dual component grip provides greater comfort and ergonomics
- Able to crimp MC3 connectors using an MC3 die (SPD-MC3), sold separately
| Application Type | MC4 Solar Panel Crimping |
|---|---|
| Connector Type | MC4 Male/Female Solar Panel Connectors, can also crimp MC3 connectors using a separate die |
| Wire Diameter | 14, 12, or 10 AWG or (2.5 / 4.0 / 6 mm²) |
| Material | Carbon Steel with Black Oxide |
| Dimensions | 8.75" x 4" x 0.88" (22.23 cm x 10.16 cm x 2.24 cm) |
| Weight | 1.32 lb (599.28 g) |
| UPC # | 811490018181 |
