Jonard - SPK-100 - Solar Panel MC3 & MC4 Crimping Tool Kit w/ Insulated Screwdrivers
Part number:
SPK-100
Price:
The Jonard Tools SPK-100 Solar Panel Crimping Tool Kit w/ Insulated Screwdrivers is designed to facilitate the installation and maintenance of solar panels. It includes a variety of tools to make installing and maintaining solar panels quick and easy.

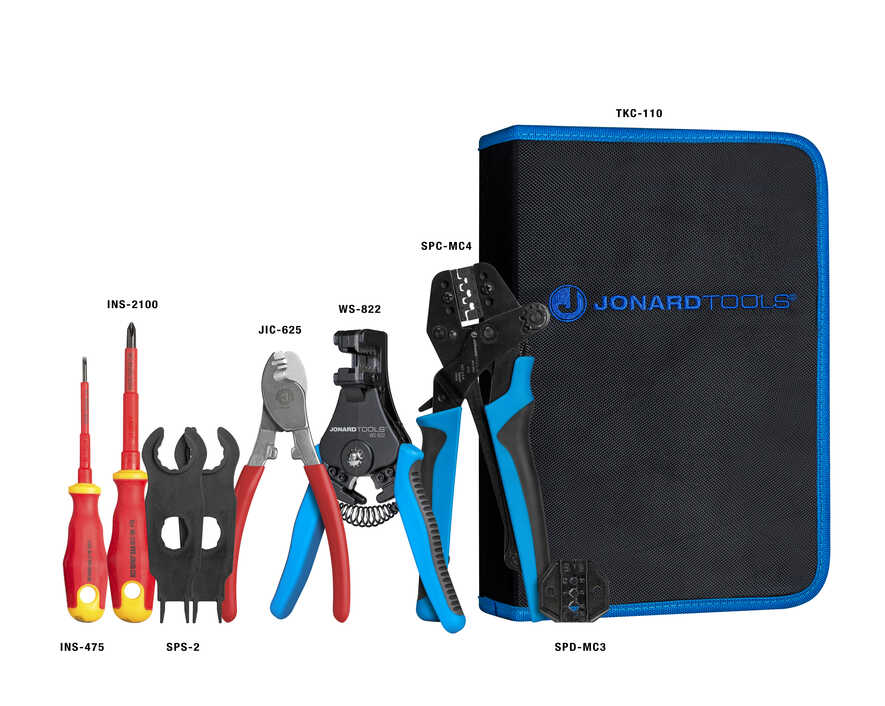

Kit includes
| SPD-MC3 | Solar Panel MC3 Crimper Die |
| SPC-MC4 | Solar Panel Crimper with Included MC4 Die |
| INS-2100 | Phillips Insulated Screwdriver, #2 x 4" |
| INS-475 | Cabinet Slotted Insulated Screwdriver, 1/8" x 3" |
| JIC-625 | Copper COAX & Network Cable Cutter |
| TKC-110 | Rugged 11 Pocket Tool Case |
| WS-822 | Wire Stripper and Cutter, 8-22 AWG |
| SPS-2 | Solar Panel Spanners for MC4 Connectors (Pack of… |
Specifications
| Application Type | Solar Panel Maintenance |
|---|---|
| Cable Diameter | 14, 12, or 10 AWG or (2.5 / 4.0 / 6 mm²) |
| Connector Type | MC3 & MC4 Male/Female Solar Panel Connectors |
| Product Dimensions | 8.25” x 12.13” x 2.75” (20.96 cm x 30.80 cm x 6.99 cm) |
| Weight | 4.3 lb |
| UPC # | 811490011526 |
