Jonard Tools - SPT-LCA3/12 - Pigtail, 3m, LC/APC, G657A1, Pack of 12 Colored Fibers

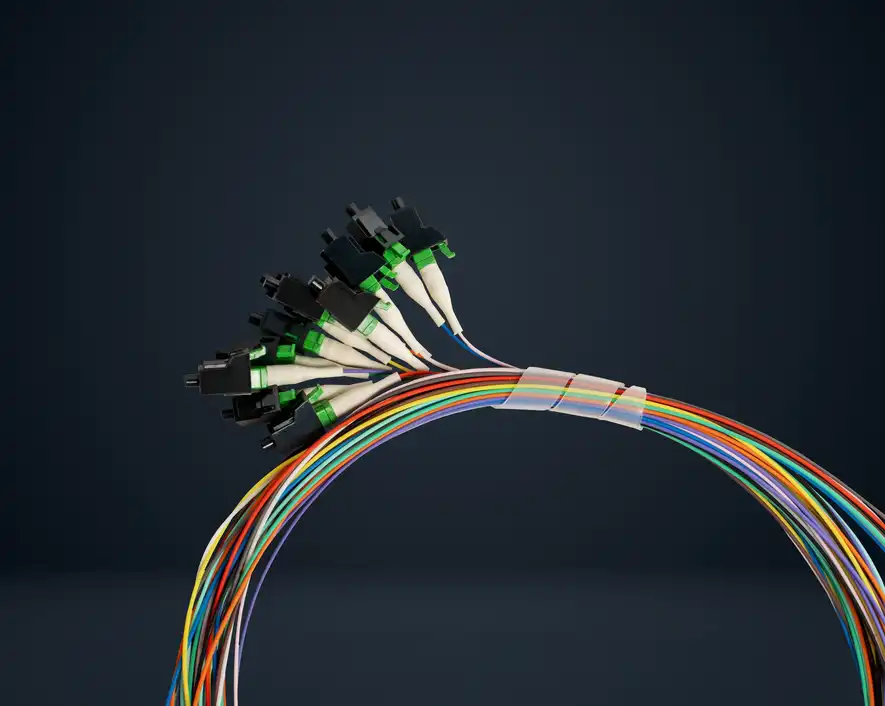

• Includes twelve color-coded pigtails following TIA-598-C standard (Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua)
• Zirconia ceramic ferrules provide ultra-low insertion loss and high repeatability
• 900 µm tight-buffered construction ideal for splicing into distribution cables or patch panels
• Each fiber tested for ≤ 0.20 dB insertion loss and ≥ 50 dB return loss
• High-strength fiber coating provides excellent flexibility and strain relief during routing and installation
| Connector Type | LC/APC |
| Fiber Type | G657A1 (OS2) |
| Length | 3 m (9.84 ft) |
| Buffer Diameter | 900 µm |
| Insertion Loss | ≤ 0.20 dB |
| Return Loss | ≥ 50 dB |
| Pack Size | 12 |
| Dimensions | 8 in x 7 in x 0 in (20.32 cm x 17.78 cm x 0 cm) |
| Weight | 0.1 lb (45.4 g) |
| UPC # | 810132439773 |

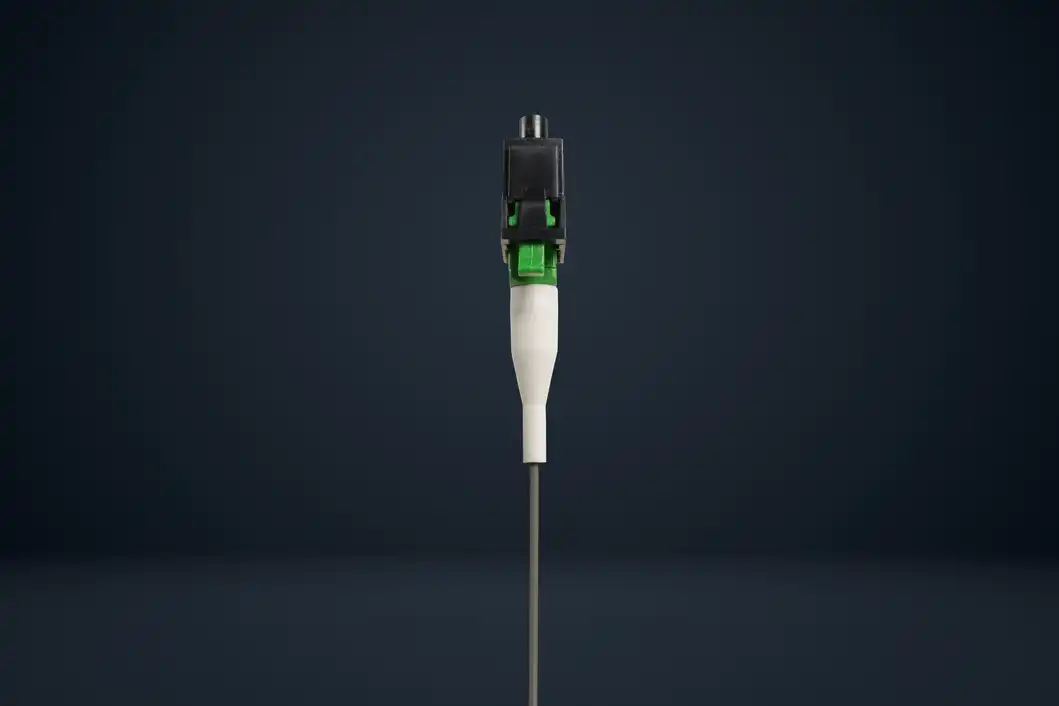

Jonard Tools’ 12-Fibre LC/APC Pigtail Pack is designed for optimal performance and straightforward installation in fibre optic networks. Each pack includes twelve colour-coded fibres with precision-polished LC/APC connectors, allowing for quick identification, fusion splicing and deployment in high-density environments. Manufactured with 900 µm tight-buffered fibres, these pigtails are durable, flexible and provide consistent optical performance. Every fibre is factory-tested for insertion and return loss to ensure reliable connections in single-mode applications such as FTTH, data centres and telecommunications networks.
