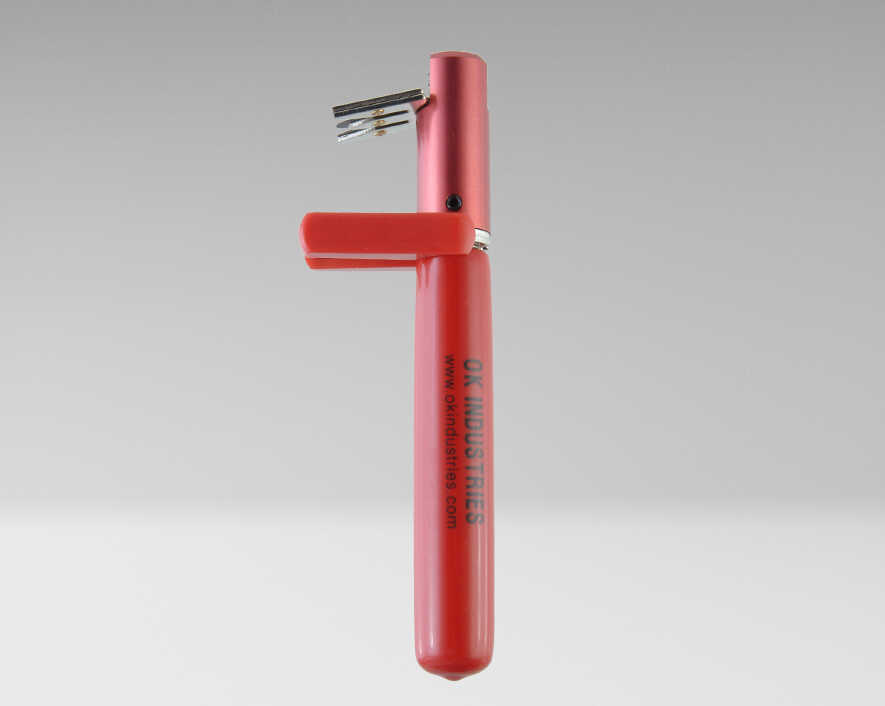

Jonard - ST-100-2426 - Cut-Strip Tool 24-26 Awg
Part number:
ST-100-2426
Price:

Designed to cut and strip off 15/16" to 1 11/16" length of wire, this cut-strip tool is the perfect tool for cutting and stripping 24-26 AWG (0.50 - 0.40 mm) wire for wire wrapping purposes. This cut-strip tool features the following:

  • Biomechanically designed for maximum work efficiency
  • Easy operation: place wire (up to 4 at once) in stripping slot, press the tool, and pull the wire(s)
  • Dual tempered spring steel blades ensure clean nick-free cutting on 24 & 26 AWG wire
  • Strip length is adjustable from 15/16" to 1 11/16"
  • Replaceable blades can be purchased separately
Wire Gauge24-26 AWG (0.50-0.40 mm)
Adjustable Strip-off Length1-15/16" to 1-11/16" (39.68 mm to 42.86mm)
Handle ColorRed
Dimensions6.5 in x 1.9 in x 1.65 in (16.51 cm x 4.83 cm x 4.19 cm)
Weight0.19 lb (85.352 g)
UPC #811490010154
