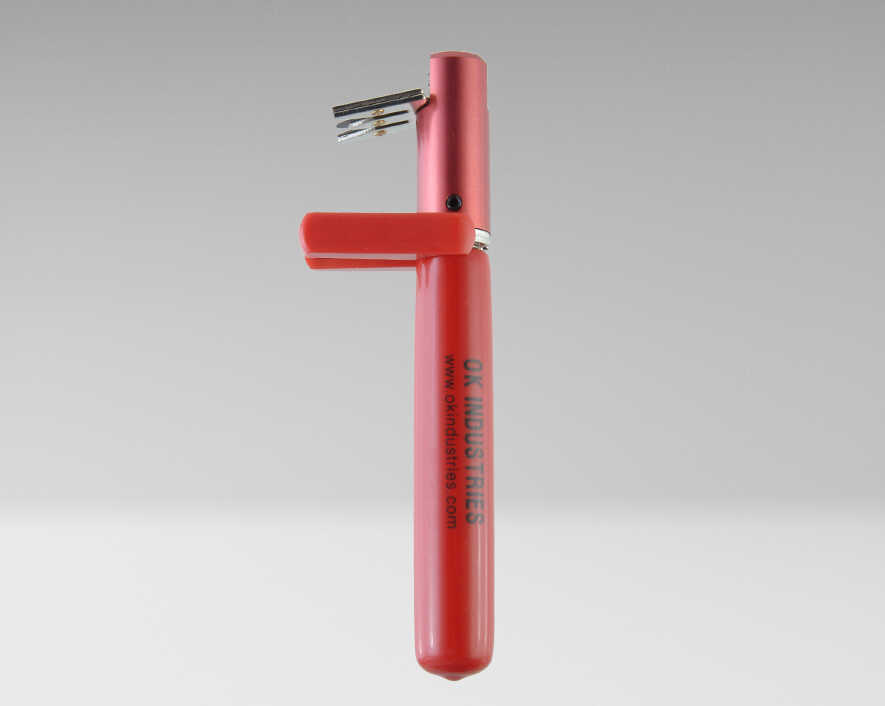

Jonard - ST-100-2830 - Cut-Strip Tool 28-30 Awg
Part number:
ST-100-2830
Price:

Designed to cut and strip off 7/16" to 1 1/8" length of wire, this cut-strip tool is the perfect tool for cutting and stripping 28-30 AWG (0.32 - 0.25 mm) wire for wire wrapping purposes. This cut-strip tool features the following:

  • Biomechanically designed for maximum work efficiency
  • Easy operation: place wire (up to 4 at once) in stripping slot, press the tool, and pull the wire(s)
  • Dual tempered spring steel blades ensure clean nick-free cutting on 28 & 30 AWG wire
  • Strip length is adjustable from 7/16" to 1 1/8"
  • Replaceable blades SB-2830 can be purchased separately
Wire Gauge28-30 AWG (0.32-0.25 mm)
Adjustable Strip-off Length7/8" to 1-1/8" (22.22 mm to 28.57 mm)
Handle ColorRed
Dimensions5.67 in x 1.92 in x 1.65 in (14.41 cm x 4.88 cm x 4.19 cm)
Weight0.17 lb (78.996 g)
UPC #811490010161
