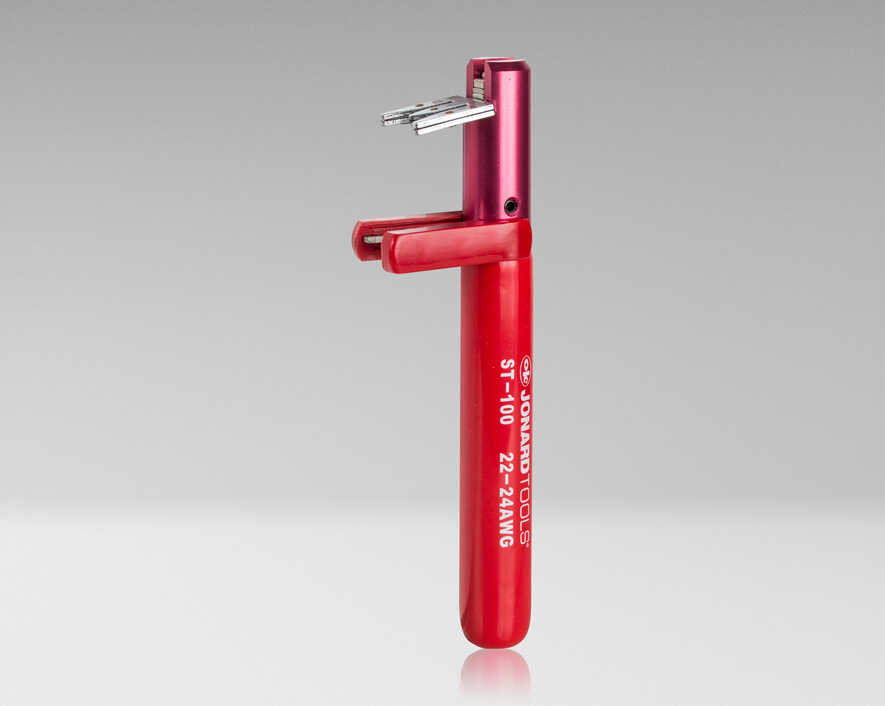

Jonard - ST-100 - Cut-Strip Tool 22-24 Awg
Part number:
ST-100
Price:

Designed to cut and strip off 5/16” to 9/16” length of wire, this cut-strip tool is the perfect tool for cutting and stripping 22-24 AWG (0.65-0.50 mm) wire for wire wrapping purposes. This cut-strip tool features the following:

  • Biomechanically designed for maximum work efficiency
  • Easy operation: place wire (up to 4 at once) in stripping slot, press the tool, and pull the wire(s)
  • Dual tempered spring steel blades ensure clean nick-free cutting on 22 & 24 AWG wire
  • Strip length is adjustable from 5/16” to 9/16”
  • Replaceable blades can be purchased separately
Wire Gauge22-24 AWG (0.65-0.50 mm)
Adjustable Strip-off Length1 5/16" to 1 9/16" (33.33 mm to 39.68 mm)
Handle ColorRed
Dimensions6.5 in x 1.9 in x 1.65 in (16.51 cm x 4.83 cm x 4.19 cm)
Weight0.19 lb (84.444 g)
UPC #811490010147
Name
Description
Size
Downloads
File
Datasheet
0.2mb
