Jonard - ST-300 - Precision Fiber Optic Stripper (0.18 - 0.33 mm)
Part number:
ST-300
Price:

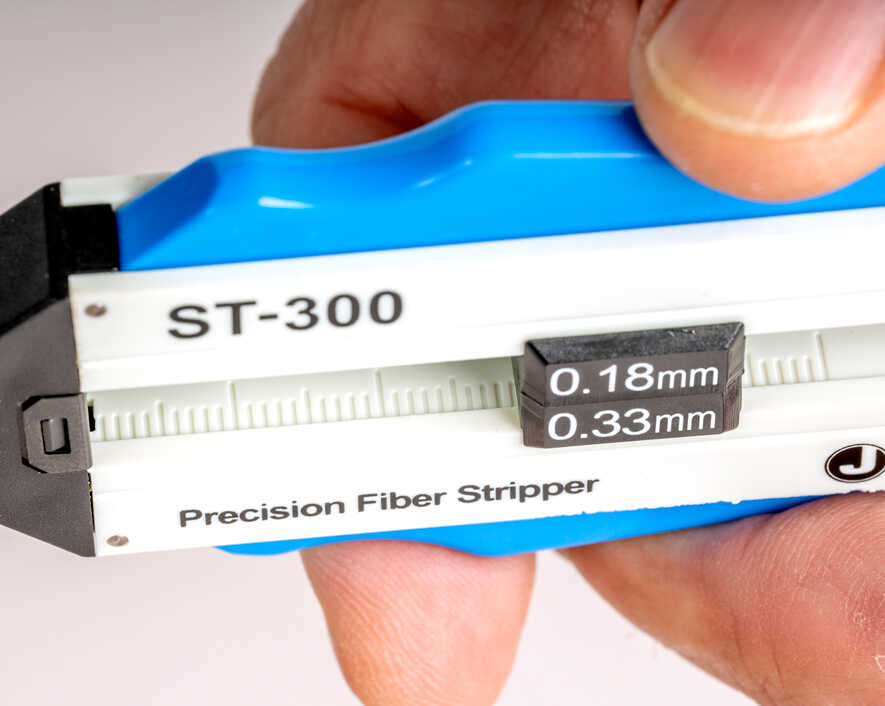

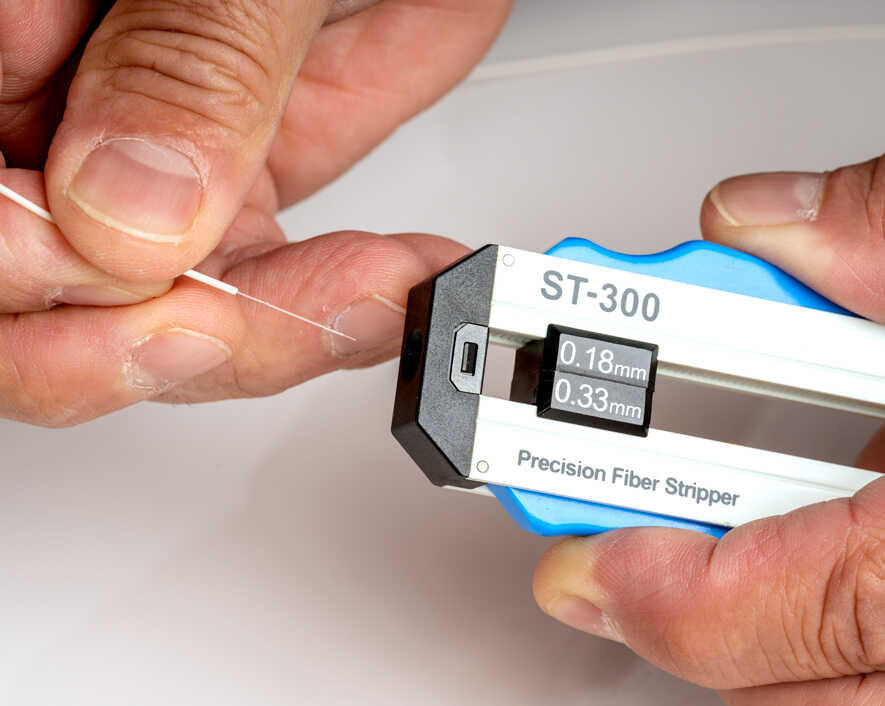

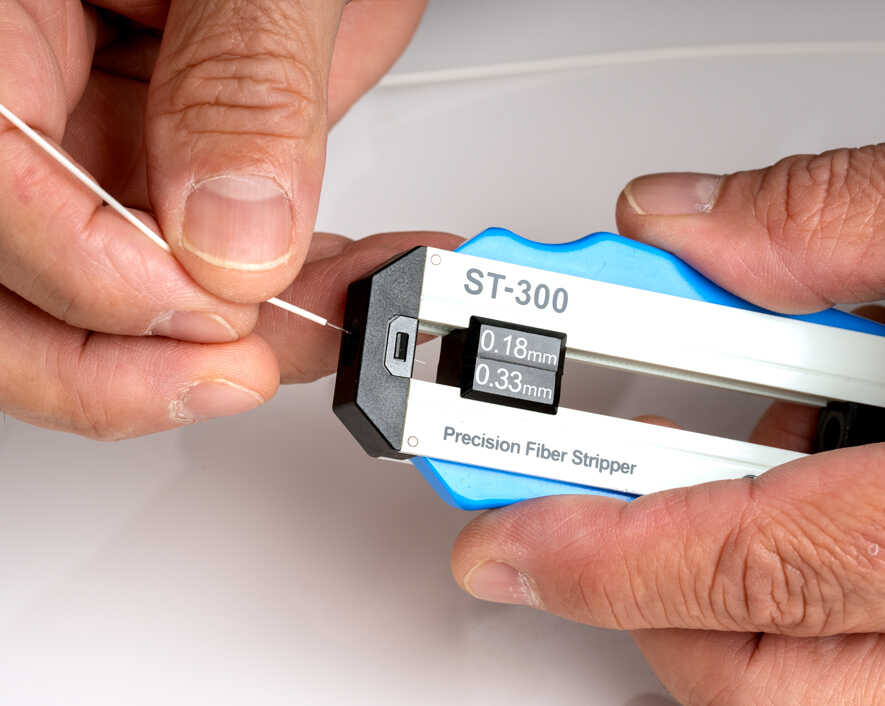

Designed for precision fiber optic stripping, this tool is perfect for stripping the 180 - 330 micron acrylate coating to expose the 125 micron glass fiber of fiber optic cables. This precision fiber stripper also features the following:

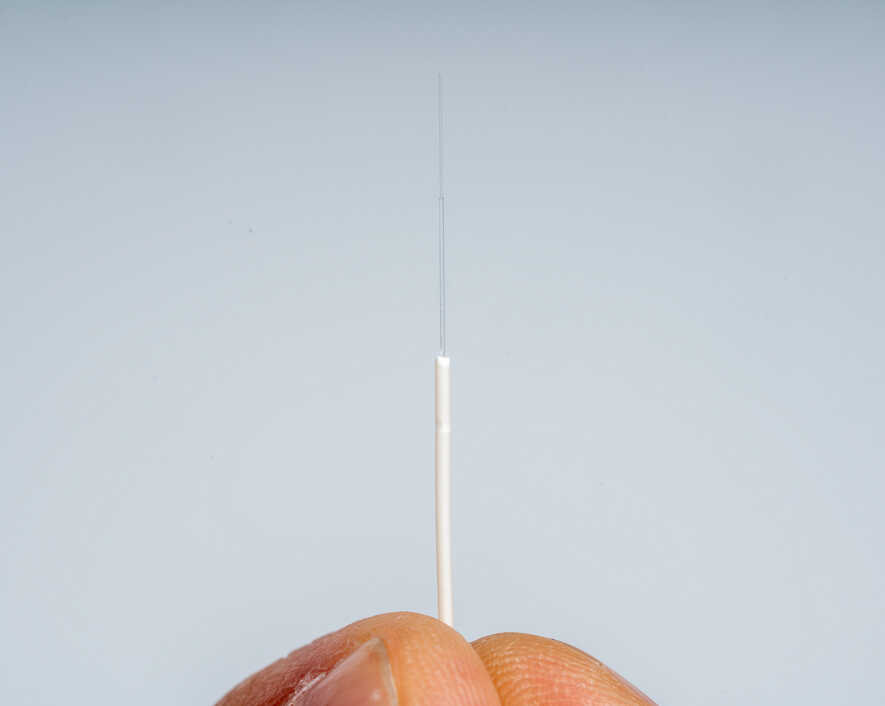

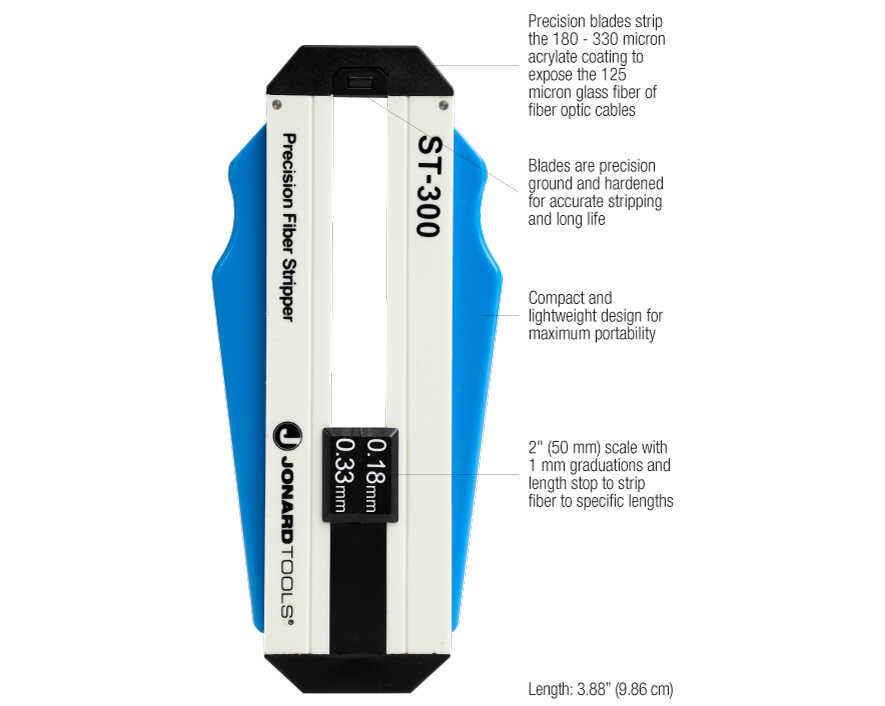

  • Precision blades strip the 180 - 330 micron acrylate coating to expose the 125 micron glass fiber of fiber optic cables
  • Blades are precision ground and hardened for accurate stripping and long life
  • 2" (50 mm) scale with 1 mm graduations and length stop to strip fiber to specific lengths
  • Compact and lightweight design for maximum portability

NOTE: Clean the stripping hole periodically to avoid acrylate coating build-up.

Strip Diameter0.0071" - 0.13" (0.18 - 0.33 mm)
Strip Length0.039" - 2.0" (1.0 mm - 50.8 mm)
Housing MaterialABS
Blade MaterialHardened Steel
Product MaterialABS
Length3(7.62cm)
Weight0.05 lb (22.7 g)
UPC #810053351901
