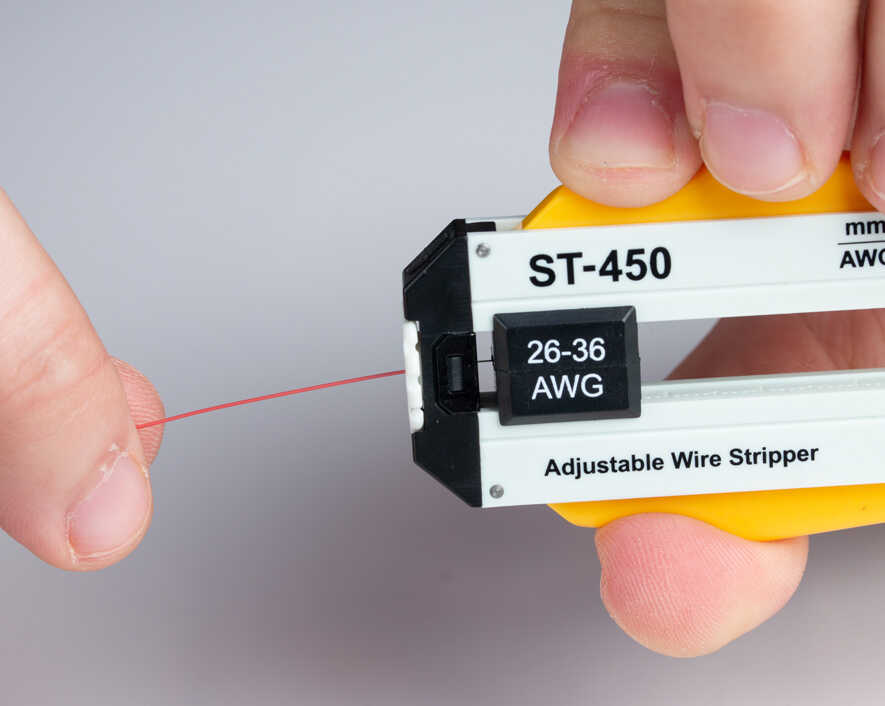

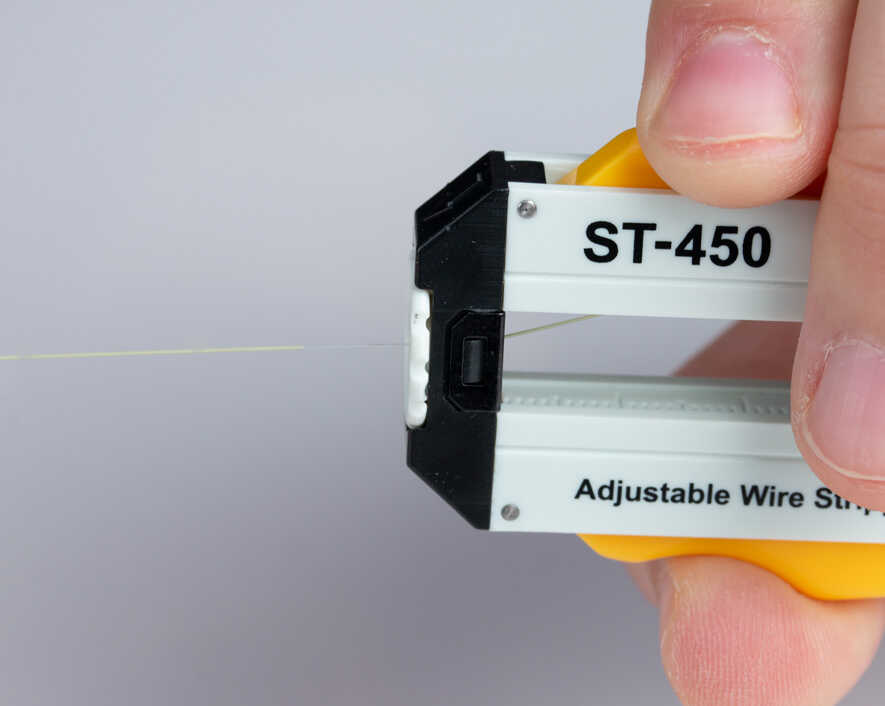

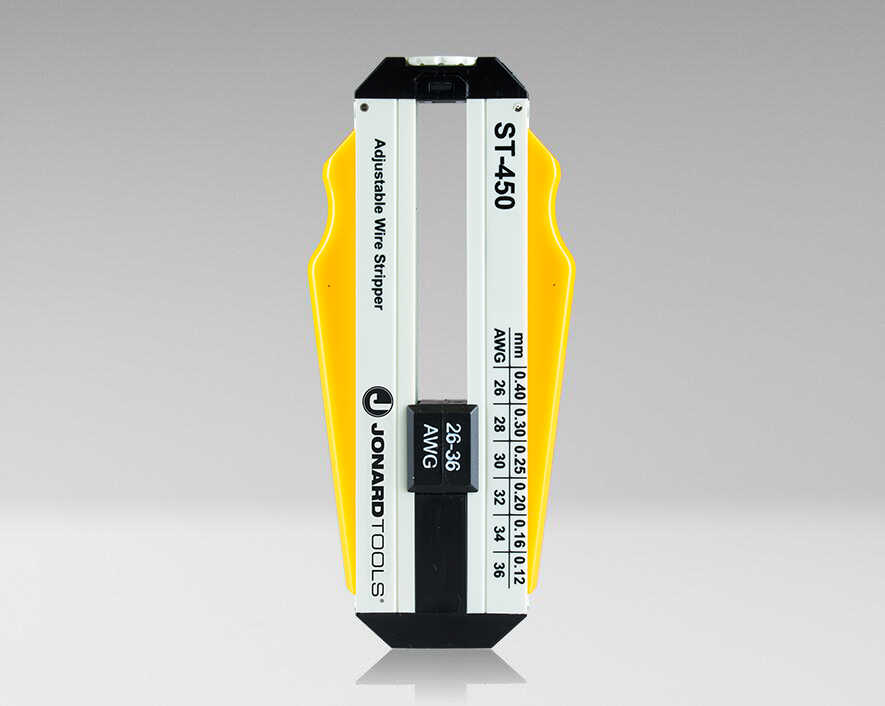

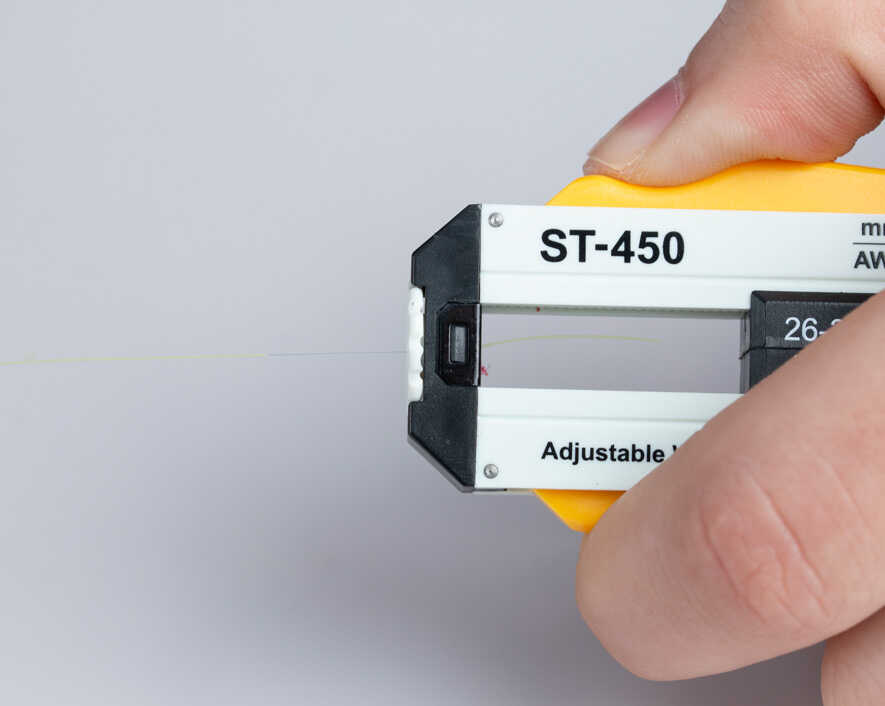

Jonard - ST-450 - Wire Stripper 26-36 Awg
Part number:
ST-450
Price:

Designed for stripping 26-36 AWG wire, this adjustable wire stripper is the perfect tool for stripping wires quickly and easily. This wire stripper features the following:

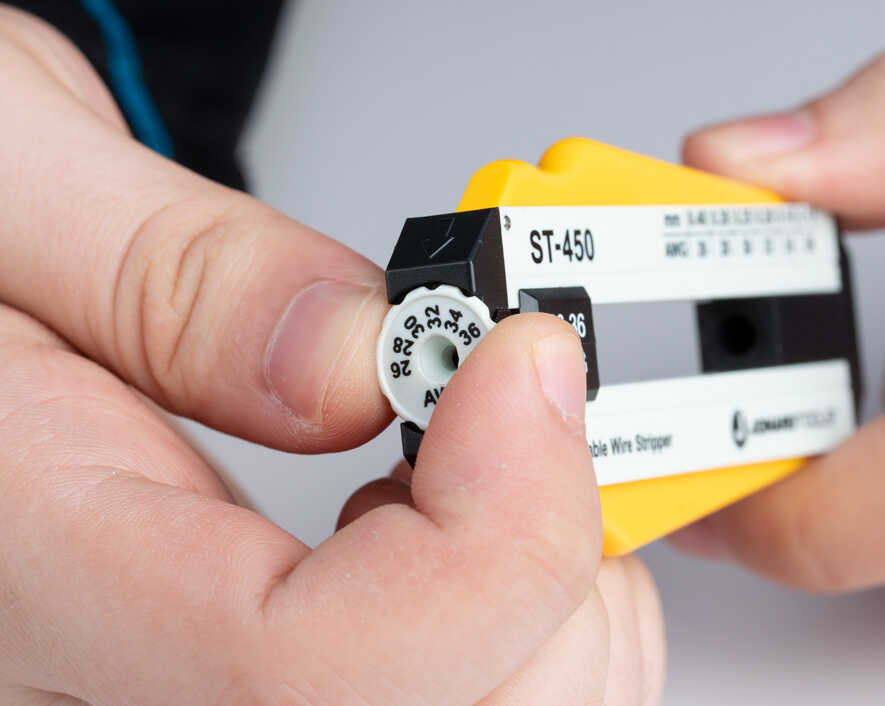

  • Built-in adjustment dial makes changing the strip gauge quick and easy
  • Adjustable stop allows the operator to strip wire at specific lengths from 0.039" to 2.0" long
  • Lightweight and compact design weighs only 1 oz and measures 3.9" long
  • Hardened steel blade cuts wire with great precision
  • Can be heated up to 100°C in water for sterilization purposes
Wire Gauge26-36 AWG (0.40 mm - 0.12 mm)
Strip Length0.039" - 2.0" (1.0 mm - 50.8 mm)
Housing MaterialABS
Blade MaterialHardened Steel
Dimensions3.9" x 1.6" x 0.6" (99 mm x 42 mm x 14 mm)
Product MaterialABS
Weight0.05 lb (22.7 g)
UPC #811490010192
Name
Description
Size
Downloads
File
Datasheet
0.8mb
