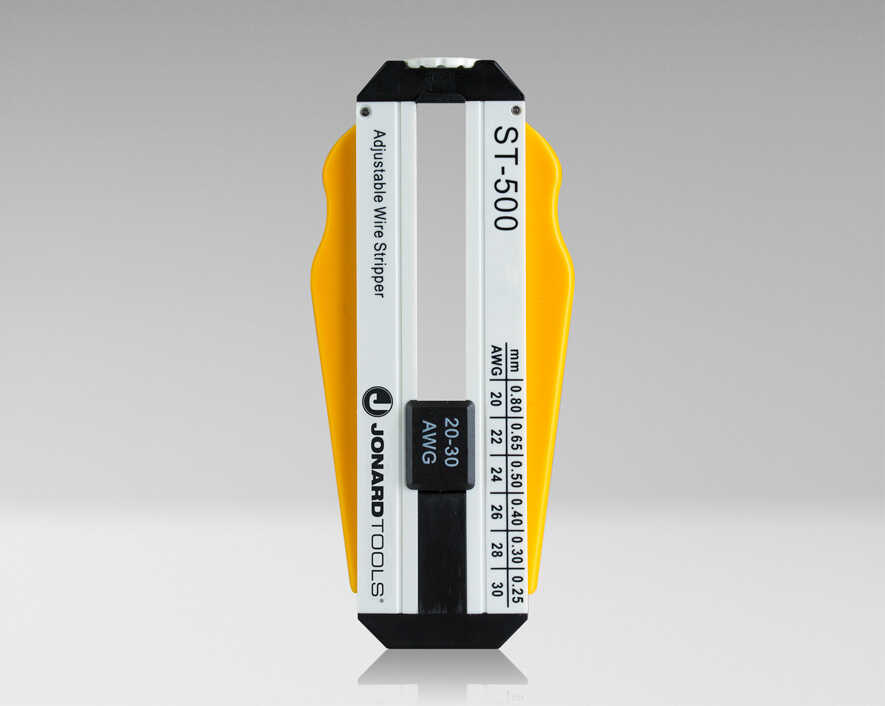

Jonard - ST-500 - Adjustable Stripper 20-30 Awg
Part number:
ST-500
Price:

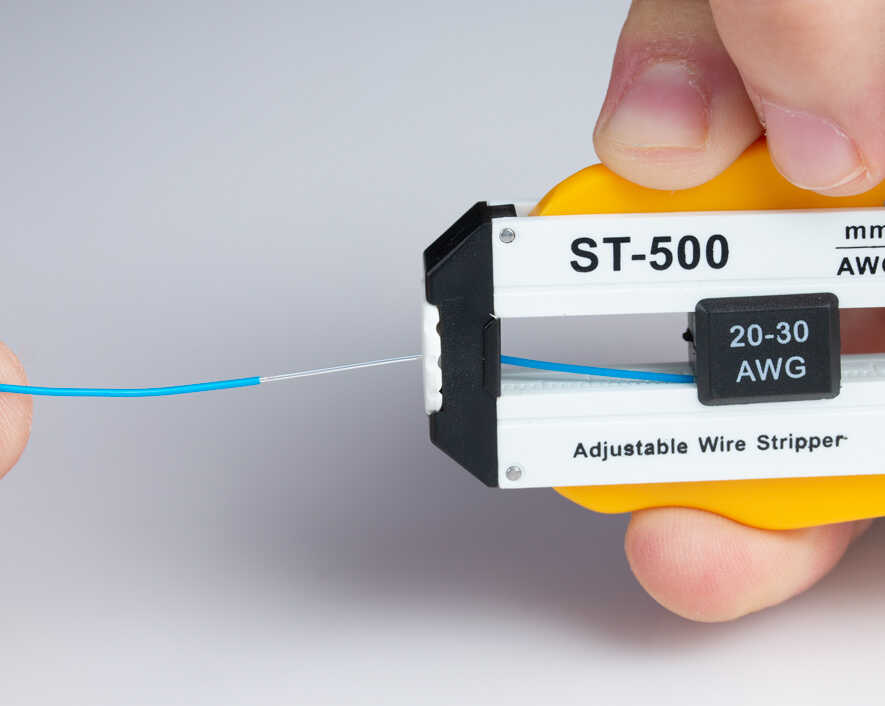

Designed for stripping 20-30 AWG wire, this adjustable wire stripper is the perfect tool for stripping wires quickly and easily. This wire stripper features the following:

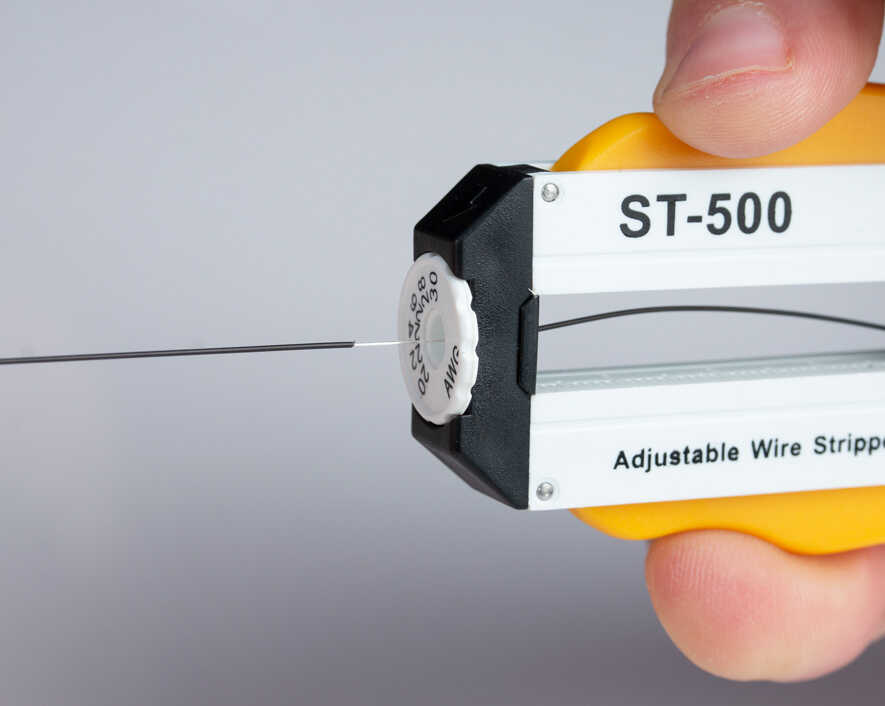

  • Can be used to strip the 900 μm buffer coating from fiber optic cables

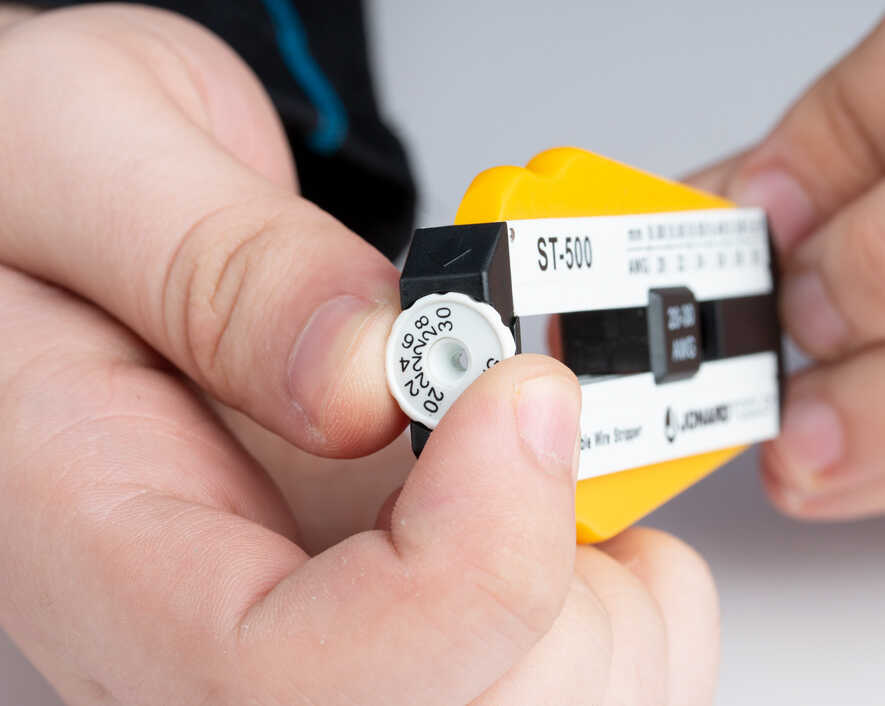

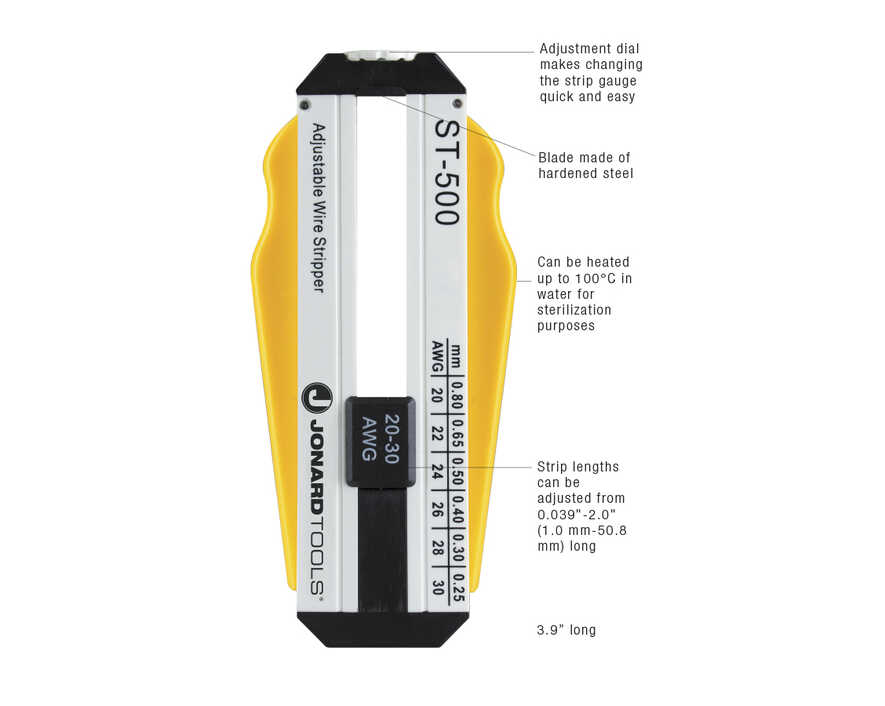

  • Built-in adjustment dial makes changing the strip gauge quick and easy
  • Adjustable stop allows the operator to strip wire at specific lengths from 0.039" to 2.0" long
  • Lightweight and compact design weighs only 1 oz and measures 3.9" long
  • Hardened steel blade cuts wire with great precision
  • Can be heated up to 100°C in water for sterilization purposes
Wire Gauge20-30 AWG (0.80 mm - 0.25 mm)
Strip Length0.039" - 2.0" (1.0 mm - 50.8 mm)
Housing MaterialABS
Blade MaterialHardened Steel
Dimensions3.9" x 1.6" x 0.6" (99 mm x 42 mm x 14 mm)
Product MaterialABS
Weight0.05 lb (20.884 g)
UPC #811490010178
