Jonard - ST-550 - Adjustable Stripper 18-28 Awg
Part number:
ST-550
Price:
Designed for stripping 18-28 AWG wire, this adjustable wire stripper is the perfect tool for stripping wires quickly and easily. This wire stripper features the following:

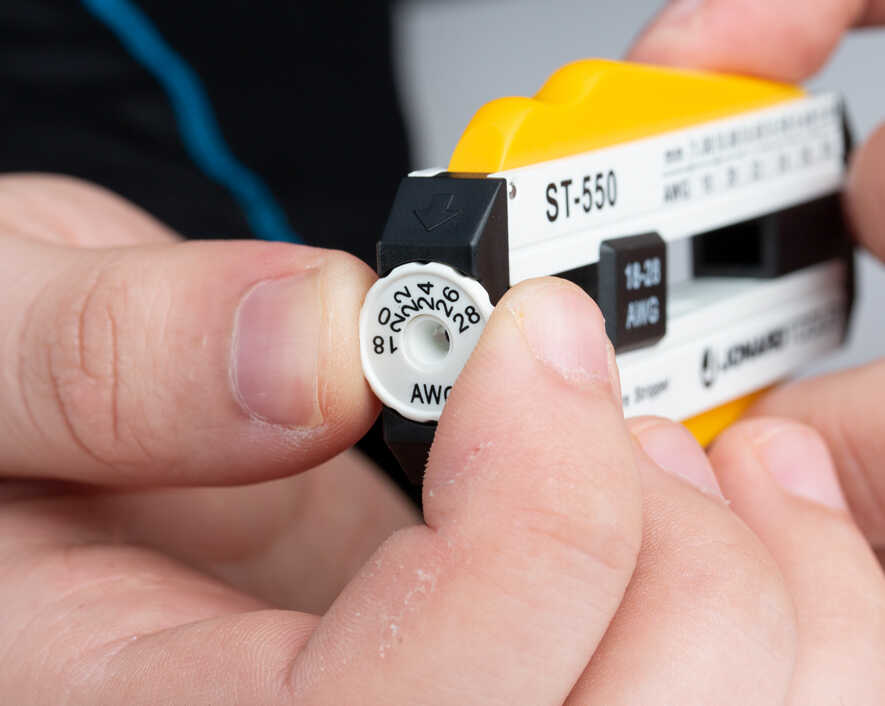

- Built-in adjustment dial makes changing the strip gauge quick and easy
- Adjustable stop allows the operator to strip wire at specific lengths from 0.039" to 2.0" long
- Lightweight and compact design weighs only 1 oz and measures 3.9" long
- Hardened steel blade cuts wire with great precision
- Can be heated up to 100°C in water for sterilization purposes
| Wire Gauge | 18-28 AWG (1.0 mm - 0.30 mm) |
|---|---|
| Strip Length | 0.039" - 2.0" (1.0 mm - 50.8 mm) |
| Housing Material | ABS |
| Blade Material | Hardened Steel |
| Dimensions | 3.9" x 1.6" x 0.6" (99 mm x 42 mm x 14 mm) |
| Product Material | ABS |
| Weight | 0.05 lb (20.884 g) |
| UPC # | 811490010185 |
