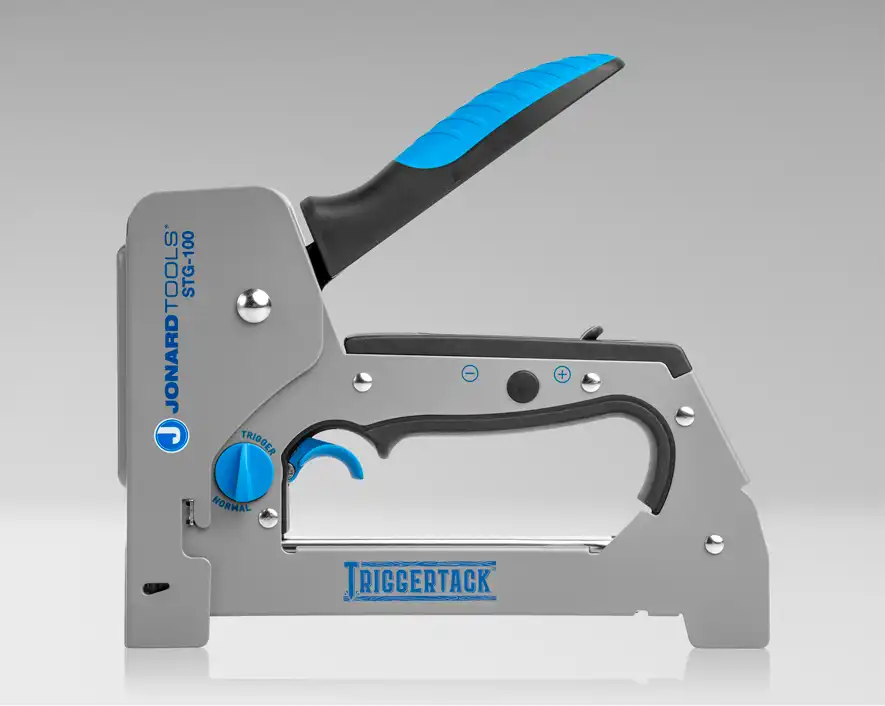

Jonard - STG-100 - TriggerTack Insulated Cable Stapler
Part number:
Price:
- • The TriggerTack can handle low-voltage wires with a diameter of up to 5/16 inch (8 mm), making it a versatile choice for a range of applications.
- • The TriggerTack is designed to be compatible with Jonard's UL-listed insulated cable staples (STG-14I, STG-56I and STG-1456I), as well as Arrow T59-type staples.
- • The trigger-actuated mode features a dial switch that allows you to preload the staple by squeezing the handle. You can then position the tacker over your work surface or wire/cable using the guides and trigger the stapling action by squeezing again.

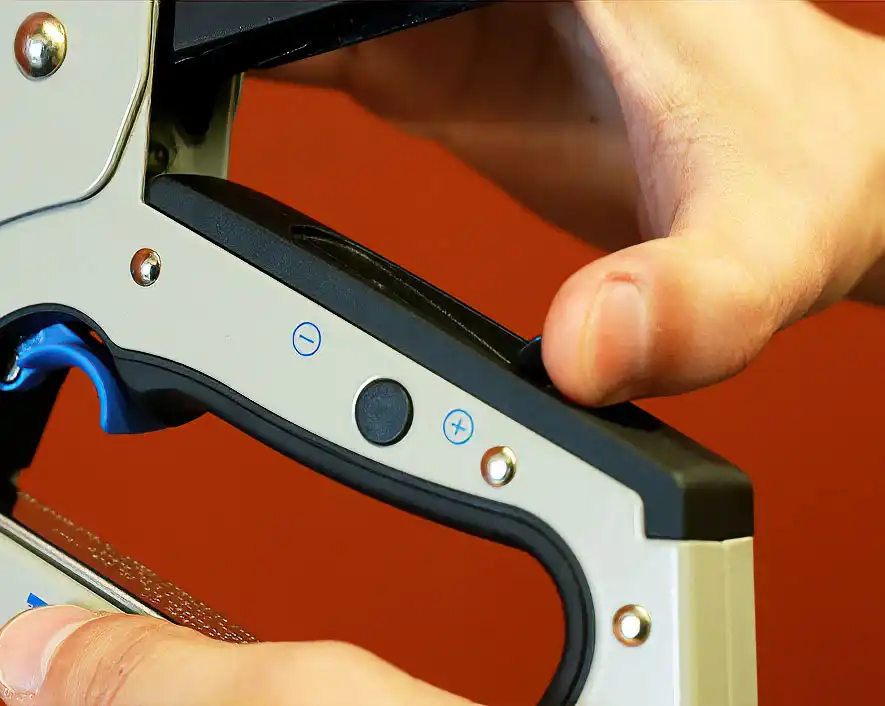

- • Use the switch-controlled depth adjuster to adjust the fastener depth.
- • An ergonomic handle provides precise control and an improved grip.
| Maximum Staple Size | .3125" |
| Staple Type | T59 |
| Dimensions | 7 in x 5 in x 1 in (17.78 cm x 12.7 cm x 2.54 cm) |
| Weight | 1.65 lb (749.1 g) |
Name
Description
Size
Downloads
File
Data Sheet - TriggerTack - STG-100.pdf
0.4mb
