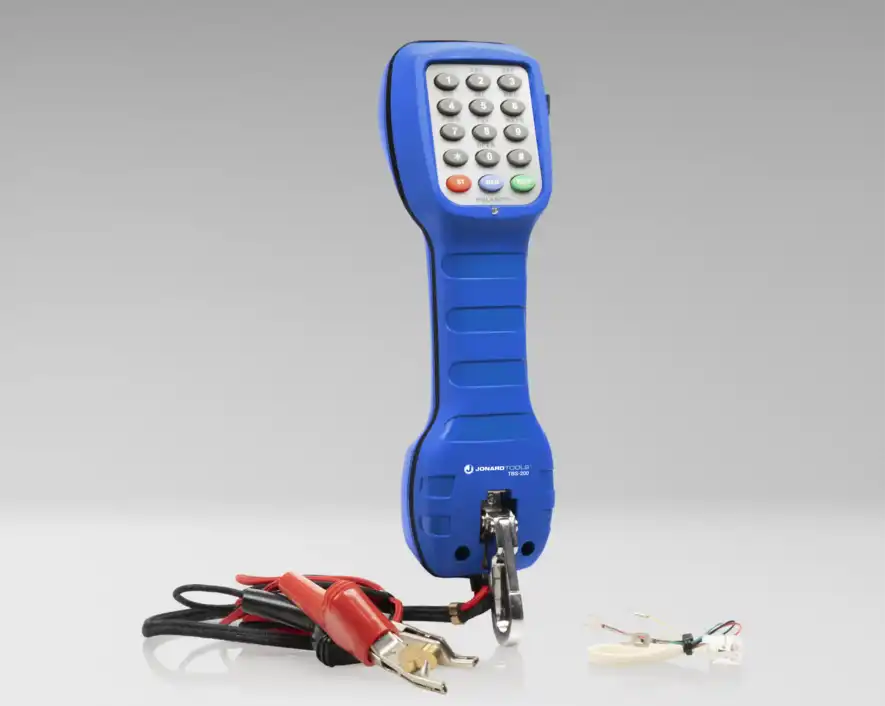

Jonard - TBS-200 - Telephone Butt Set with High Impedance Monitoring, Analog
Part number:
Price:
- • The Talk, Ring and Monitor test functions can be switched on and off inside the handgrip.
- • It sends signals via dial tone (DTMF) or dial pulse.
- • High impedance monitoring will not interfere with data, conversations or signals.
- • The bright LED clearly indicates reversed polarity.
- • You can redial the last number up to 31 times.
- • Provides voltage protection against excessive voltage, transient ringer signals and direct connection to most batteries and power supplies.
- • The Angled Bed-of-Nails (ABN) clips provide a secure clamping action.
| Loop Limit | 4K ohms max. at 48VDC (5K meter - 26Ga non loaded) nominal 15mA minimum loop current |
| DC Resistor | 150 ohms Typical at 80mA current |
| Monitor Impedance, Ring Position | Low impedance - 600 ohms Typical at 1 KHz |
| Monitor Impedance, Monitor Position | High impedance - 100K ohms Typical at 1 KHz |
| Rotary Dial Output, Pulse Rate | 10 +/- 0.5 pulses/sec |
| Rotary Dial Output, Percent Break | 60% +/- 2% |
| Rotary Dial Output, Interdigital Pause | 8.5ms Typical |
| Rotary Dial Output, Leakage During Break | > 50k ohms |
| DTMF Output, Tone Frequency Error | +/- 1.5% |
| DTMF Output, Level of Tone Pair | +2 dBm max., -8 dBm min. |
| DTMF Output, Low vs High Tone Difference | -4 dBm max |
| Dimensions | 9 in x 2 in x 2 in (22.86 cm x 5.08 cm x 5.08 cm) |
| Weight | 0.82 lb (372.28 g) |
Name
Description
Size
Downloads
File
Data Sheet - Telephone Butt Set with High Impedance Monitoring, Analog - TBS-200.pdf
0.8mb
File
Jonard Tools TBS-200 Instruction Manual.pdf
0.7mb

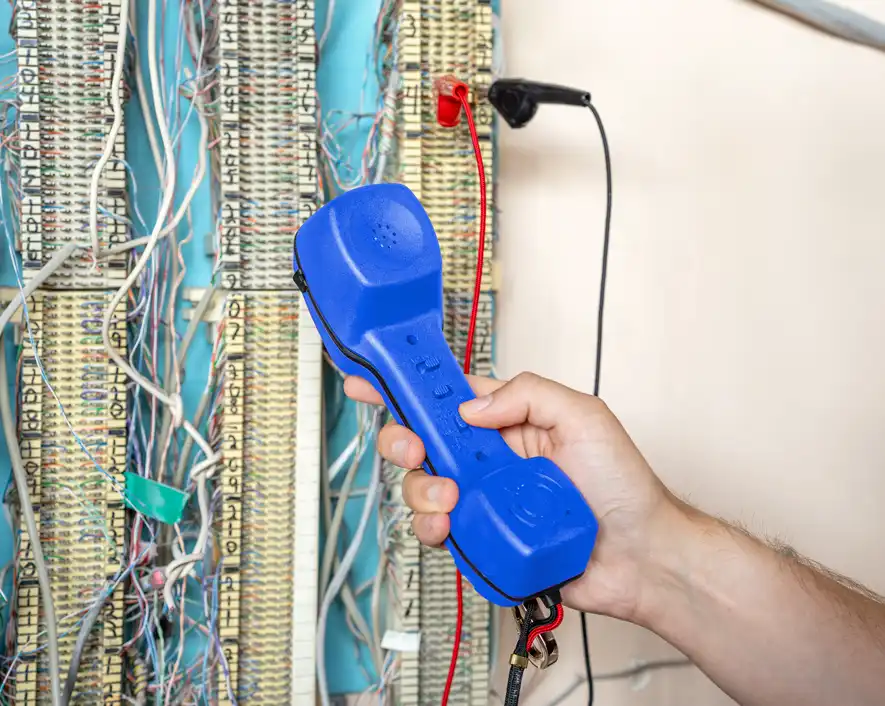

Designed to facilitate the installation, servicing and maintenance of analogue telephone lines, this telephone butt set offers all the essential testing functions, including dial tone detection, call making and receiving, high impedance monitoring and tone and pulse modes.
