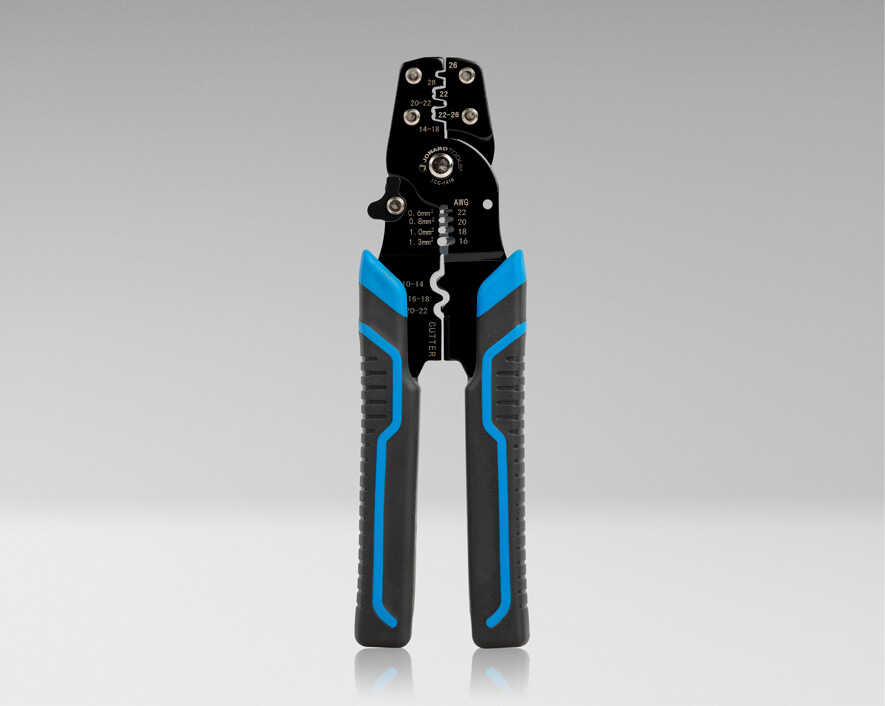

Jonard - TCC-1416 - Electric Lug and Terminal Crimper
Part number:
TCC-1416
Price:

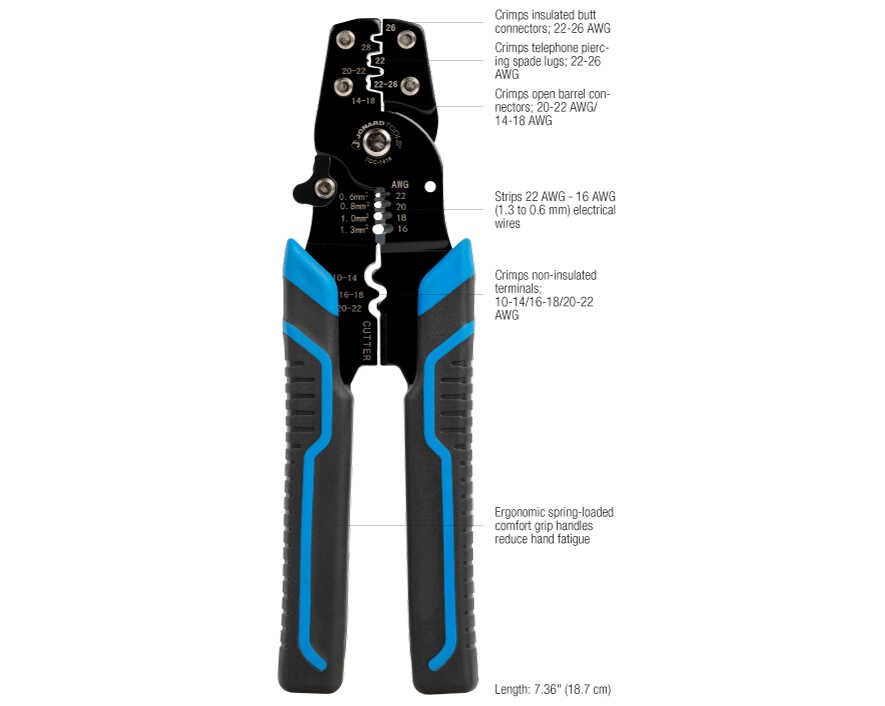

Designed to prep electrical cables, this electrical lug and terminal crimper is perfect for cutting and stripping wires, and crimping insulated and non-insulated lugs and terminals. This crimper features the following:

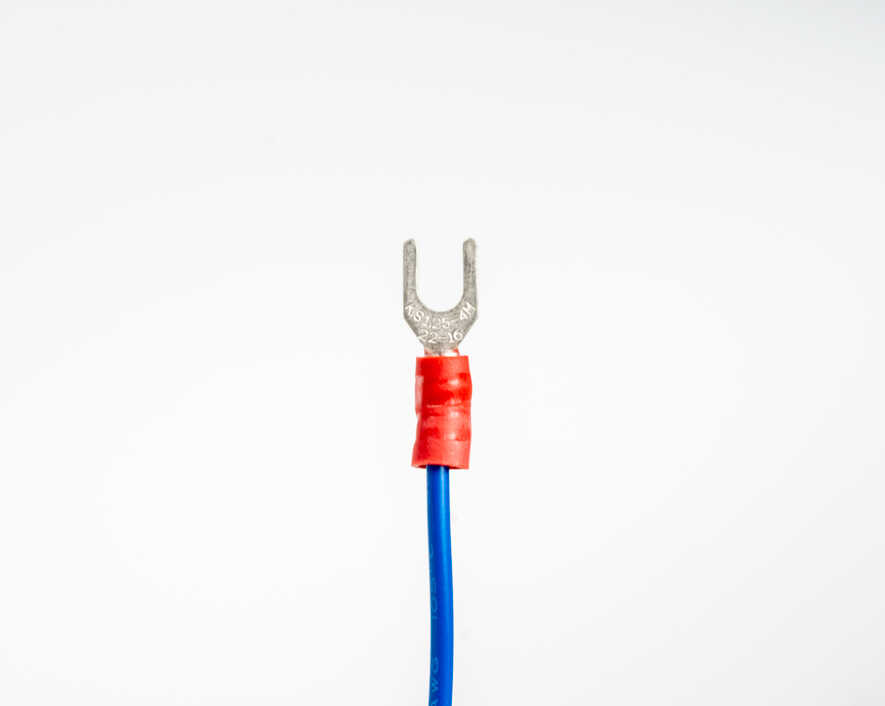

  • Crimps insulated butt connectors; 22-26 AWG
  • Crimps telephone piercing spade lugs; 22-26 AWG
  • Crimps open barrel connectors; 20-22 AWG/ 14-18 AWG

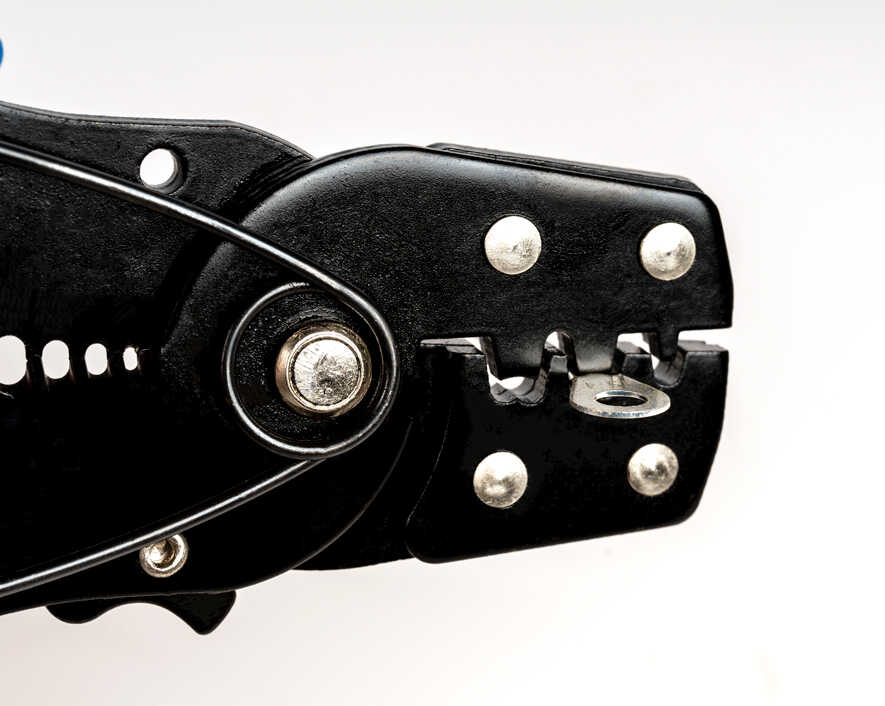

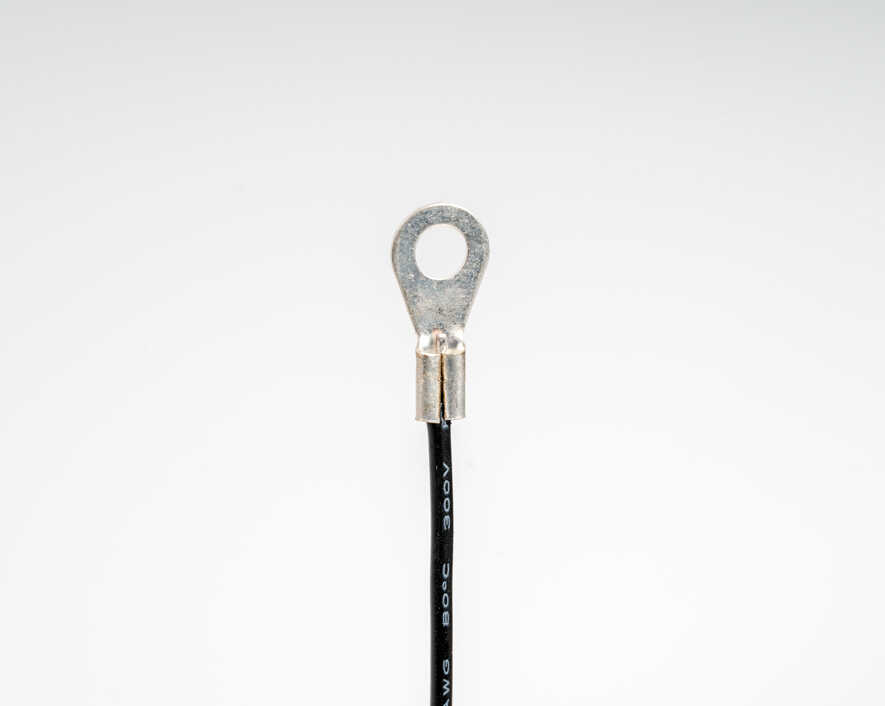

  • Crimps non-insulated terminals; 10-14/16-18/20-22 AWG

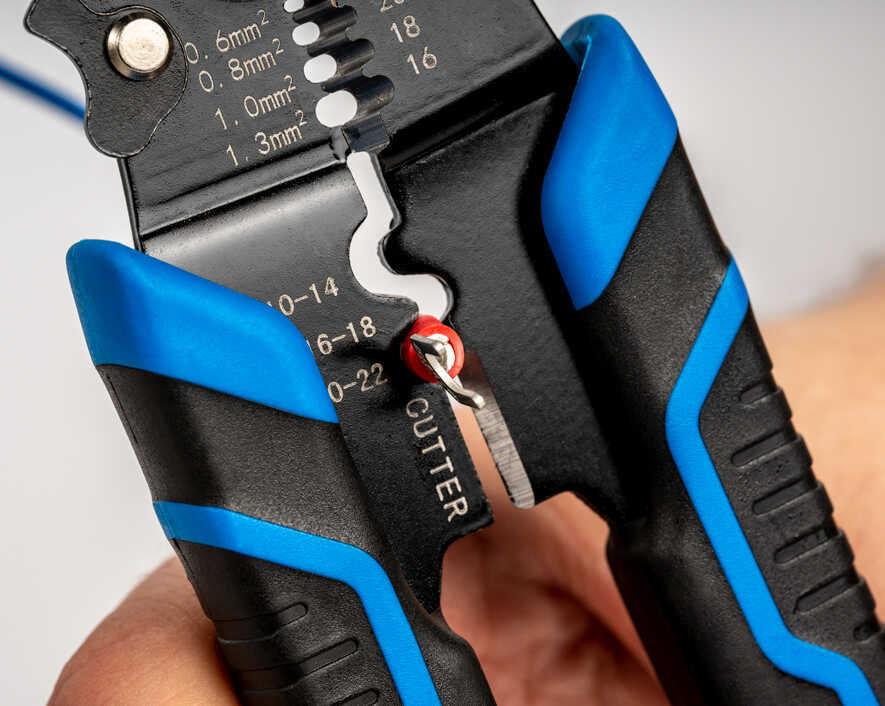

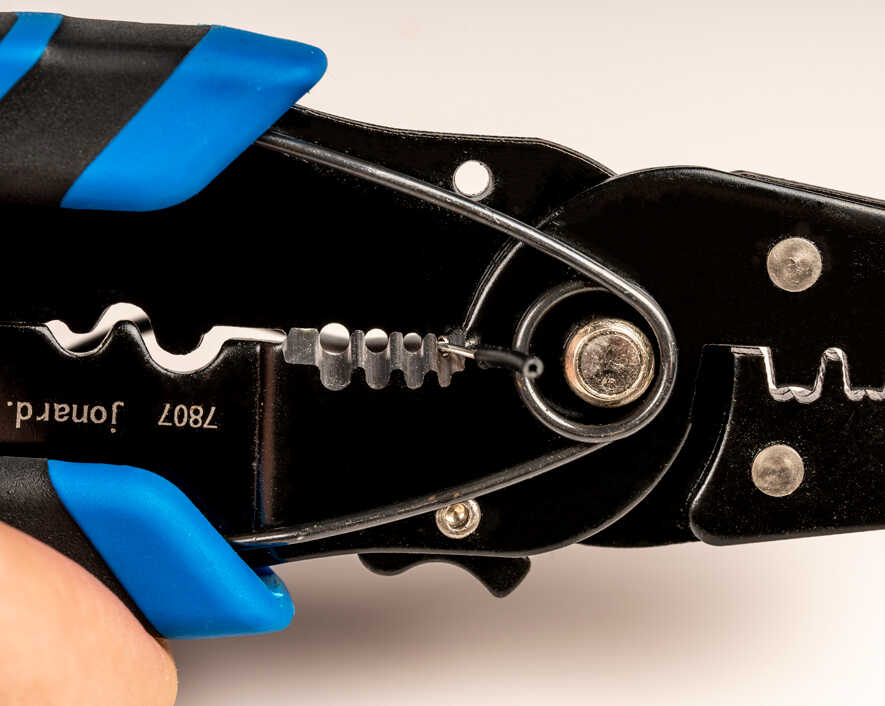

  • Strips 22 AWG - 16 AWG (1.3 to 0.6 mm) electrical wires

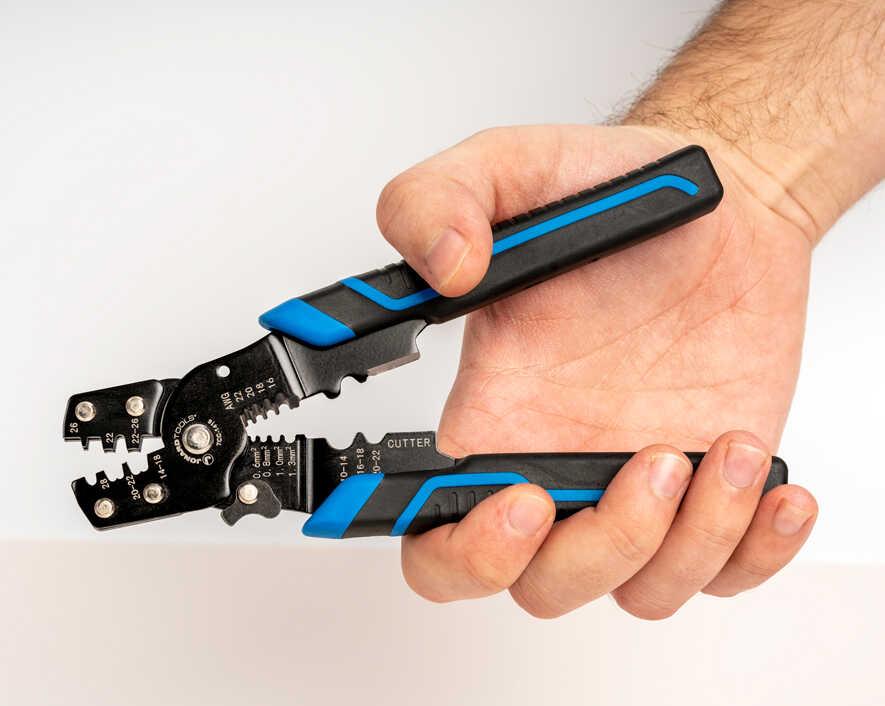

  • Ergonomic spring-loaded comfort grip handles reduce hand fatigue
Terminal TypeInsulated and Non-Insulated terminals and connectors
Wire Gauge16-22 AWG (1.3 to 0.6 mm)
FinishElectrophoretic
Length7(17.78cm)
Weight0.48 lb (217.92 g)
UPC #00810053351659
