Jonard - TCK-178 - Solderless Ring and Lug Terminal Kit, 178 Pcs
Part number:
TCK-178
Price:
The Jonard Tools Terminal Ring and Lug Kit is perfect for any technician or DIYer who needs to terminate electrical wires. These connectors feature the following:

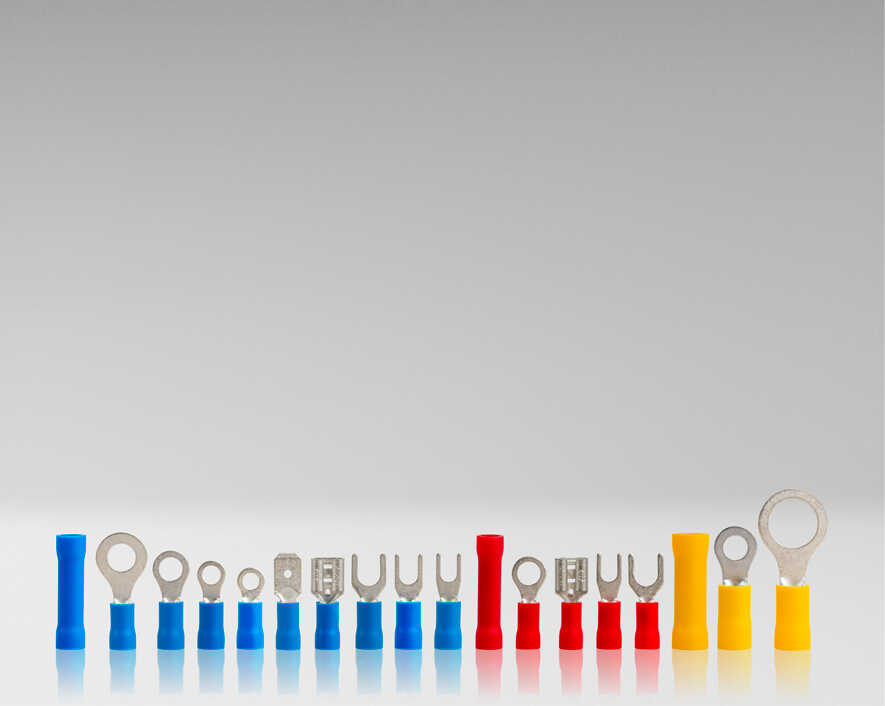

- Includes a variety of insulated ring, fork, and spade terminals as well as butt splices for 10 - 22 AWG electrical wires
- Terminals are color coded for easy identification (yellow 12-10 AWG, blue 16-14 AWG, red 22-16 AWG)
- UL certified for UL 486A-486B, UL 486C, CSA C22.2 NO. 65 & NO. 188

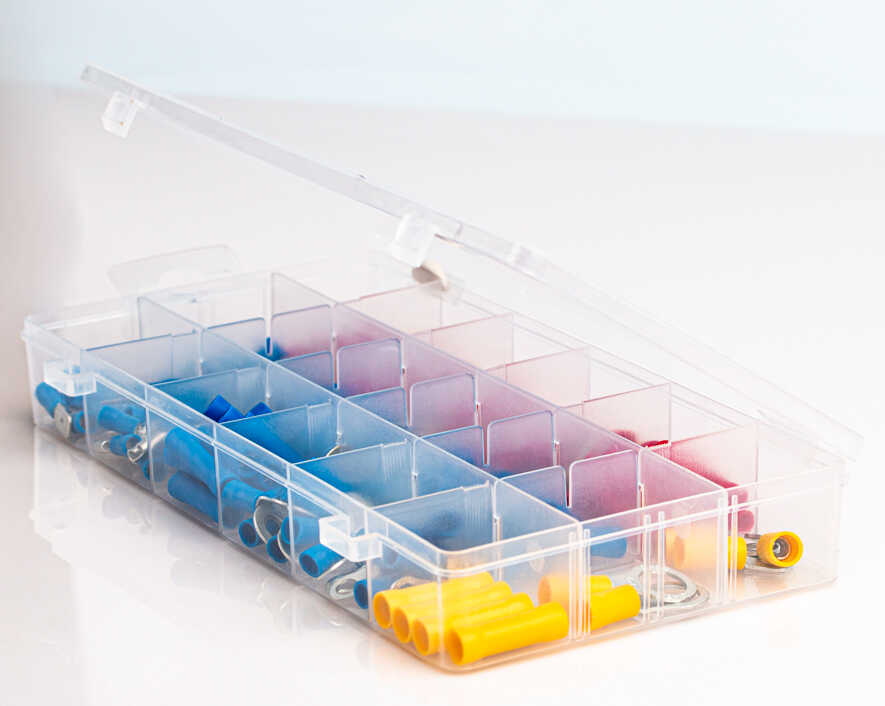

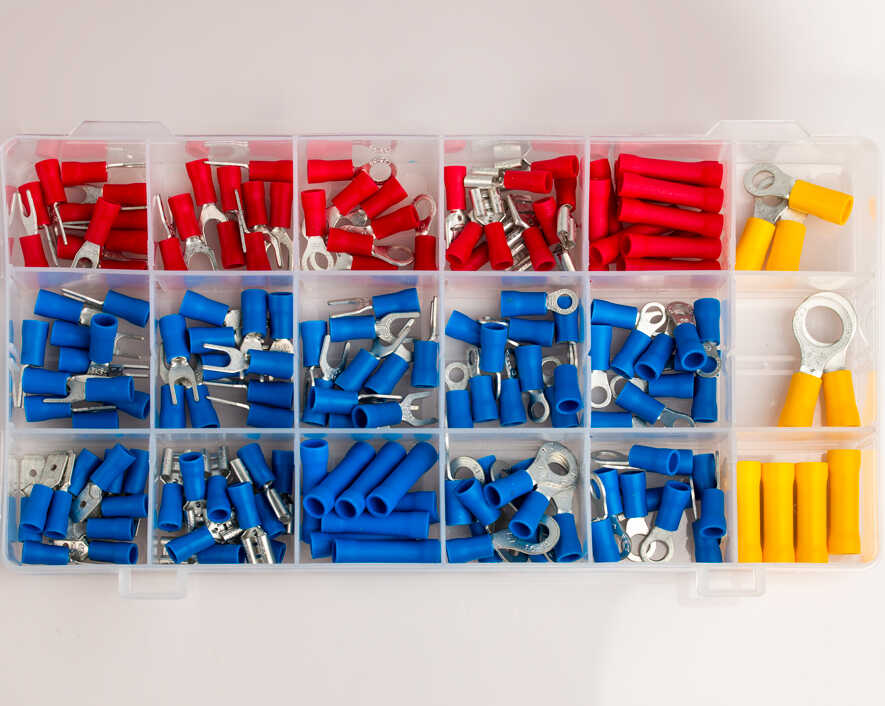

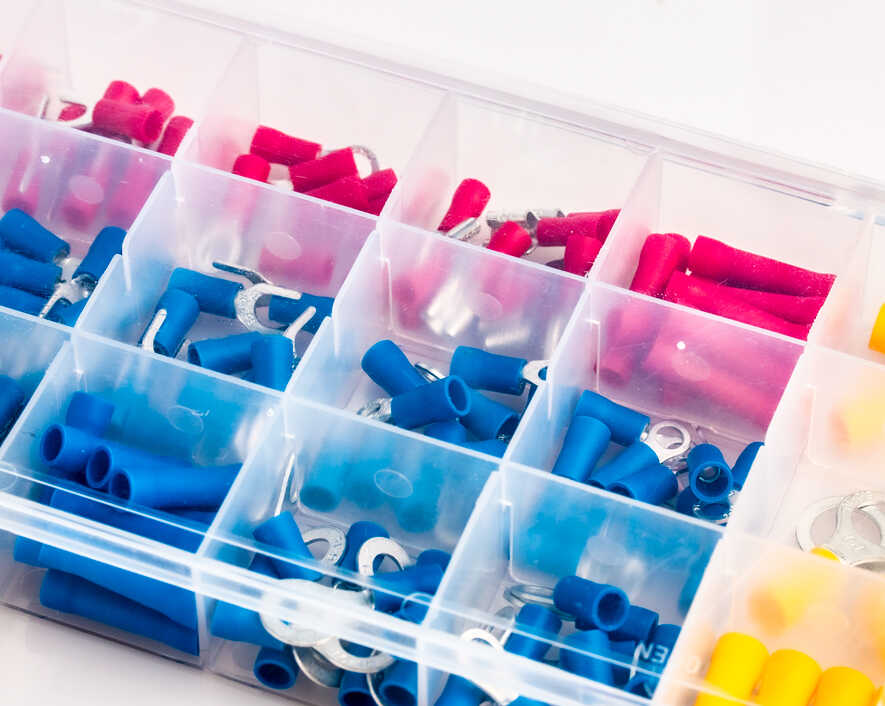

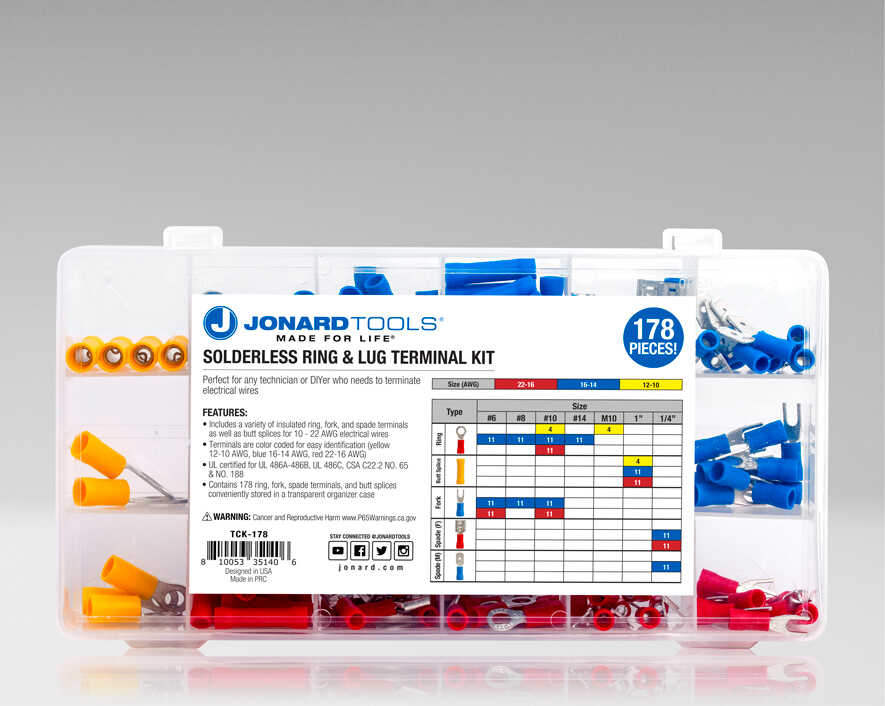

- Contains 178 ring, fork, spade terminals, and butt splices conveniently stored in a transparent organizer case
| # Pieces | 178 |
|---|---|
| Wire Gauge | 10 - 22 AWG |

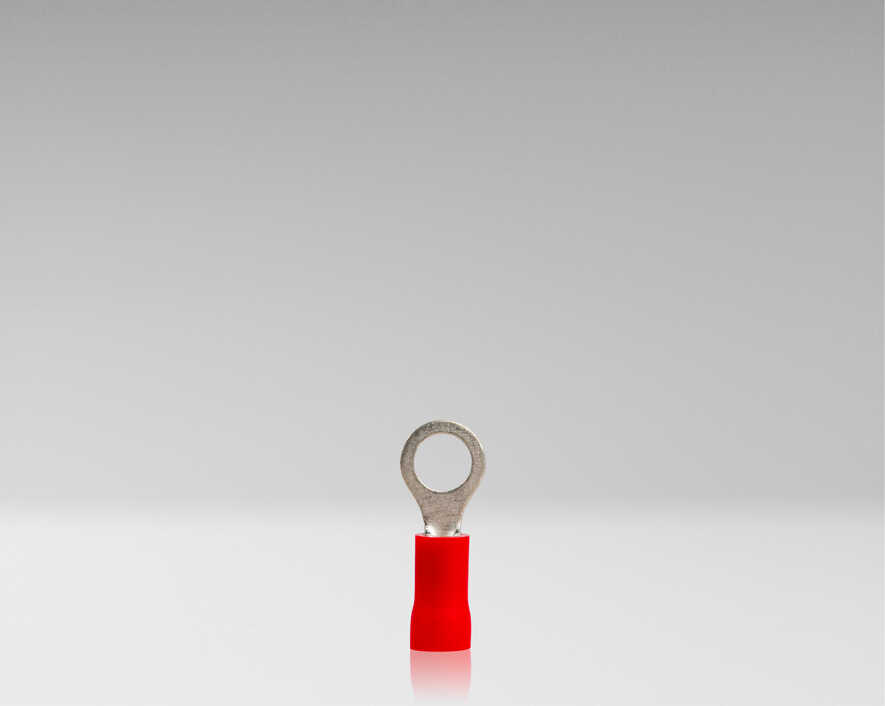

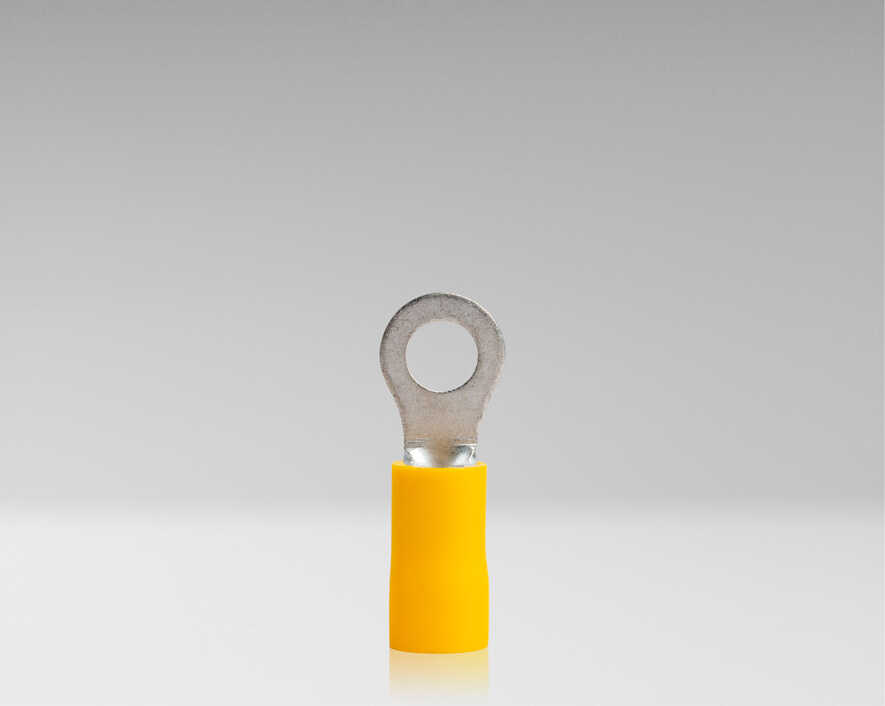

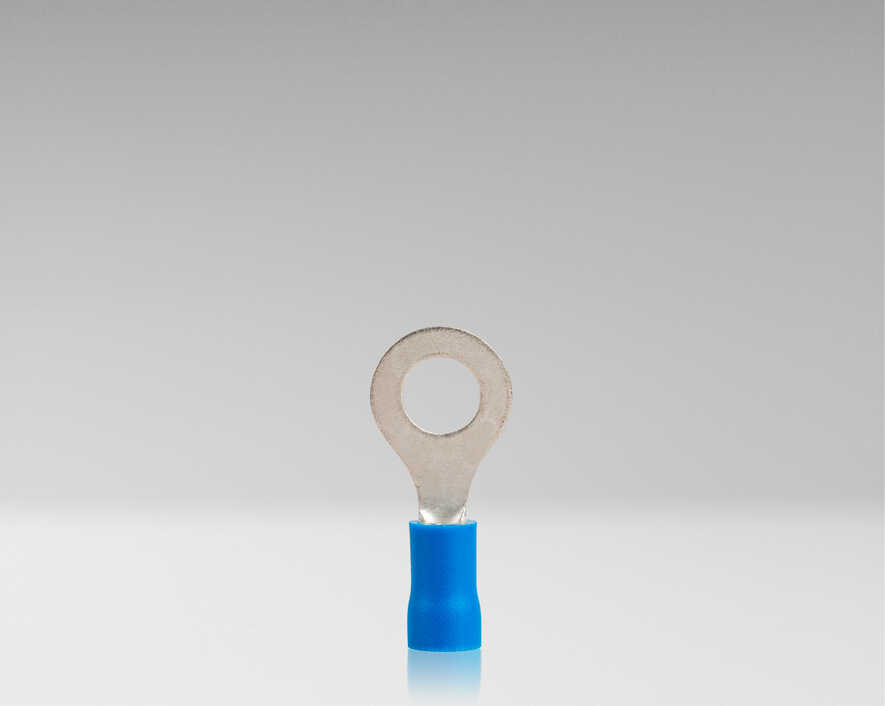

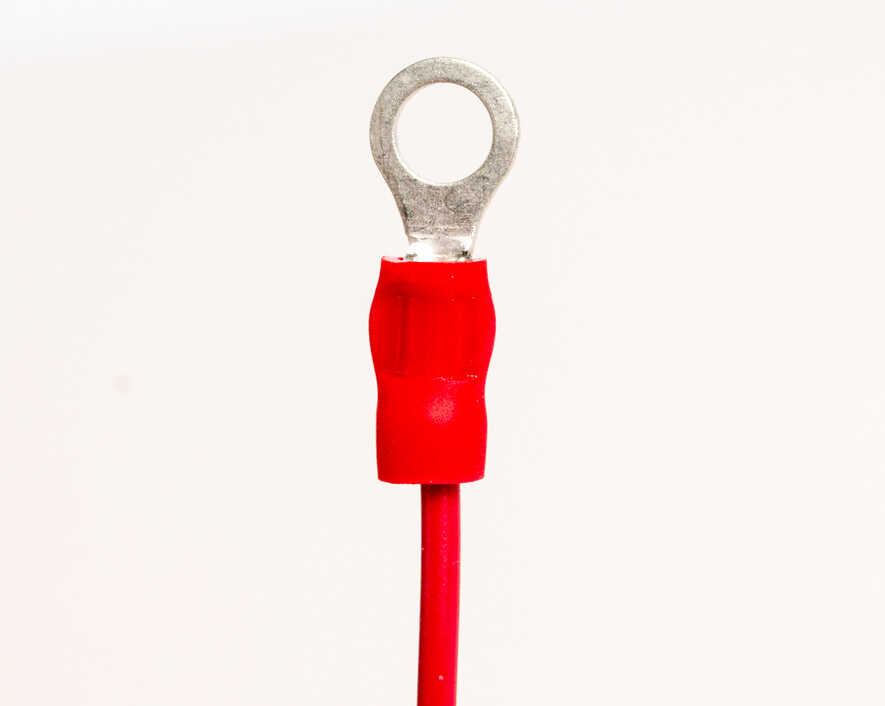

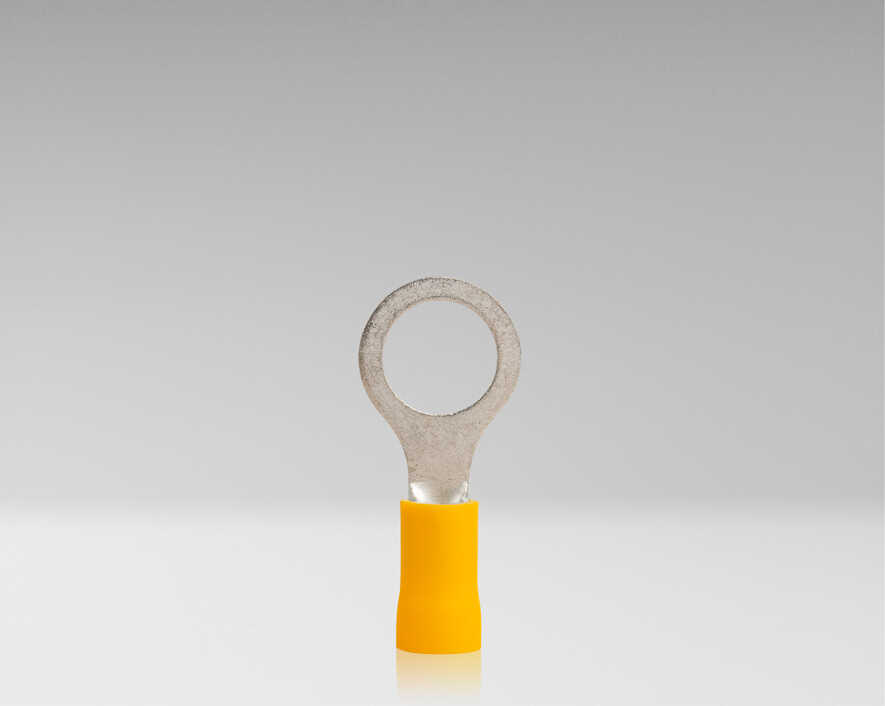

| Ring Terminal Sizes | Red #10, Blue #6, #8, #10, #14, Yellow #10, M10 |

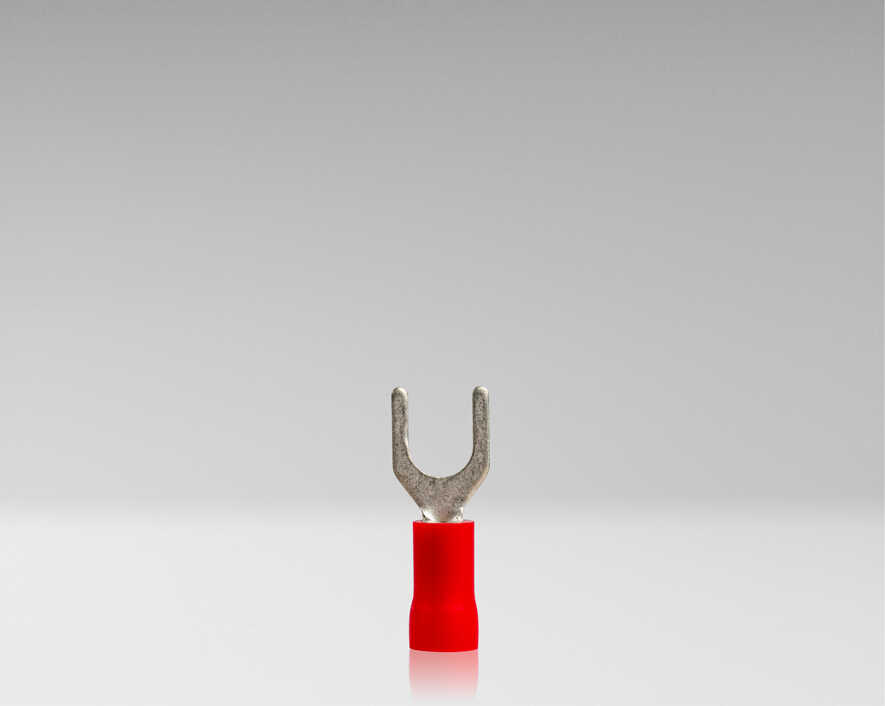

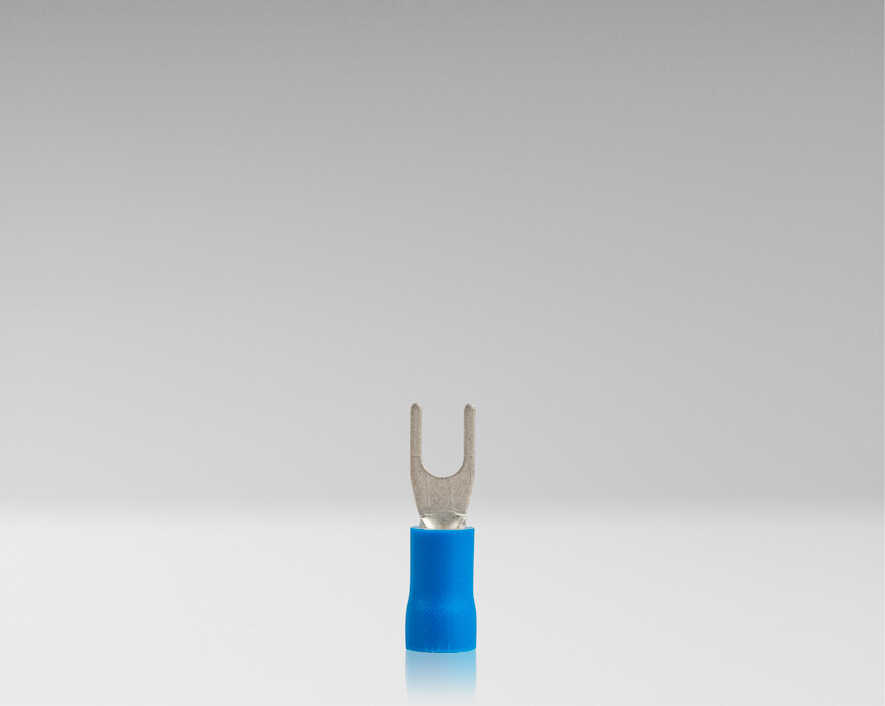

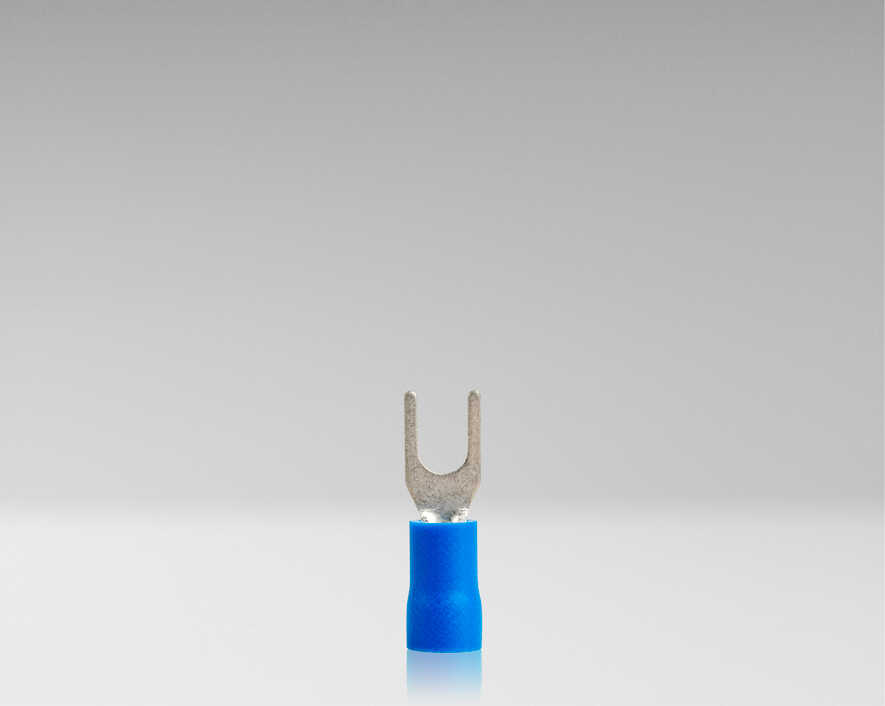

| Fork Terminal Sizes | Red #6, #10, Blue #6, #8, #10 |

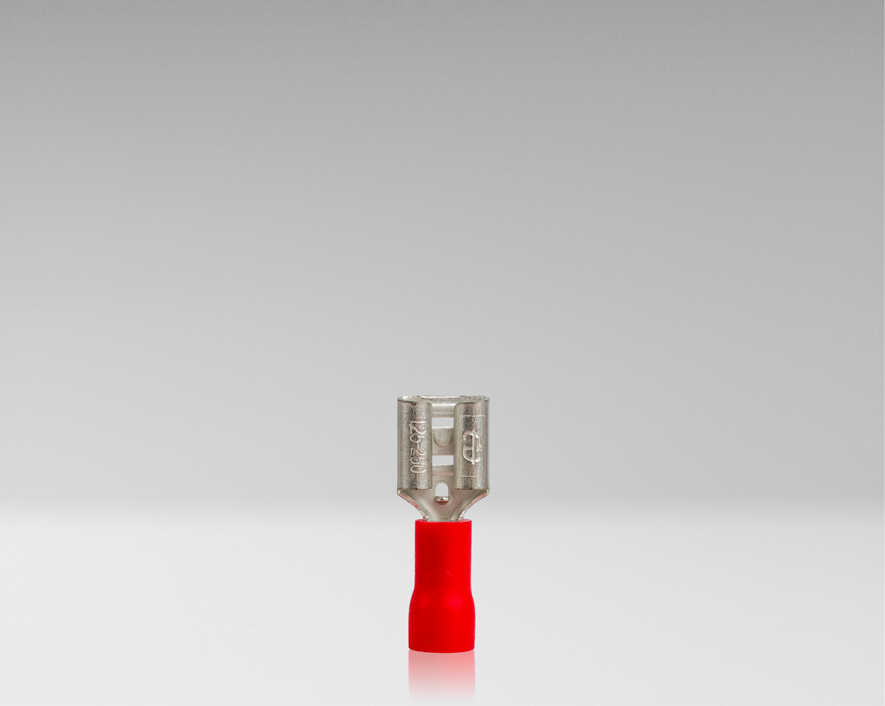

| Spade Terminals | Red Female, Blue Male, Blue Female |

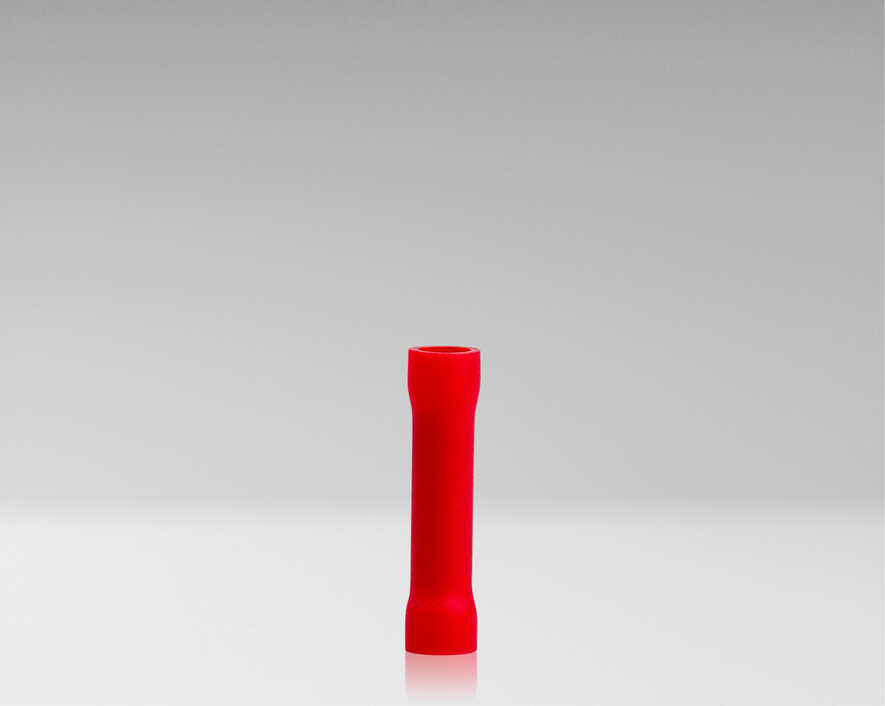

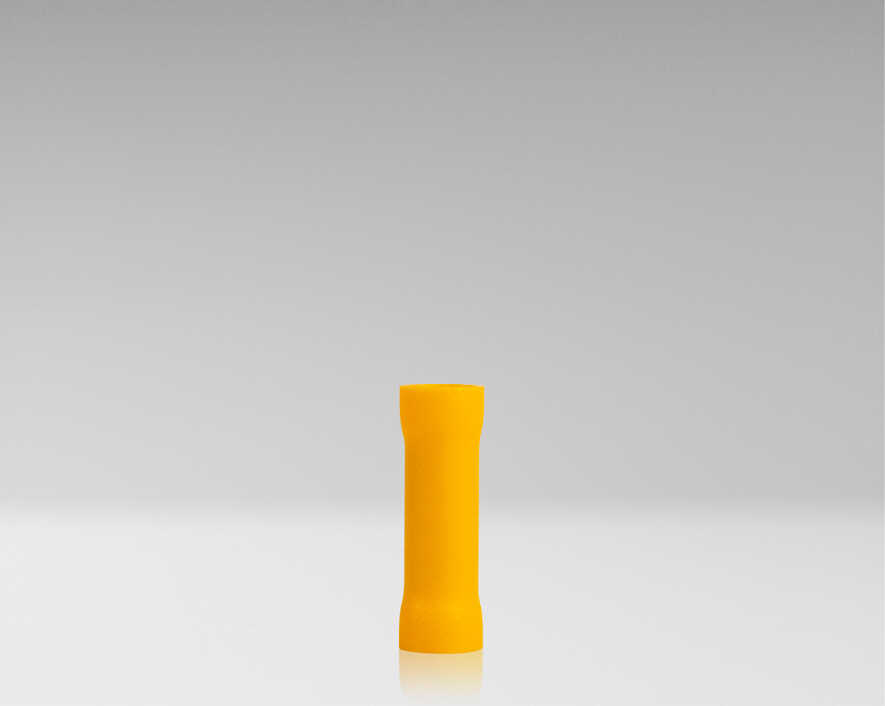

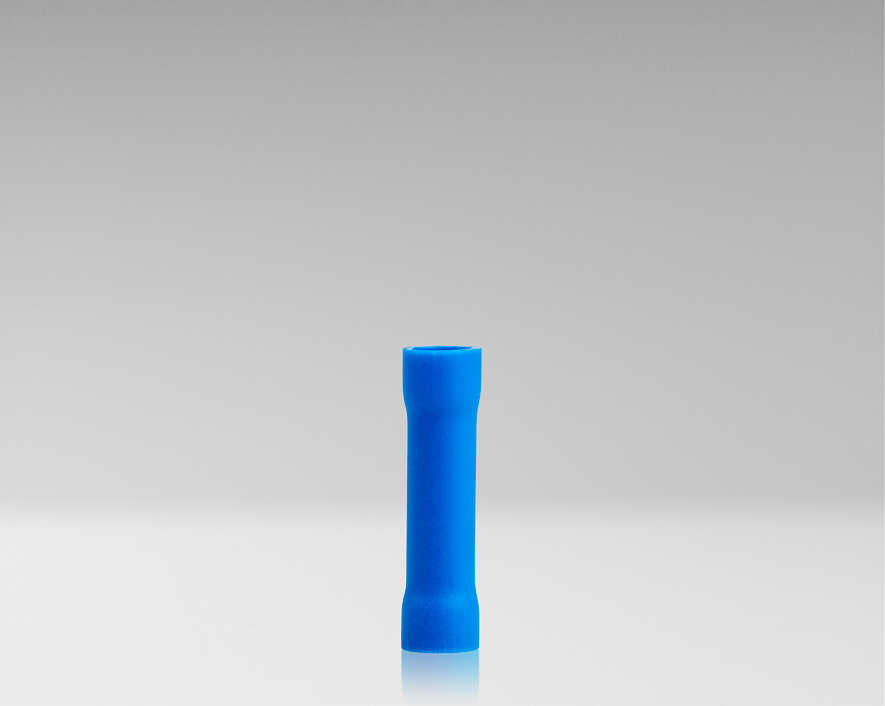

| Butt Splices | Red, Blue, Yellow |
| Dimensions | 8.27" x 4.57" x 1.14" (21 cm x 11.6 cm x 2.9 cm) |
| Weight | 0.55 lb (249.7 g) |
| UPC # | 810053351406 |
