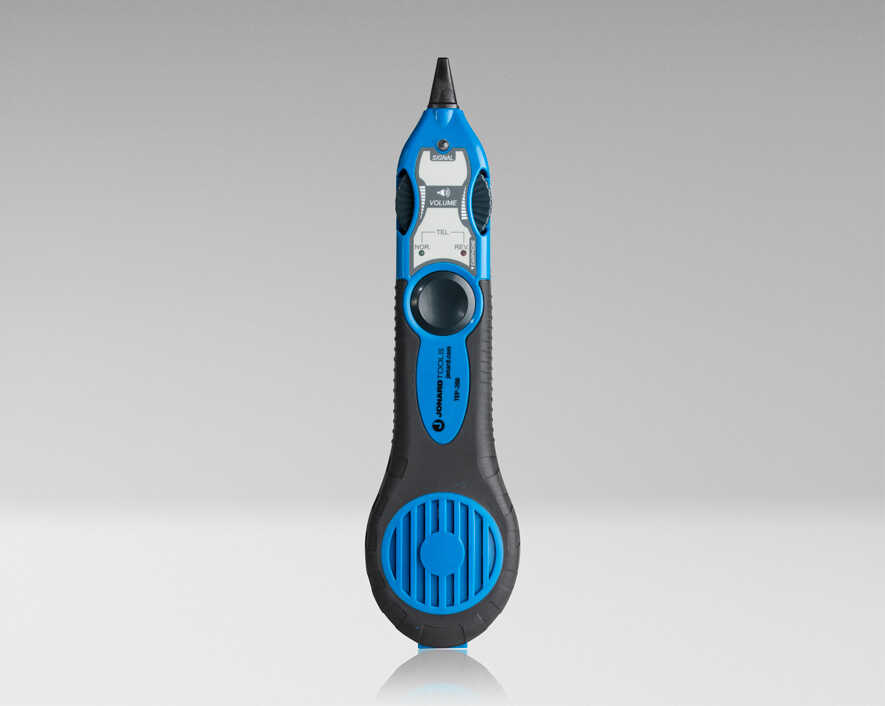

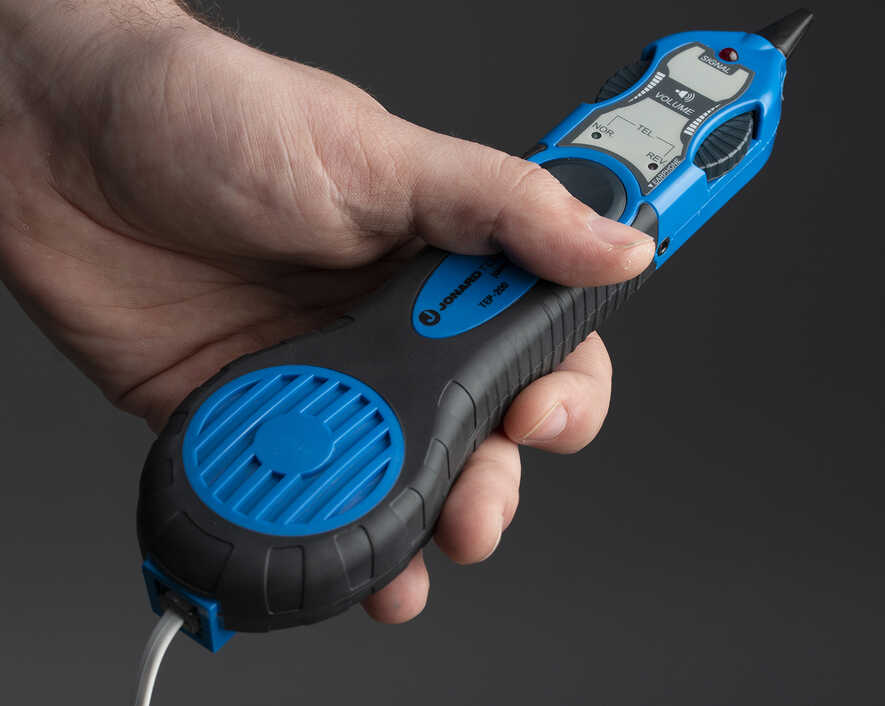

Jonard - TEP-200 - Tone Tracing Probe
Part number:
TEP-200
Price:

Designed to trace wire paths via tone detection, this tone tracing probe is the perfect tool for identifying cables in common wiring systems. This tone tracing probe features the following:

  • Plastic probe tip prevents accidental shorts
  • LED light provides a visual indication of signal strength
  • Able to check the polarity of many 6P2C/4P2C telephone jacks
  • Adjustable volume knob and headphone jack assist in tracing wires
  • Works with many other manufacturers’ analog tone generators
  • Includes (1) 9V battery required for operation
ApplicationWire Tracing
StandardsCE Standards
Battery Type(1) 9V included
Overall Length9" (22.9 cm)
Weight0.337 lb (153 g)
UPC #811490016743
Name
Description
Size
Downloads
File
Datasheet
0.4mb
