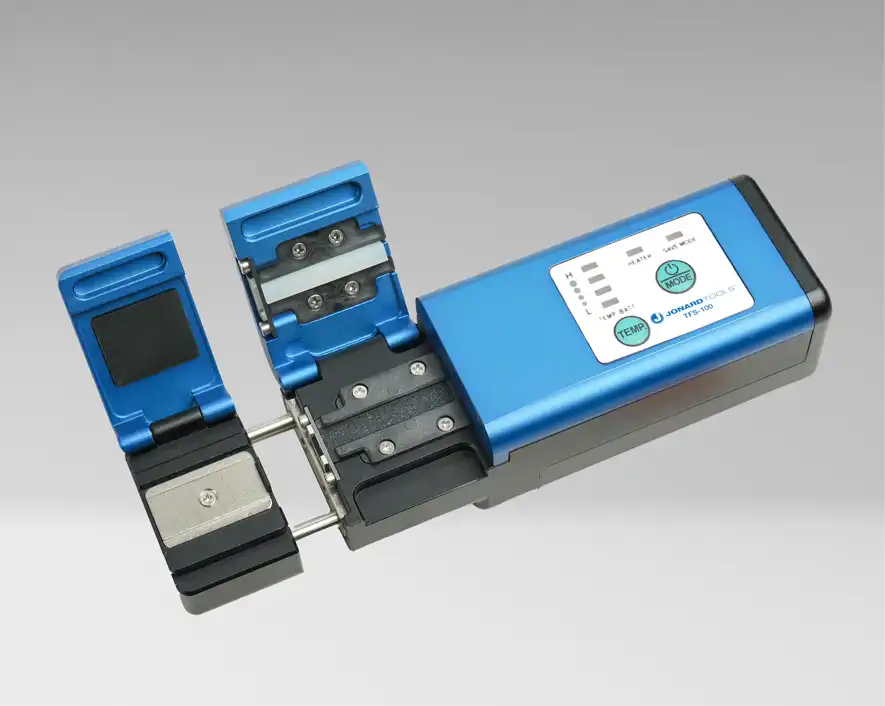

Jonard - TFS-100 - Handheld Thermal Stripper for Ribbon or Simplex Fiber
Part number:
Price:
- • Quickly and cleanly strips simplex and ribbon fibre cable (2–12 strands) every time.
- • It heats up to the maximum temperature in just 4 seconds and has 4 temperature settings.
- • Optional power-saving mode
- • Compatible with most fibre holders, including Fujikura's field and factory styles. However, we recommend using one of our magnetic fibre holders.
- • It can be stripped more than 300 times before it needs to be recharged.
| Fiber Types | Single fiber, Ribbon fiber |
| Coating Material | UV curable resin |
| Single Core Coating Diameter | 0.25 mm - 0.4 mm |
| Ribbon Fiber Coating Diameter | 0.3 mm - 0.4 mm |
| Cladding Diameter | 125 µm |
| Max. Coating Strip Length | 1.18" (30 mm) |
| Typical Heating Time | 4 - 5 seconds |
| Battery Capacity | 800 mAh Li-battery (300+ cycles) |
| Dimensions | 5 in x 1 in x 1 in (12.7 cm x 2.54 cm x 2.54 cm) |
| Weight | 0.88 lb (399.52 g) |
Name
Description
Size
Downloads
File
Data Sheet - Handheld Thermal Stripper - TFS-100.pdf
0.6mb
File
Jonard Tools TFS-100 Instructions_0.pdf
0.8mb
