Jonard - TWAF-1130 - Torque Wrench, Full 11mm, 30In/Lb
Part number:
TWAF-1130
Price:

Designed for 7/16" F Connectors and 11 mm nuts and bolts, this full-size open head torque wrench provides a perfectly calibrated amount of torque to prevent damage from over-tightening or signal loss from under-tightening. This torque wrench features the following:

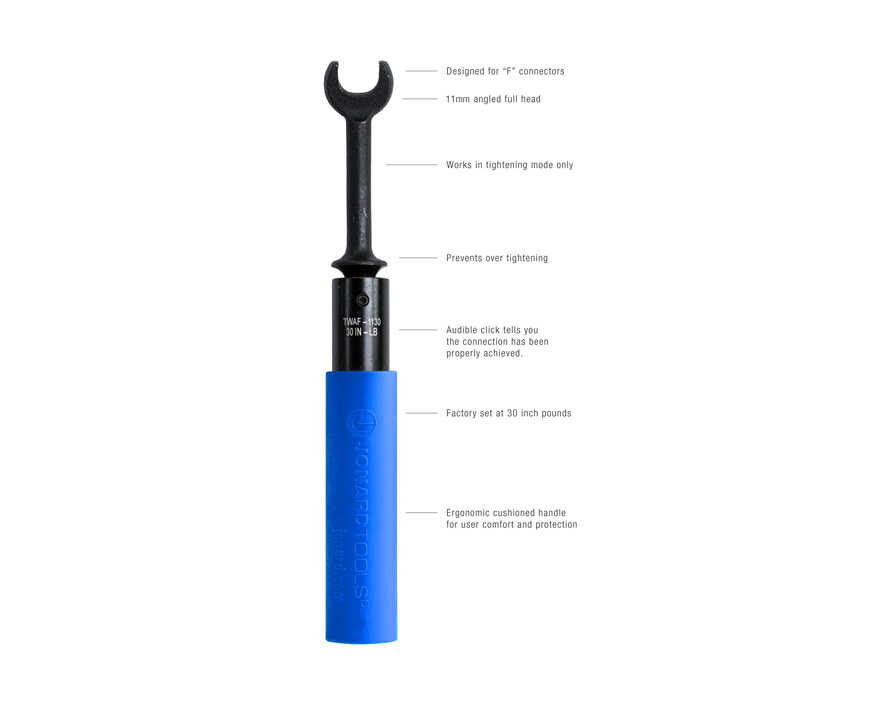

  • Provides a tighter fit when used on 7/16" F Connectors and 11 mm nuts and bolts
  • Ergonomically designed with an angled head and cushion grip for maximum leverage and comfort
  • Calibrated to 30 in-lb (3.89 N-m) to consistently meet most manufacturers' recommended torque requirements for their F Connectors
  • Audible click lets you know when the connector is fully torqued to 30 in-lb
  • Made of High Carbon Steel with a Black Oxide finish for maximum durability
  • Lifetime Warranty
Head TypeFull-Size Open Head
Torque30 in-lb (3.39 N-m)
Size7/16" F Connectors & 11 mm Nuts and Bolts
Head Angle15 degrees
MaterialHigh Carbon Alloy Steel
FinishBlack Oxide
Handle TypeErgonomic Cushion Grip
Handle ColorBlue
Length6(15.875cm)
Weight0.3 lb (138.016 g)
UPC #811490019560
Name
Description
Size
Downloads
File
Datasheet
0.4mb
