Jonard - TWAF-1220 - Torque Wrench, Full 1/2, 20In/Lb
Part number:
TWAF-1220
Price:

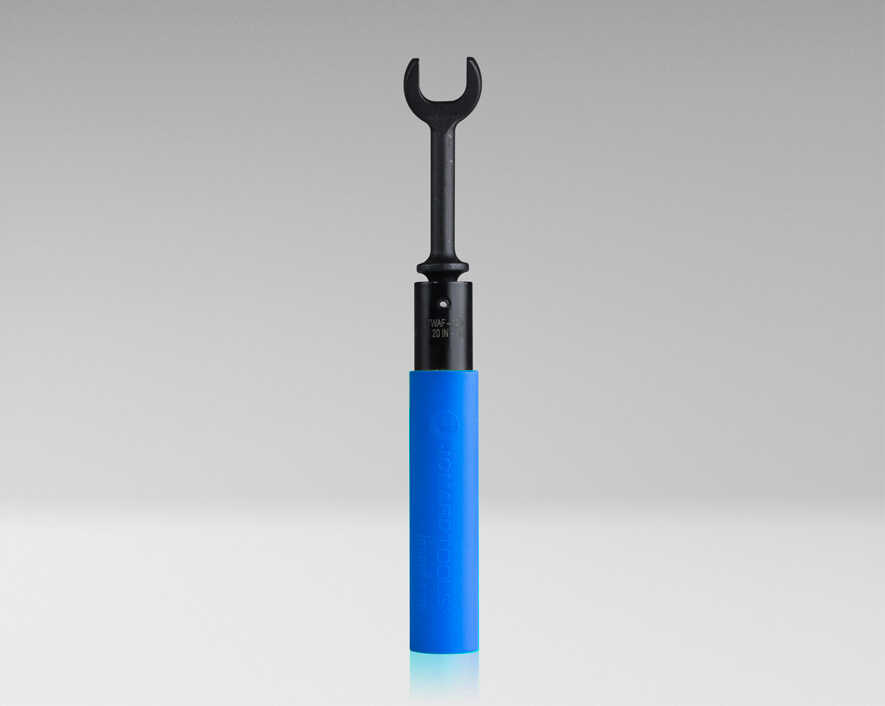

Designed for 1/2" F Connectors, this full-size open head torque wrench provides a perfectly calibrated amount of torque to prevent damage from over-tightening or signal loss from under-tightening. This torque wrench features the following:

  • Provides a snug fit when used on 1/2" F Connectors
  • Ergonomically designed with an angled head and cushion grip for maximum leverage and comfort
  • Calibrated to 20 in-lb (2.26 N-m) to consistently meet most manufacturers' recommended torque requirements for their F Connectors
  • Audible click lets you know when the connector is fully torqued to 20 in-lb
  • Made of High Carbon Steel with a Black Oxide finish for maximum durability
  • Lifetime Warranty
Head TypeFull-Size Open Head
Torque20 in-lb (2.26 N-m)
Size1/2" (12.7 mm)
Head Angle15 degrees
MaterialHigh Carbon Alloy Steel
FinishBlack Oxide
Handle TypeErgonomic Cushion Grip
Handle ColorBlue
Length6(16.1925cm)
Weight0.3 lb (135.292 g)
UPC #811490016453
Name
Description
Size
Downloads
File
Datasheet
0.4mb
