Jonard - TWAF-22176 - Torque Wrench, Full, 22 mm, 176 In/LB (20 Nm)
Part number:
TWAF-22176
Price:

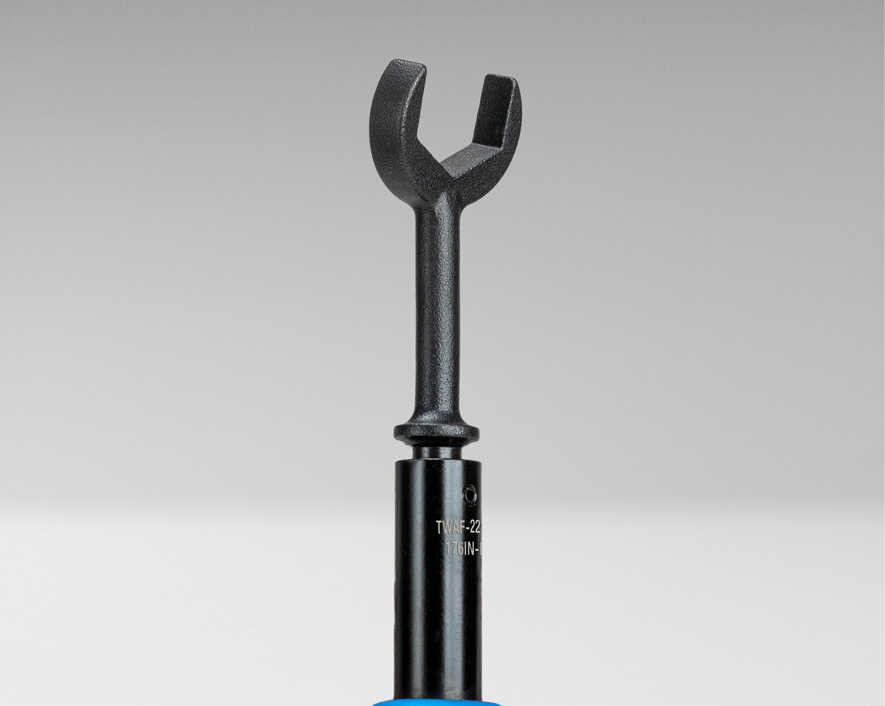

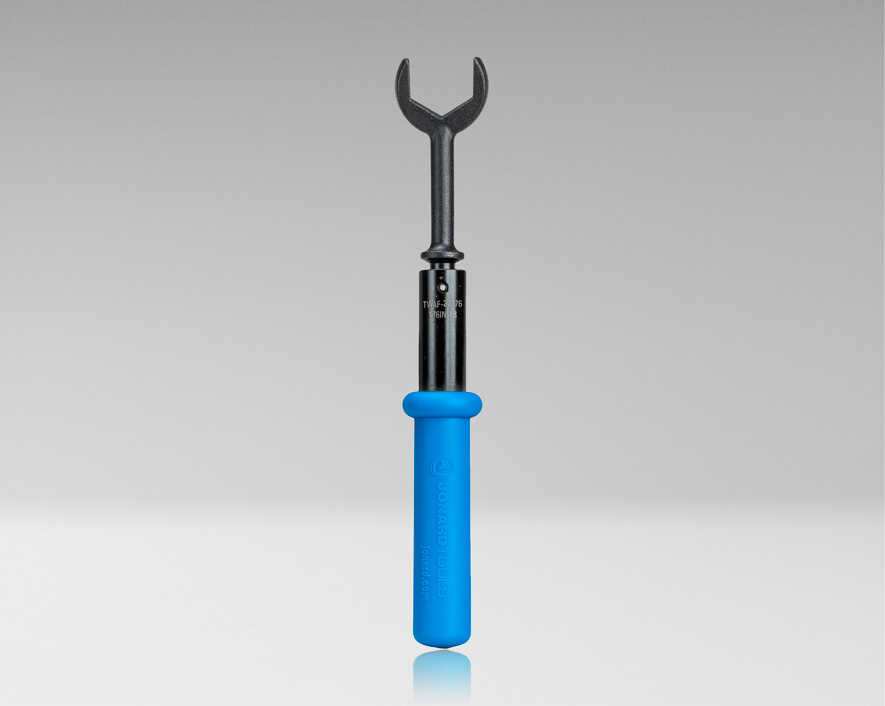

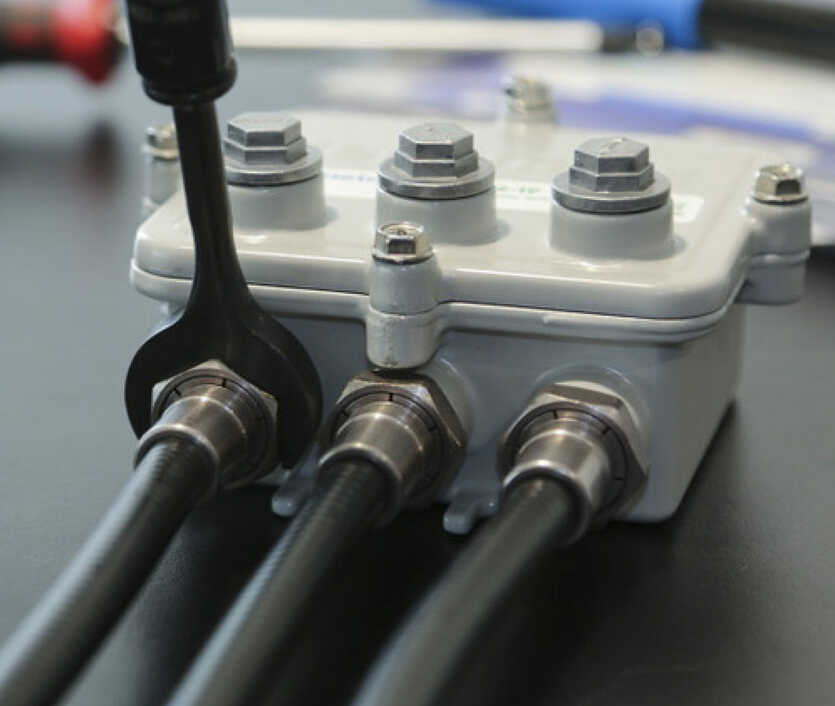

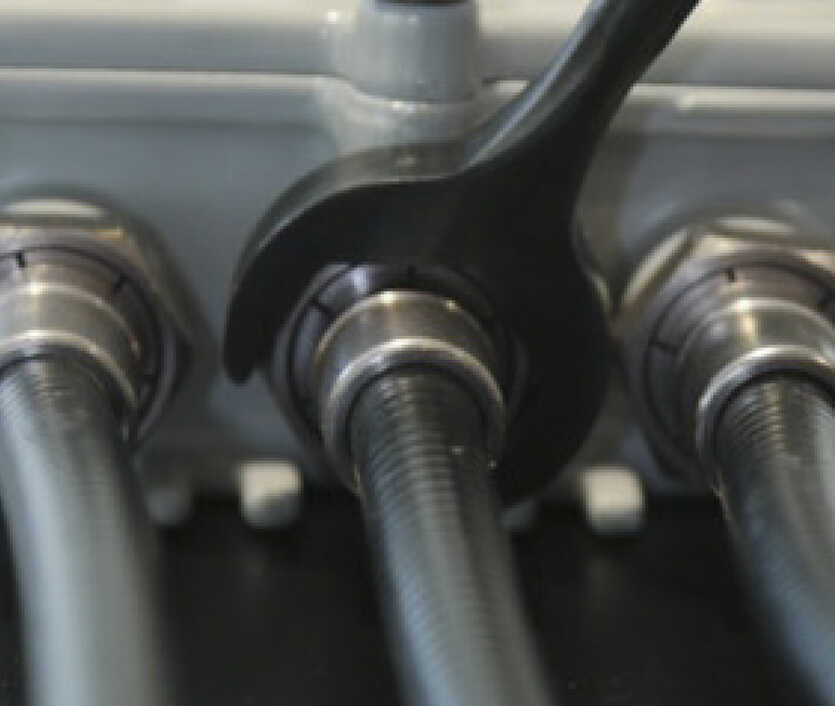

Designed for tightening 3.5-12 DIN connectors to 176 in-lb (20 N-m), this full-size open head torque wrench provides a perfectly calibrated amount of torque to prevent damage from over-tightening or signal loss from under-tightening. This torque wrench features the following:

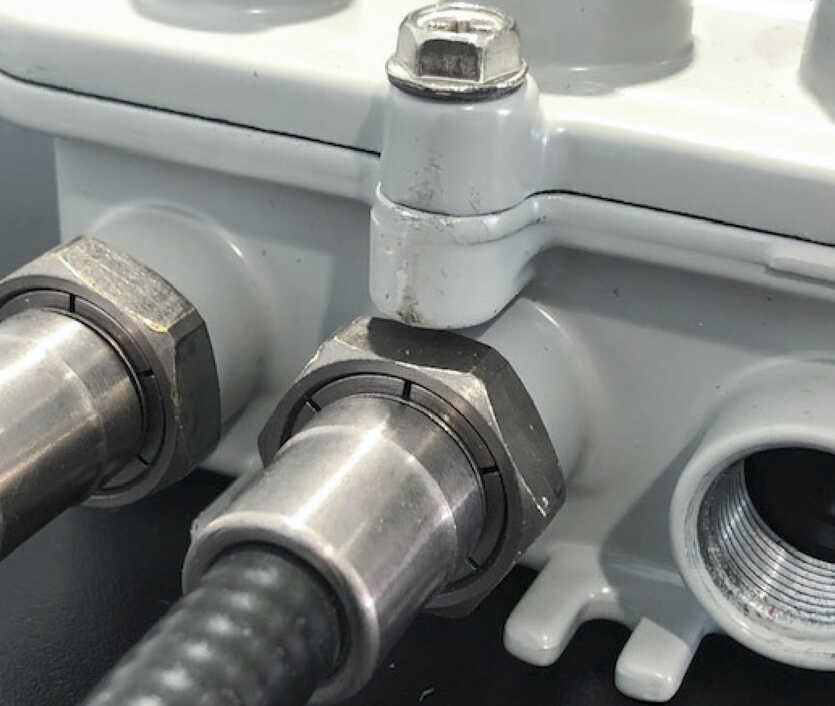

  • Provides a tighter fit when used on 22 mm connectors, nuts, and bolts
  • Ergonomically designed with an angled head and cushion grip for maximum leverage and comfort
  • Calibrated to 176 in-lb (20 N-m) to consistently meet most manufacturers' recommended torque requirements for their connectors
  • Audible click lets you know when the connector is fully torqued to 176 in-lb
  • Made of high carbon steel with a black oxide finish for maximum durability
  • Lifetime Warranty
Head TypeFull-Size Open Head
Torque176 in-lb (20 N-m)
Connector Type3.5-12 DIN
Size22 mm Connectors, Nuts, and Bolts

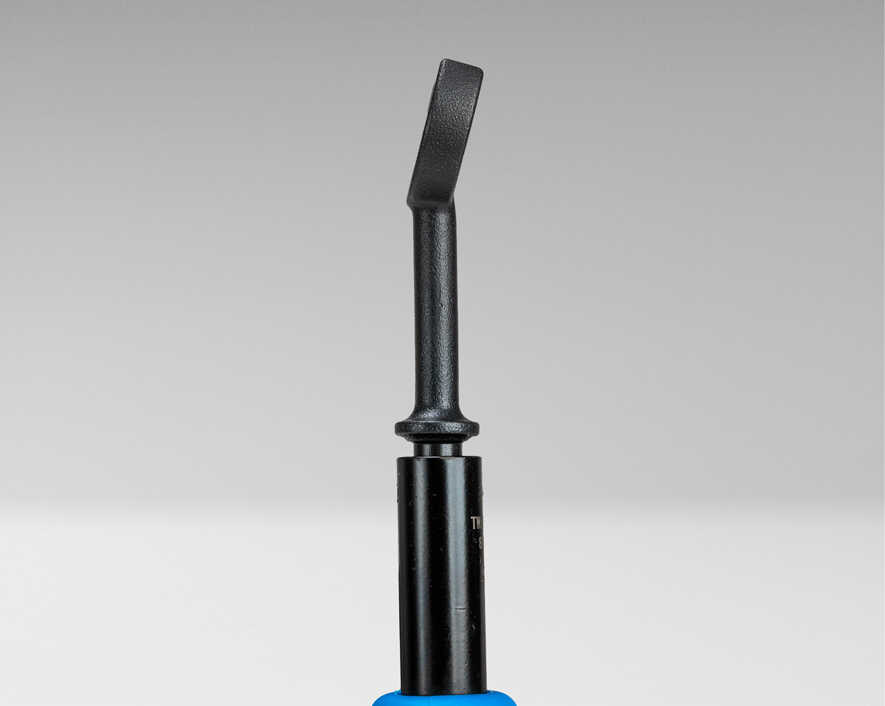

Head Angle15 degrees
MaterialHigh Carbon Alloy Steel
FinishBlack Oxide
Handle TypeErgonomic Cushion Grip
Handle ColorBlue
Dimensions8.38 in x 1.31 in x 1.11 in (21.27 cm x 3.31 cm x 2.82 cm)
Weight0.45 lb (206.116 g)
UPC #811490018563
Name
Description
Size
Downloads
File
Datasheet
0.4mb
