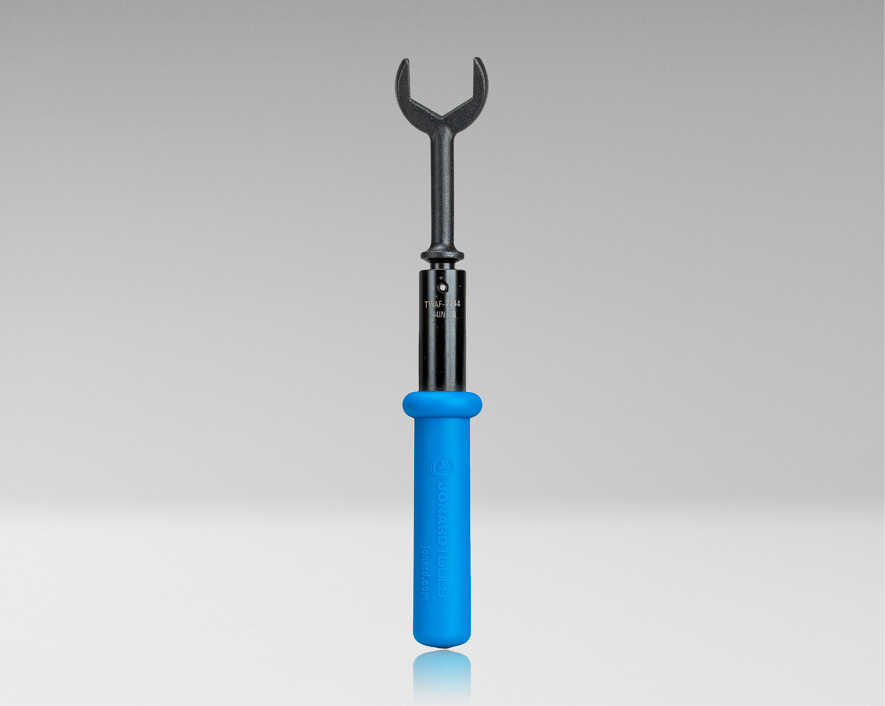

Jonard - TWAF-2244 - Torque Wrench, Full, 22 mm, 44 In-Lb
Part number:
TWAF-2244
Price:

Designed for tightening 4.3-10 DIN connectors to 44 in-lb (5 N-m), this full-size open head torque wrench provides a perfectly calibrated amount of torque to prevent damage from over-tightening or signal loss from under-tightening. This torque wrench features the following:

  • Provides a tighter fit when used on 22 mm connectors, nuts, and bolts
  • Ergonomically designed with an angled head and cushion grip for maximum leverage and comfort
  • Calibrated to 44 in-lb (5 N-m) to consistently meet most manufacturers' recommended torque requirements for their connectors
  • Audible click lets you know when the connector is fully torqued to 44 in-lb
  • Made of high carbon steel with a black oxide finish for maximum durability
  • Lifetime Warranty

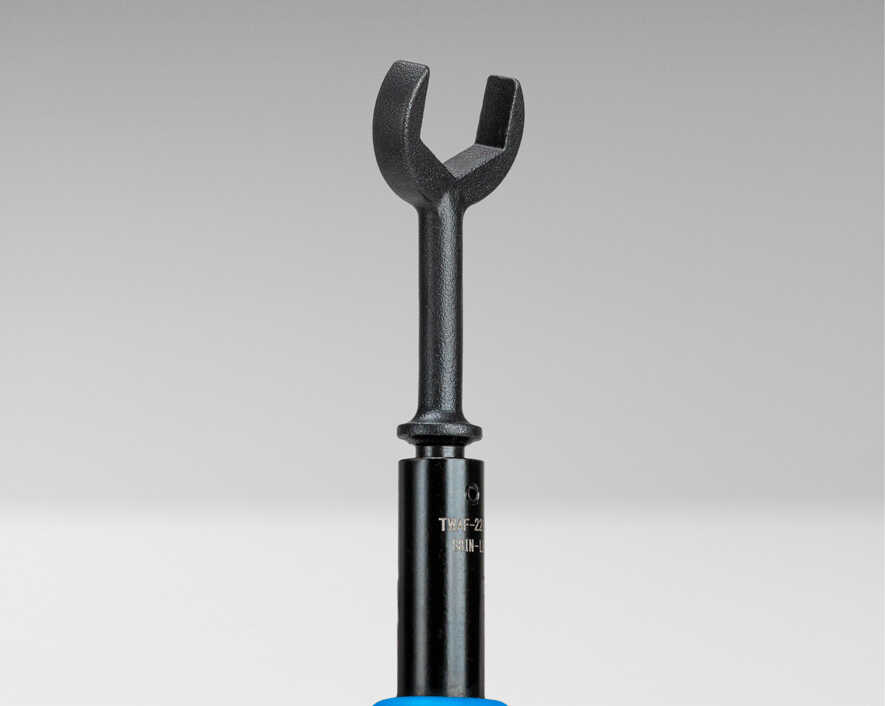

Head TypeFull-Size Open Head
Torque44 in-lb (5 N-m)
Connector Type4.3-10 DIN
Size22 mm Connectors, Nuts, and Bolts

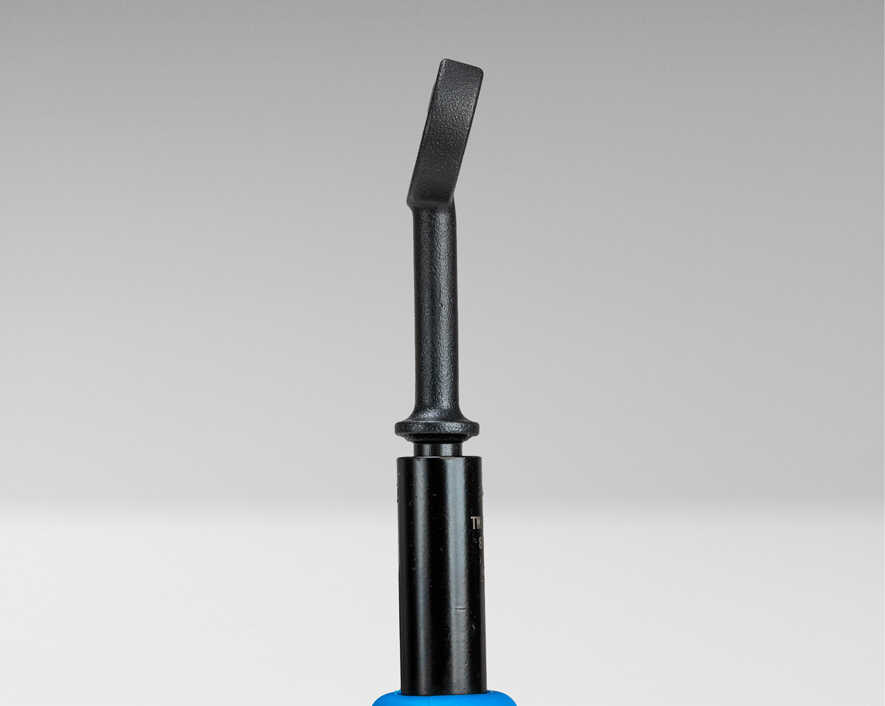

Head Angle15 degrees
MaterialHigh Carbon Alloy Steel
FinishBlack Oxide
Handle TypeErgonomic Cushion Grip
Handle ColorBlue
Length6(17.145cm)
Weight0.33 lb (151.636 g)
UPC #811490018280
