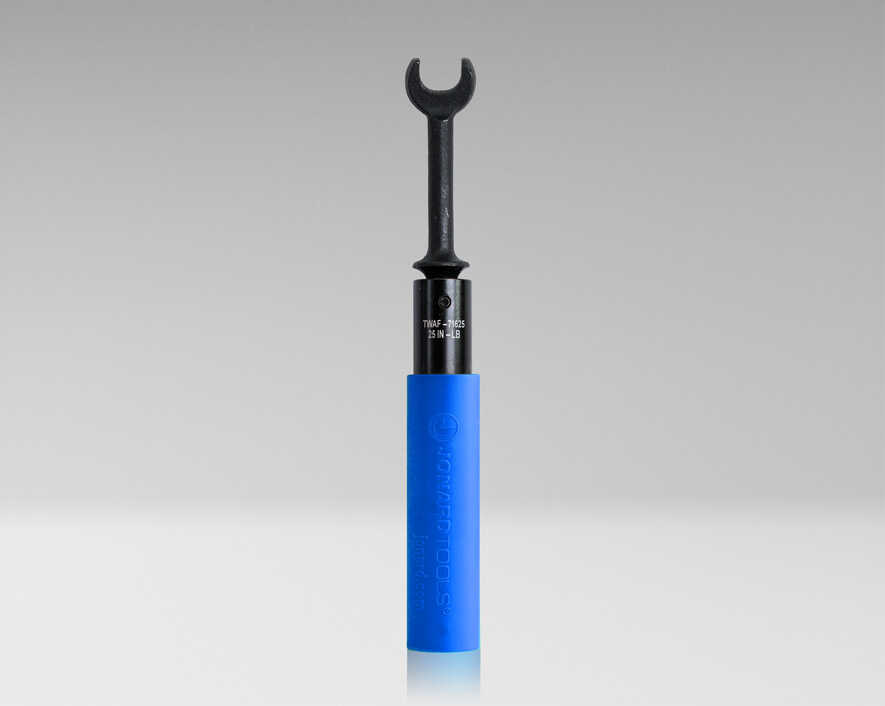

Jonard - TWAF-71625 - Torque Wrench, Full 7/16, 25In/Lb
Part number:
TWAF-71625
Price:

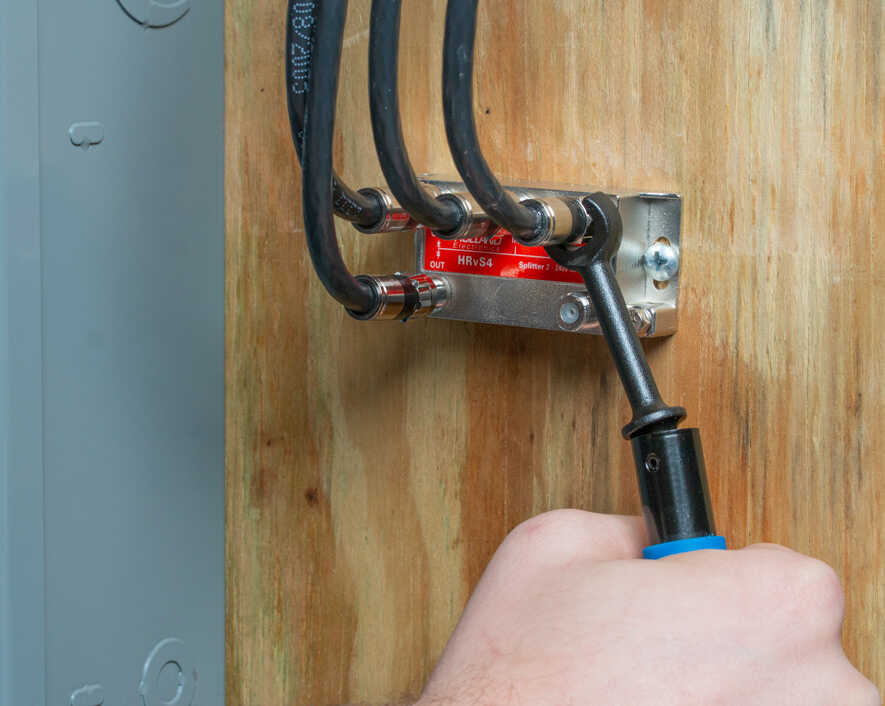

Designed for 7/16" F Connectors, this full-size open head torque wrench provides a perfectly calibrated amount of torque to prevent damage from over-tightening or signal loss from under-tightening. This torque wrench features the following:

  • Provides a snug fit when used on 7/16" F Connectors
  • Ergonomically designed with an angled head and cushion grip for maximum leverage and comfort
  • Calibrated to 25 in-lb (2.82 N-m) to consistently meet most manufacturers' recommended torque requirements for their F Connectors
  • Audible click lets you know when the connector is fully torqued to 25 in-lb
  • Made of High Carbon Steel with a Black Oxide finish for maximum durability
  • Lifetime Warranty
Head TypeFull-Size Open Head
Torque25 in-lb (2.82 N-m)
Size7/16" (11.11 mm)
Head Angle15 degrees
MaterialHigh Carbon Alloy Steel
FinishBlack Oxide
Handle TypeErgonomic Cushion Grip
Handle ColorBlue
Length6(15.875cm)
Weight0.31 lb (140.74 g)
UPC #811490019379
Name
Description
Size
Downloads
File
Datasheet
0.4mb
