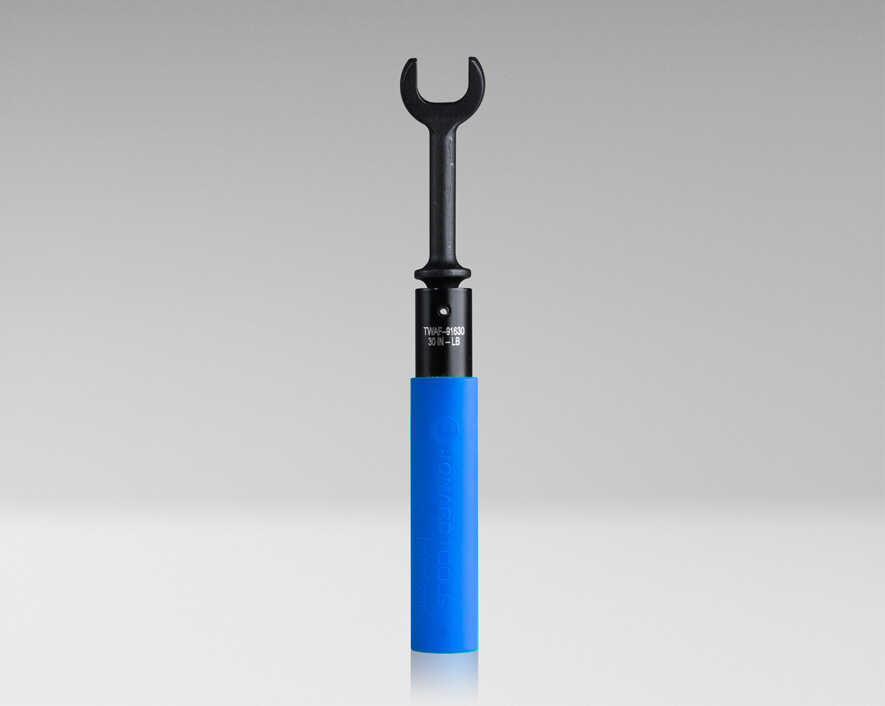

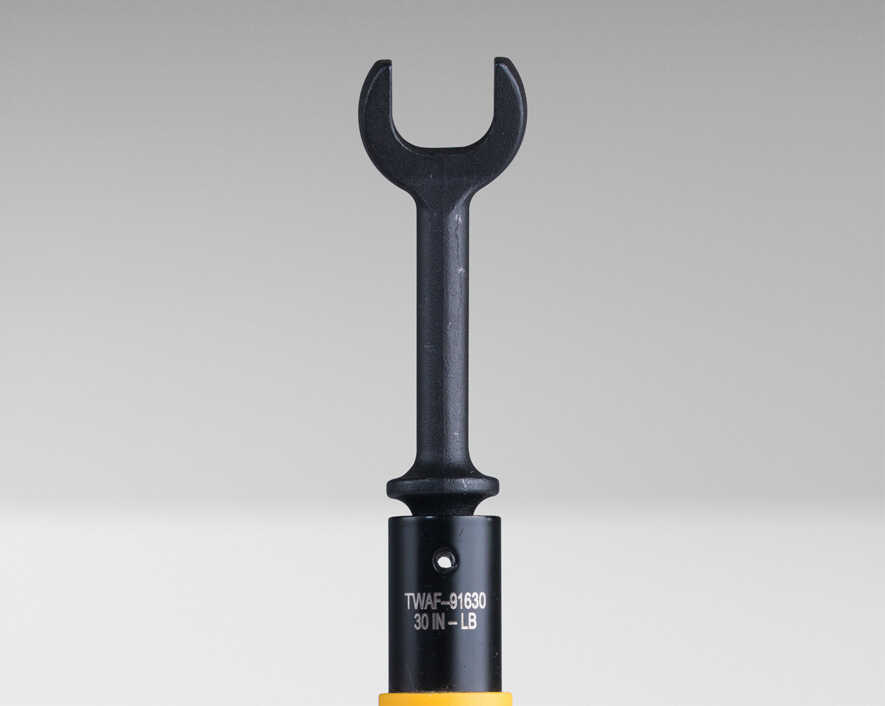

Jonard - TWAF-91630 - Torque Wrench, Full 9/16, 30In/Lb
Part number:
TWAF-91630
Price:

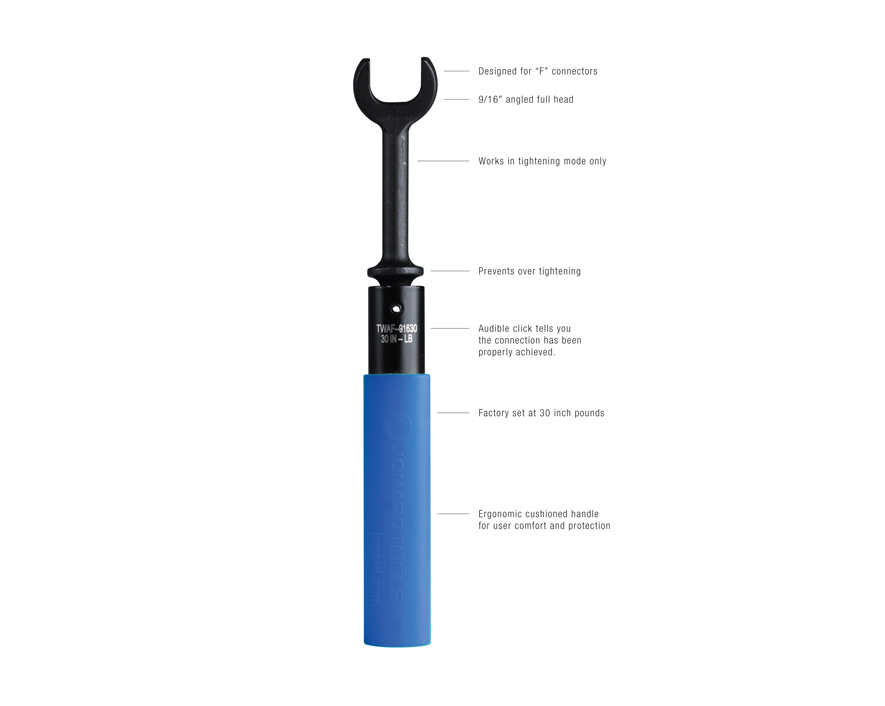

Designed for 9/16" F Connectors, this full-size open head torque wrench provides a perfectly calibrated amount of torque to prevent damage from over-tightening or signal loss from under-tightening. This torque wrench features the following:

  • Provides a snug fit when used on 9/16" F Connectors
  • Ergonomically designed with an angled head and cushion grip for maximum leverage and comfort
  • Calibrated to 30 in-lb (3.39 N-m) to consistently meet most manufacturers' recommended torque requirements for their F Connectors
  • Audible click lets you know when the connector is fully torqued to 30 in-lb
  • Made of High Carbon Steel with a Black Oxide finish for maximum durability
  • Lifetime Warranty
Head TypeFull-Size Open Head
Torque30 in-lb (3.39 N-m)
Size9/16" (14.29 mm)
Head Angle15 degrees
MaterialHigh Carbon Alloy Steel
FinishBlack Oxide
Handle TypeErgonomic Cushion Grip
Handle ColorBlue
Length6(16.51cm)
Weight0.31 lb (138.924 g)
UPC #811490016576
Name
Description
Size
Downloads
File
Datasheet
0.4mb
