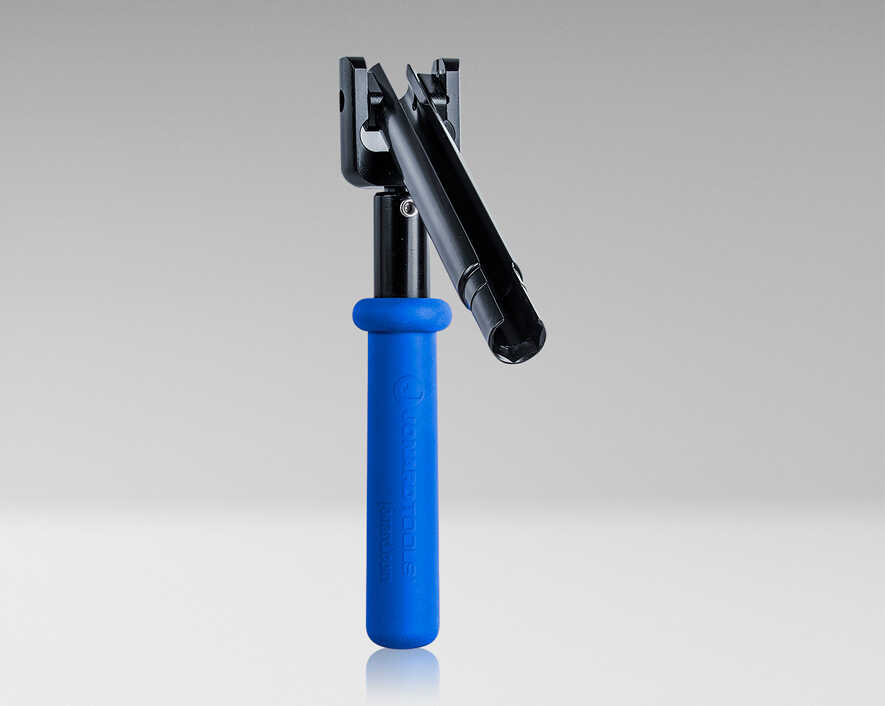

Jonard - TWAFST-71630 - Torque Wrench With Sst 7/16-degree 30 In./Lb
Part number:
TWAFST-71630
Price:

Designed to reach shielded F connector fittings with a preset torque of 30 in-lb, this right angle swivel torque wrench provides a perfectly calibrated amount of torque to prevent damage from over-tightening or signal loss from under-tightening. This torque wrench features the following:

  • Provides a snug fit when used on 7/16" F Connectors
  • Security shield is permanently attached and pivots in 90° increments
  • Calibrated to 30 in-lb (3.39 N-m) to consistently meet most manufacturers' recommended torque requirements for their F Connectors
  • Audible click indicates when the connector is fully torqued to 22 in-lb
  • Made of high carbon steel with a black oxide finish for maximum durability
  • Lifetime Warranty
Head TypeSwivel
Torque30 in-lb (3.39 N-m)
Size7/16" (11.11 mm) Shield
Security Shield Length4 3/4" (120 mm)
MaterialHigh Carbon Alloy Steel
FinishBlack Oxide
Handle TypeErgonomic Cushion Grip
Handle ColorBlue
Dimensions11 in x 1.33 in x 1.1 in (27.94 cm x 3.38 cm x 2.79 cm)
Weight0.73 lb (331.42 g)
UPC #811490016651
