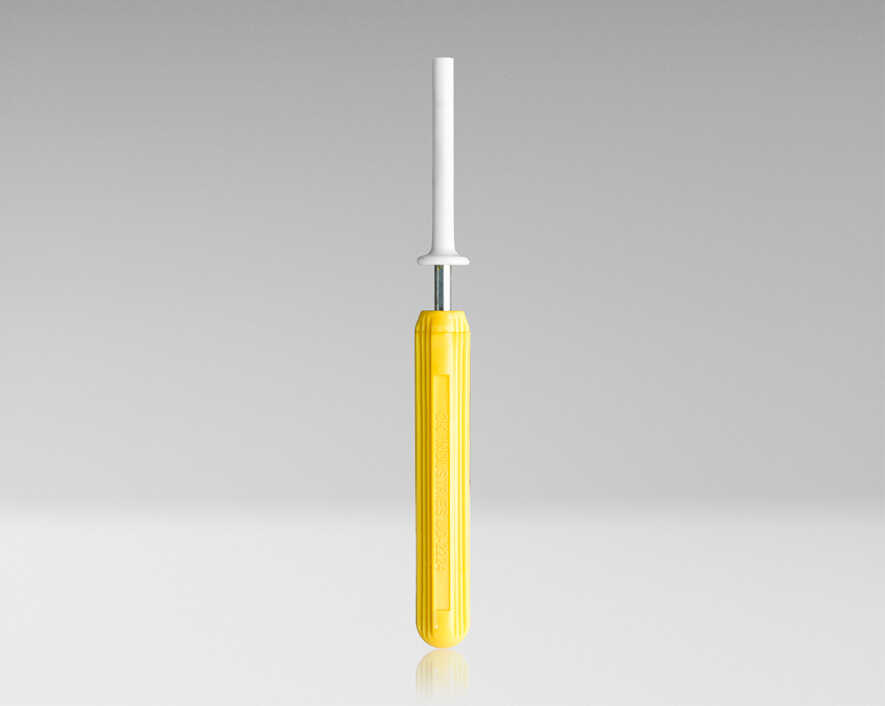

Jonard - UD-2224 - Sleeved Unwrapping Tool, 20-26 Awg
Part number:
UD-2224
Price:

Designed to unwrap wire on binding posts in the left-hand or right-hand direction, this sleeved hand wrap tool is perfect for unwrapping 20-26 AWG (0.81 mm-0.40 mm) wire quickly and easily. This unwrap tool features the following:

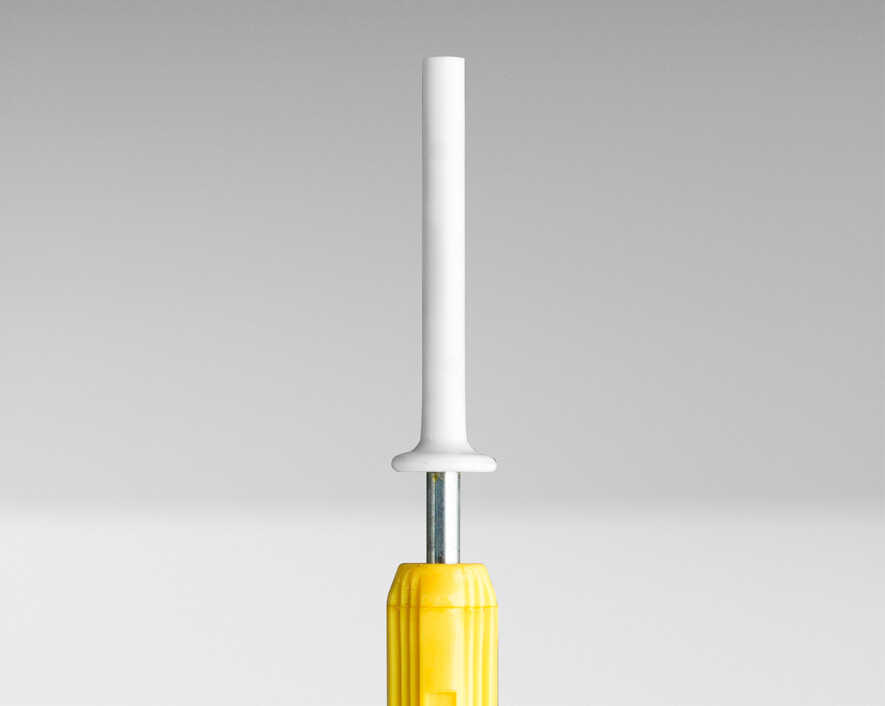

  • Funnel-shaped spring-loaded retractable sleeve has special internal threads to keep unwrapped wire coiled and prevent shorts
  • Simple two step operation: Push the tool onto a wrapped wire then pull back shield to remove the wire
  • Unwraps wire in the left-hand or right-hand direction
  • Molded sleeve and stainless steel shaft for long-life and durability
Unwrap Wire Gauge20-26 AWG (0.81 mm-0.40 mm)
Unwrap DirectionLeft-hand, right-hand
Terminal Hole Diameter0.070" (1.77 mm)
Terminal Hole Depth2.36" (60 mm)
Outside Diameter1.95" (4.95 mm)
Wrap Post Size0.045" (1.14 mm)
Handle ColorYellow
Length5(13.9573cm)
Weight0.04 lb (16.344 g)
UPC #811490010604
