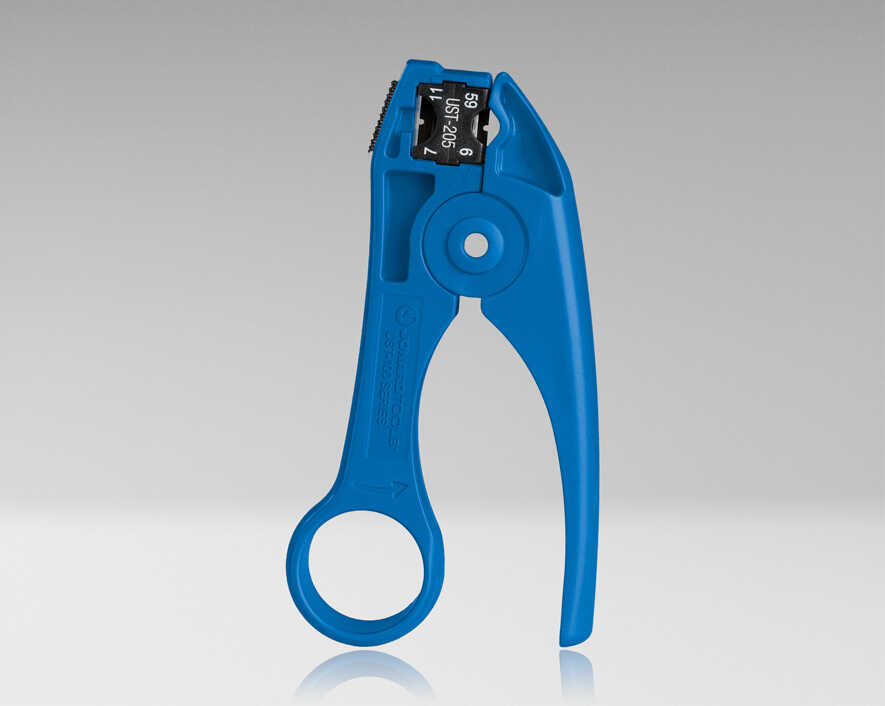

Jonard - UST-100 - RG59/6 & 7/11 Coax Stripping Tool
Part number:
UST-100
Price:

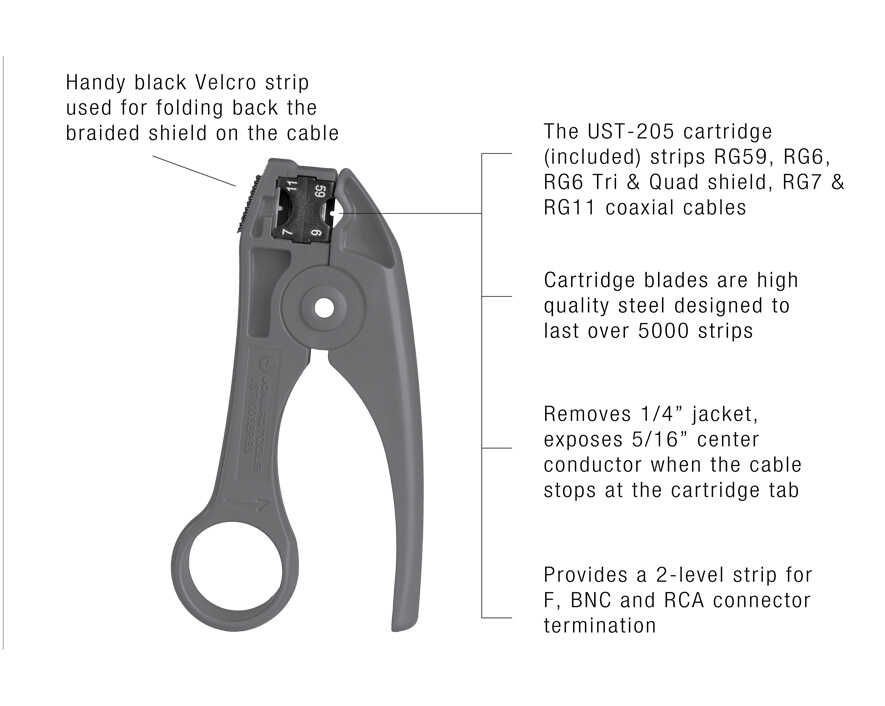

The Jonard Tools UST-100 COAX stripping tool is designed to strip RG59, RG6, RG6 Tri & Quad Shield, N48, RG7, and RG11 coaxial cables for quick and easy termination. This COAX stripping tool features the following:

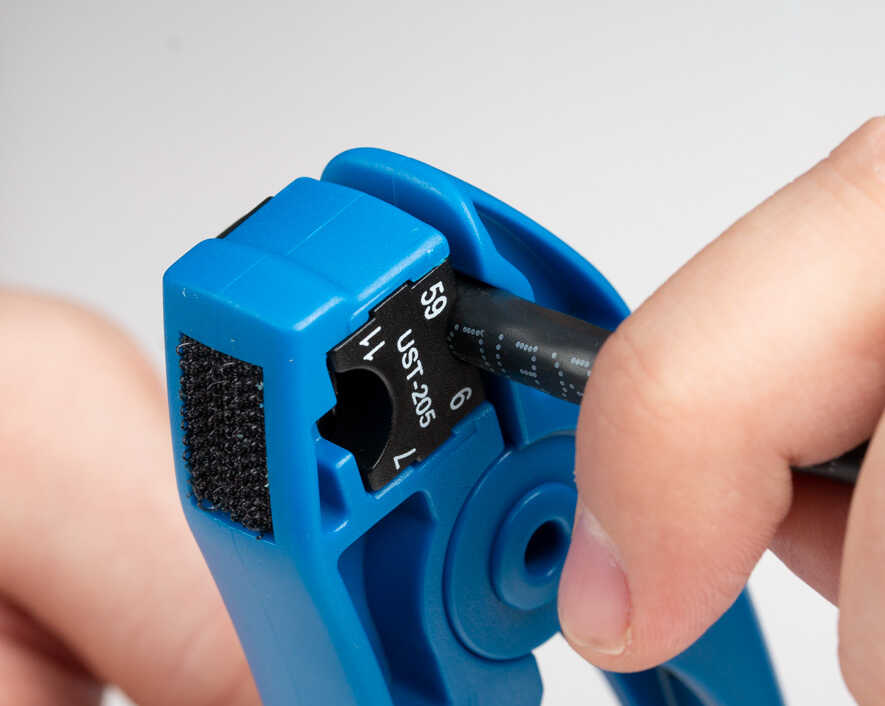

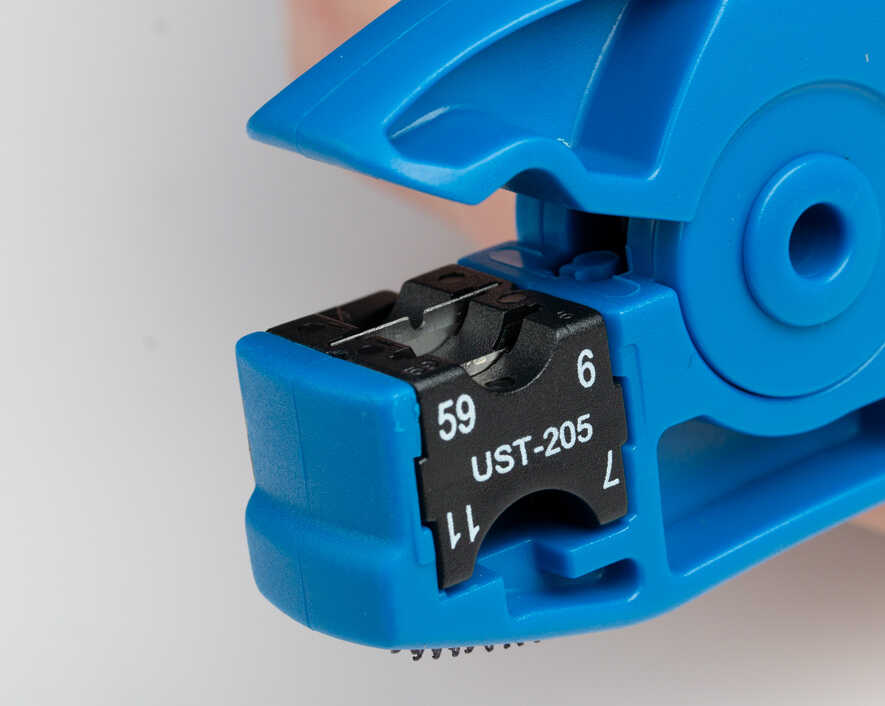

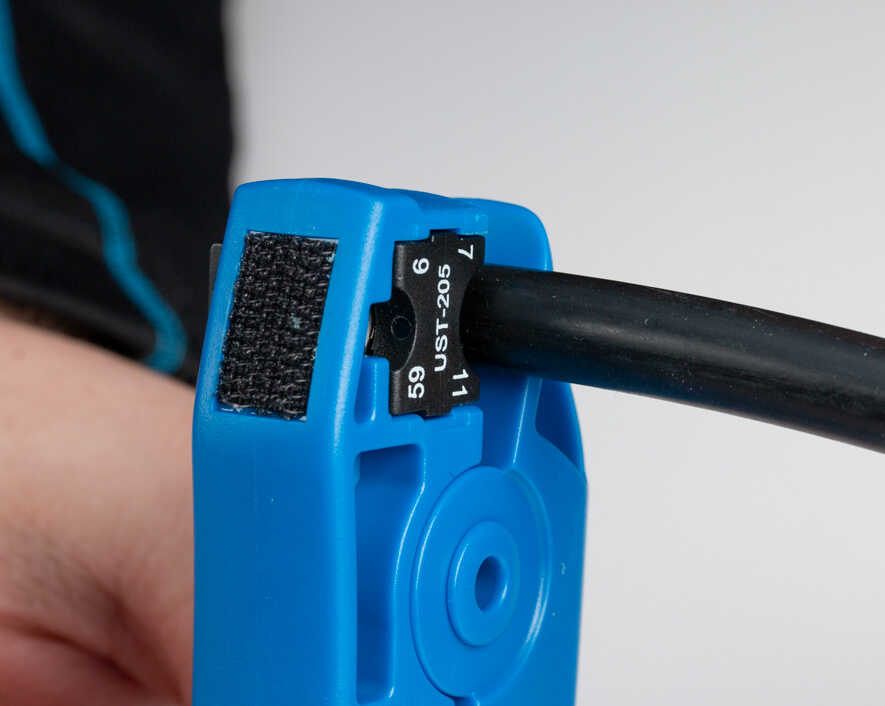

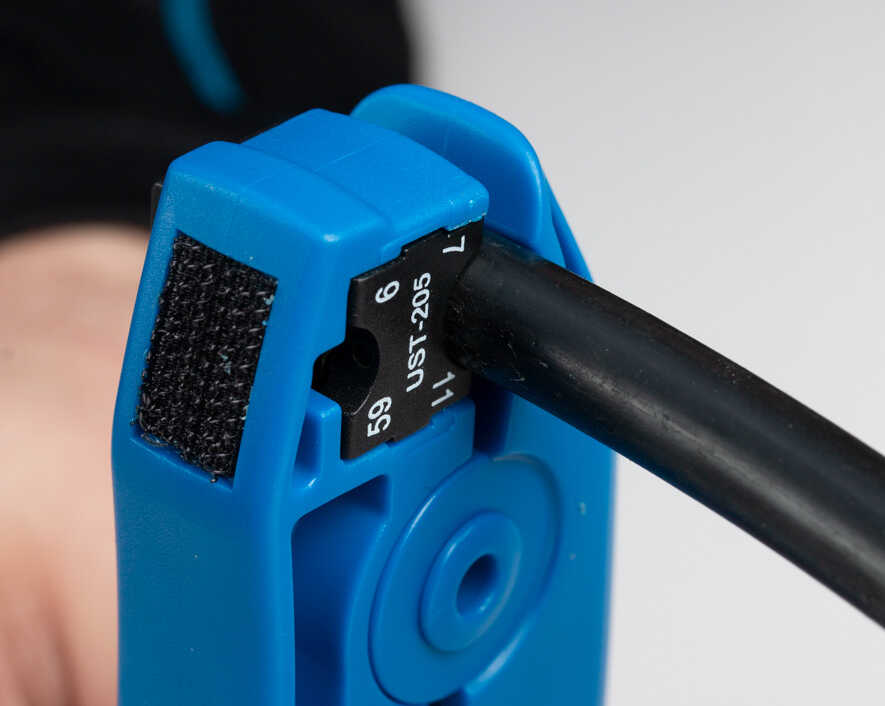

  • Included blade cartridge (UST-205) provides a 2-level strip for F, BNC, and RCA connector termination
  • High carbon steel blades last over 5,000 strips
  • Cartridge is reversible for ambidextrous use

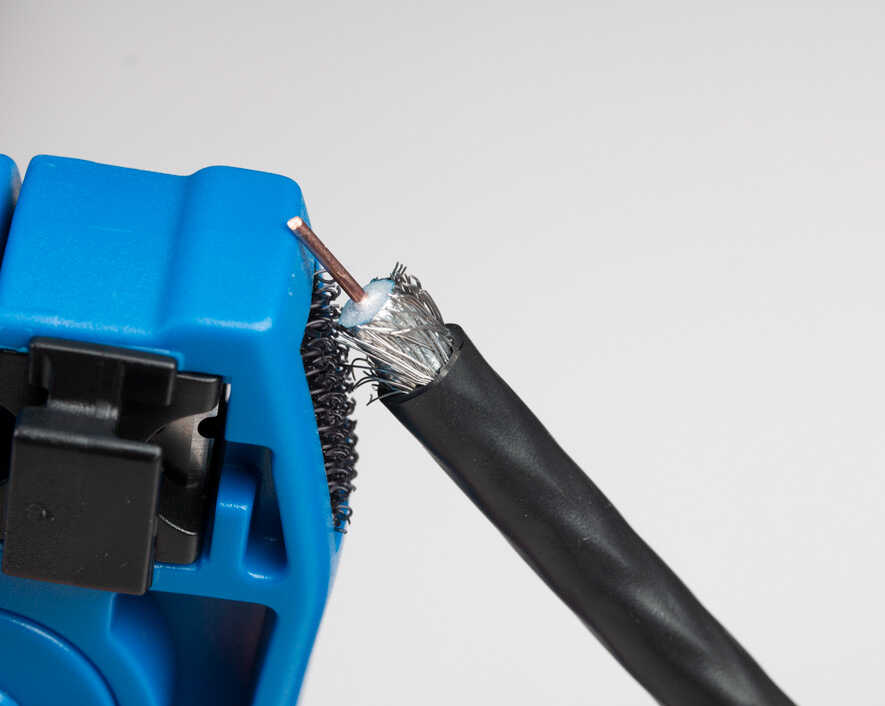

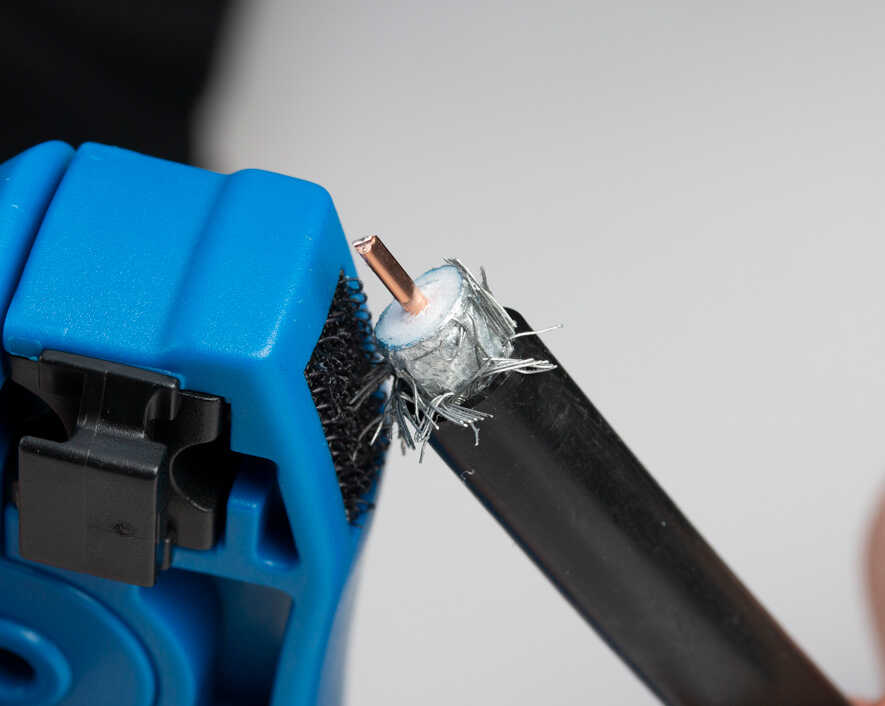

  • Hook and Loop strip on bottom of the tool folds back the braided shield on the cable with ease
  • Large finger loop provides smooth rotation during use

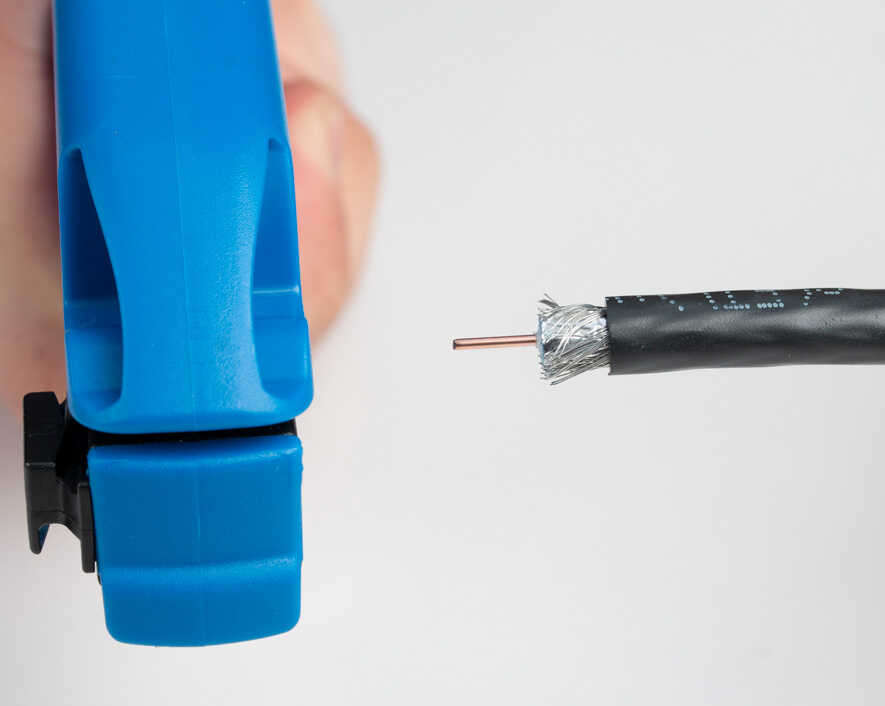

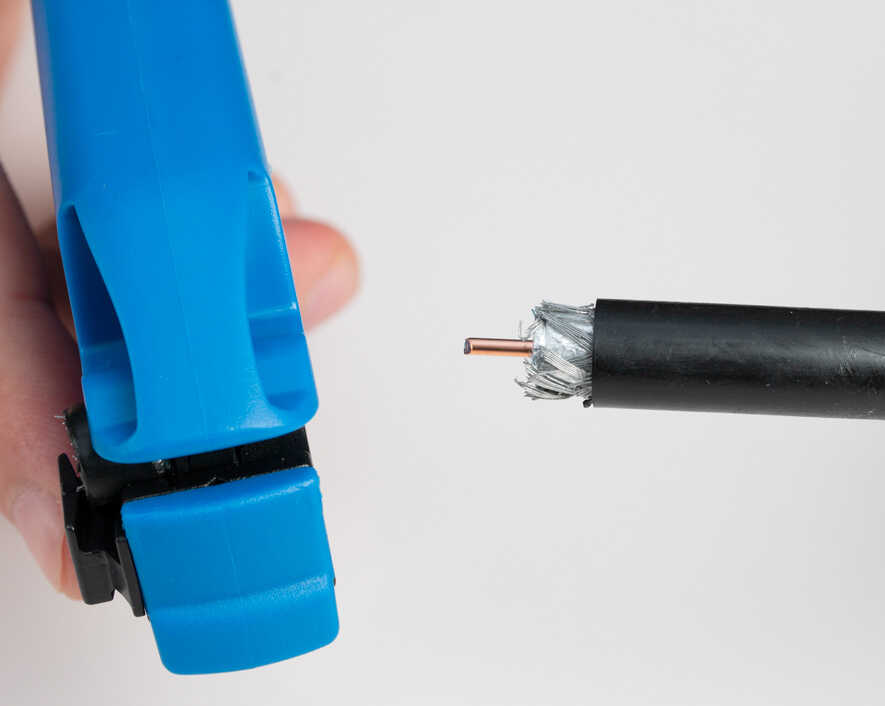

  • Stripping action removes 1/4" of jacket and 5/16" of shield and dielectric, which exposes the center conductor
Cable TypeCOAX
Cable SizeRG59/6/N48 & RG7/11
Handle ColorBlue
Product Main ColorBlue
Dimensions4.97 in x 2.63 in x 1 in (12.63 cm x 6.68 cm x 2.54 cm)
Weight0.1 lb (47.216 g)
UPC #811490012394
