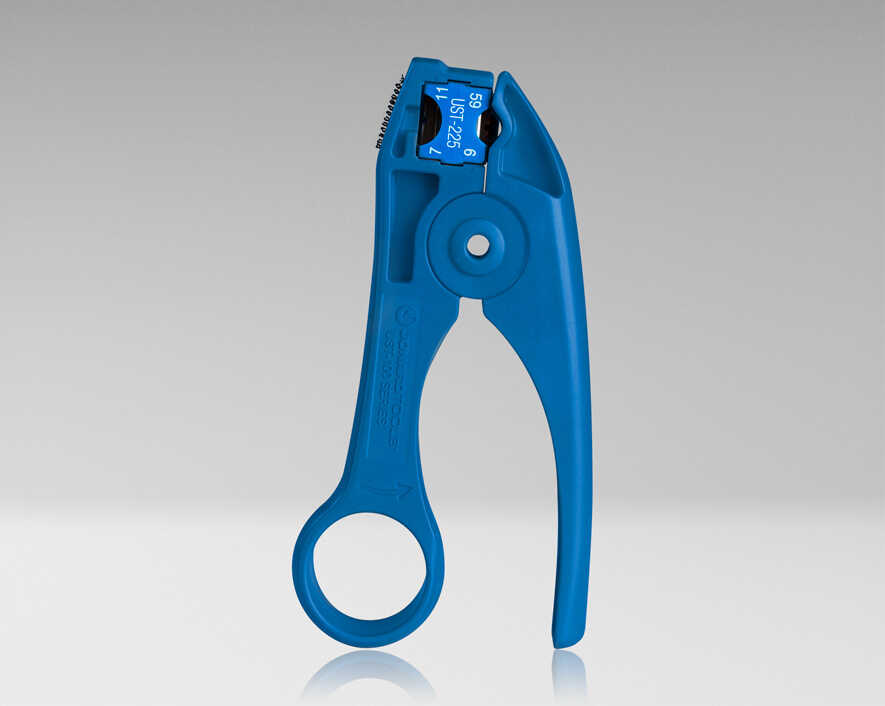

Jonard - UST-125 - Coax Stripping Tool With UST-225 Blade

Part number:
UST-125
Price:

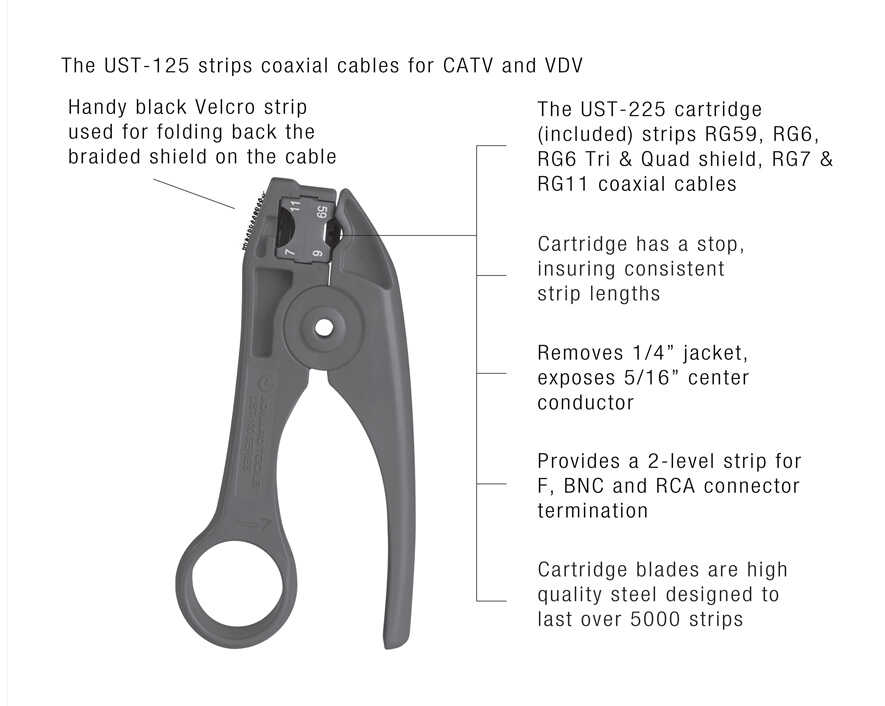

The Jonard Tools UST-125 COAX stripping tool is designed to strip RG59 & RG6 Standard, Tri & Quad Shield, N48, RG7, and RG11 coaxial cables for quick and easy termination. This COAX stripping tool features the following:

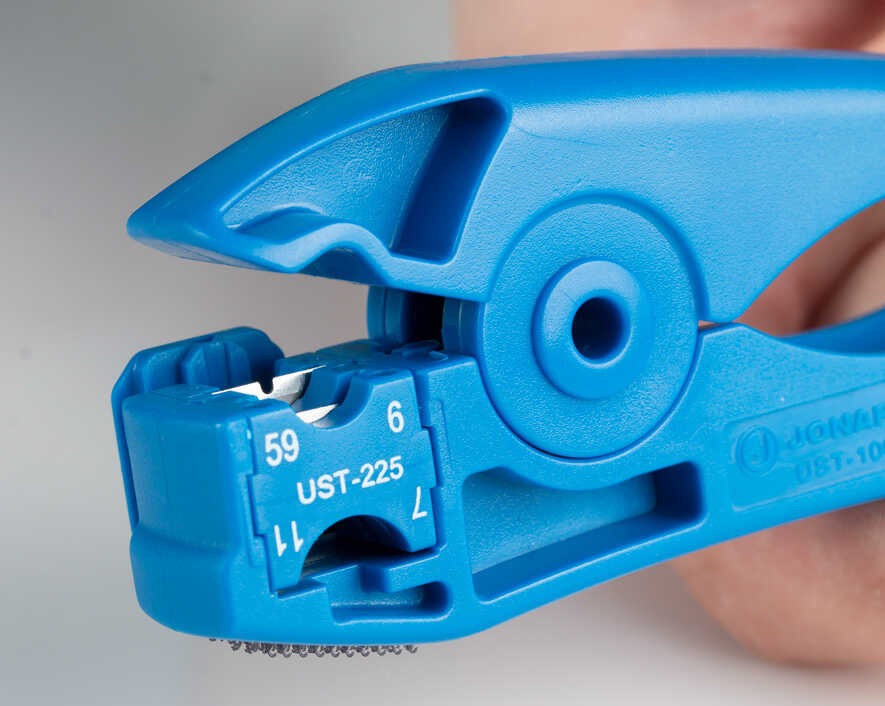

  • Included blade cartridge (UST-225) provides a 2-level strip for F, BNC, and RCA connector termination
  • High carbon steel blades last over 5,000 strips

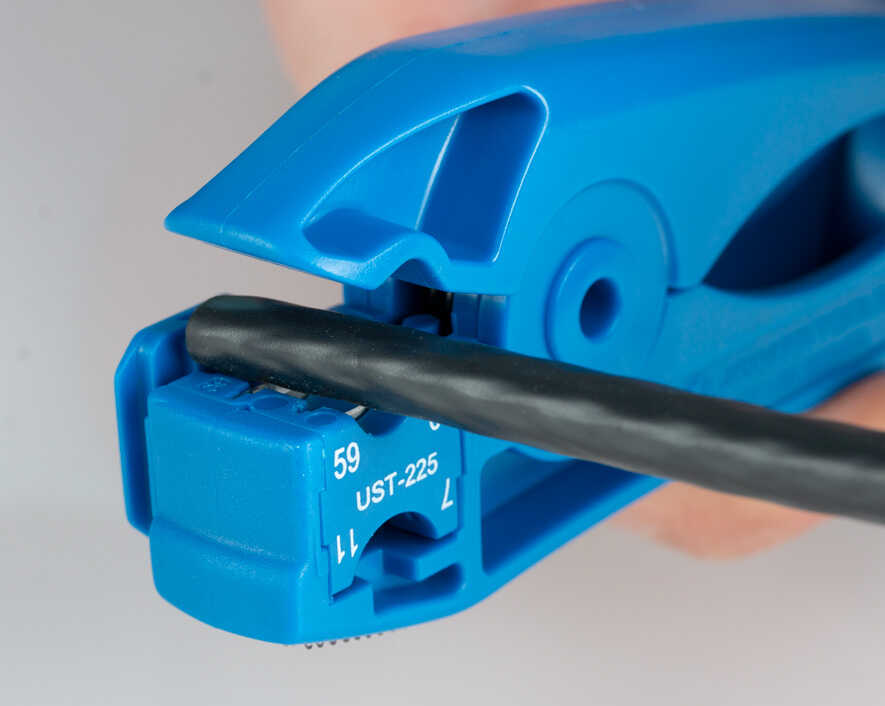

  • Cable stop on both sides of the cartridge ensures precise stripping without need to make adjustments
  • Cartridge is reversible for ambidextrous use

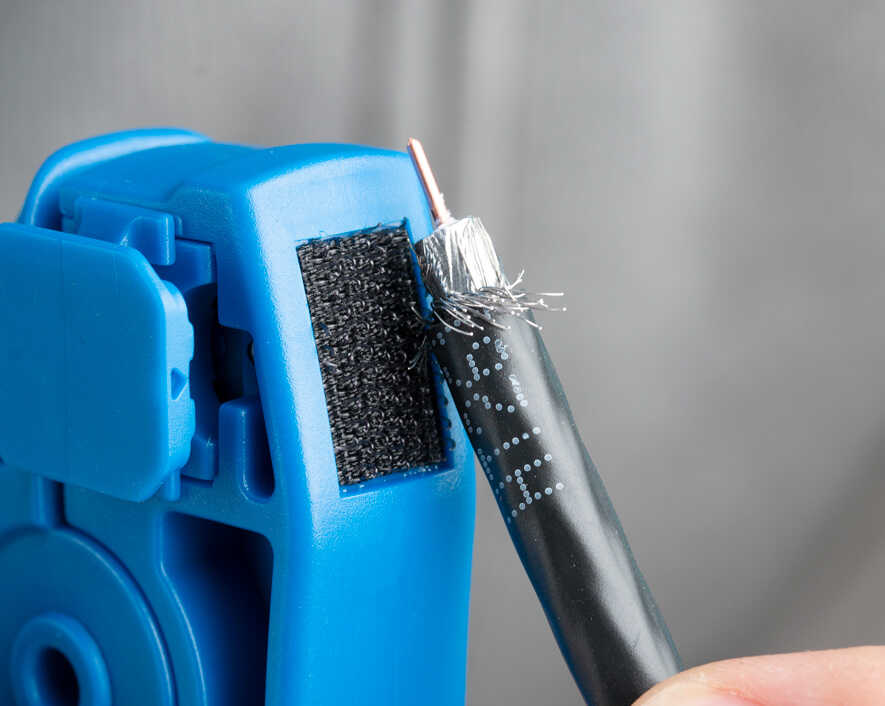

  • Hook and Loop strip on bottom of the tool folds back the braided shield on the cable with ease
  • Large finger loop provides smooth rotation during use

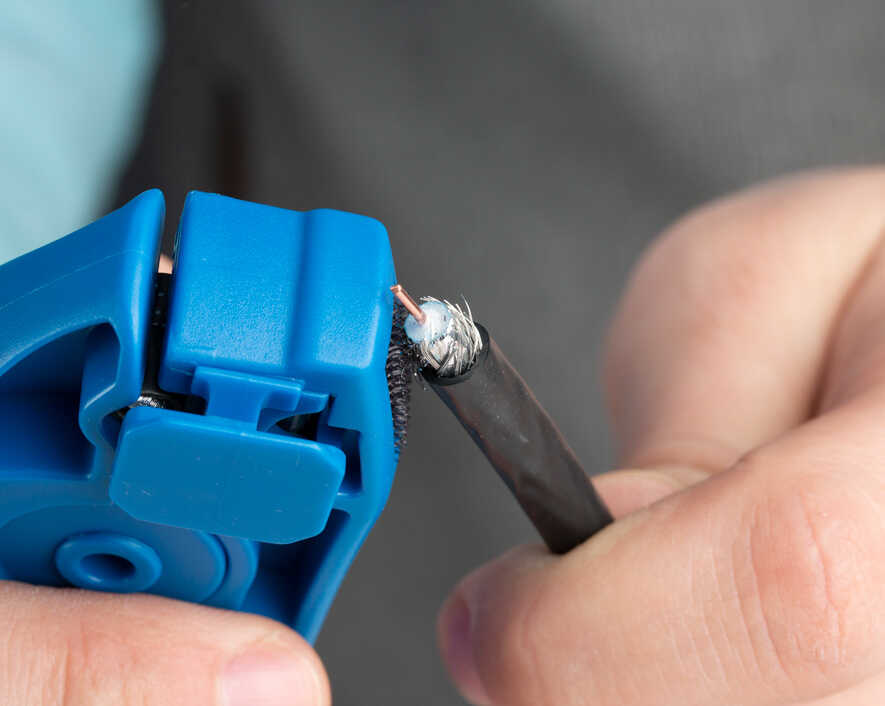

  • Stripping action removes 1/4" of jacket and 5/16" of shield and dielectric, which exposes the center conductor
Cable TypeCOAX
Cable SizeRG59/6/N48 & RG7/11
Handle ColorBlue
Product Main ColorBlue
Dimensions4.98 in x 2.63 in x 1 in (12.65 cm x 6.68 cm x 2.54 cm)
Weight0.11 lb (48.124 g)
UPC #811490016064
