Jonard - UST-135 - Coax Strip Tool, RG11 Coax W&Wo Stop
Part number:
UST-135
Price:

The Jonard Tools UST-135 COAX stripping tool is designed to strip RG7 and RG11 coaxial cables for quick and easy termination. This COAX stripping tool features the following:

  • Included blade cartridge (UST-235) provides a 2-level strip for RG7 and RG11 Coaxial cables
  • High carbon steel blades last over 5,000 strips

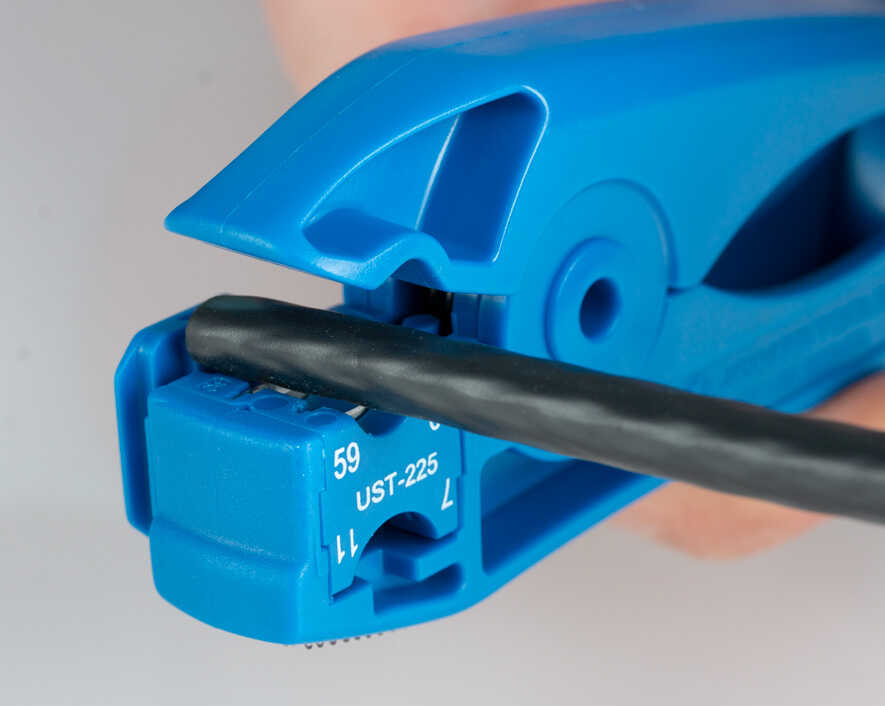

  • Cable stop on one side of the cartridge ensures precise stripping without need to make adjustments
  • Cartridge is reversible for ambidextrous use

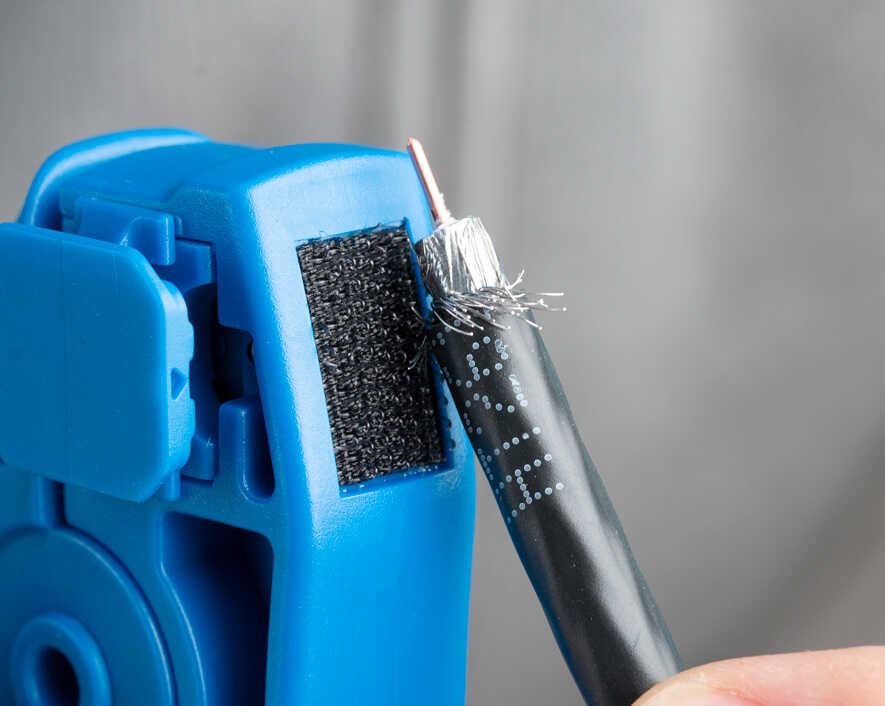

  • Hook and Loop strip on bottom of the tool folds back the braided shield on the cable with ease
  • Large finger loop provides smooth rotation during use

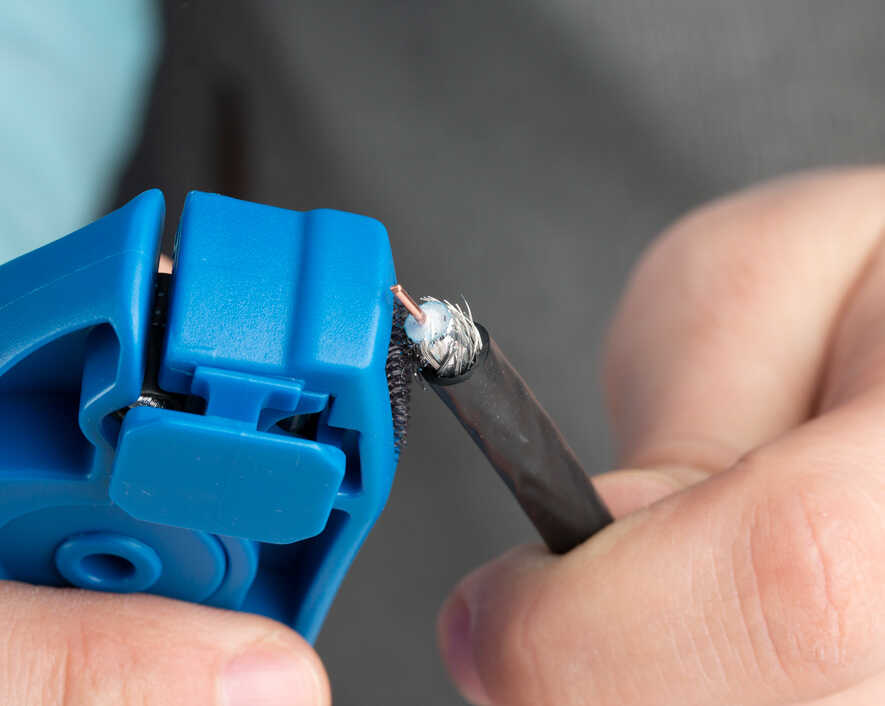

  • Stripping action removes 1/4" of jacket and 5/16" of shield and dielectric, which exposes the center conductor
Cable TypeCOAX
Cable SizeRG7 and RG11
Handle ColorBlue
Product Main ColorBlue
Dimensions4.97 in x 2.63 in x 1 in (12.63 cm x 6.68 cm x 2.54 cm)
Weight0.1 lb (47.216 g)
UPC #811490017689
