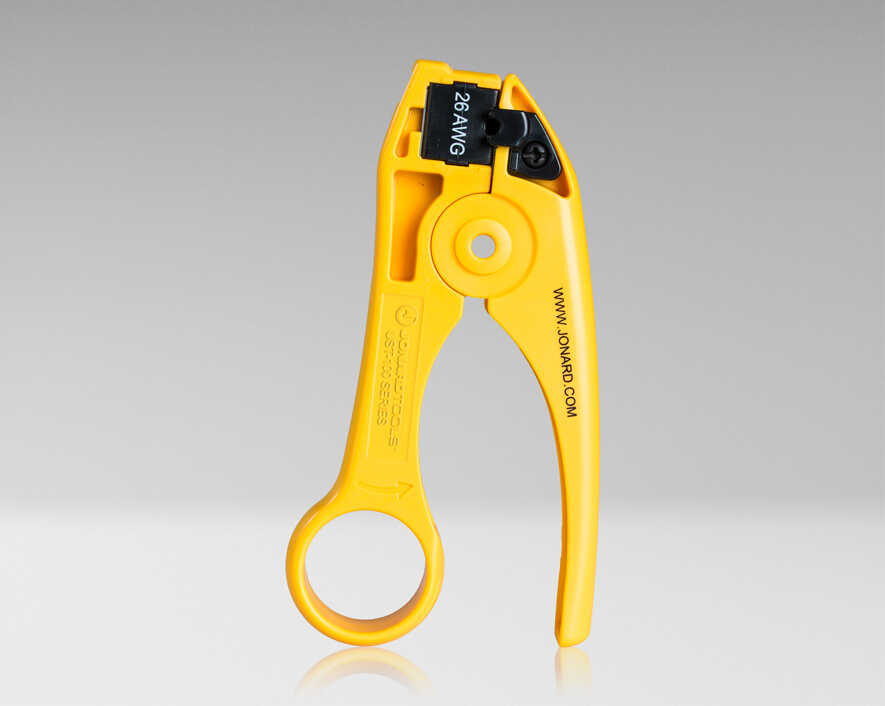

Jonard - UST-175 - 3 Step Mini-Coax Stripper
Part number:
UST-175
Price:

The Jonard Tools UST-175 COAX stripping tool is a three-level COAX stripper used with mini coaxial cable (CommScope 73508 and similar cables) for quick and easy termination. This COAX stripping tool features the following:

  • Included blade cartridge (UST-220) provides a 3-level strip for 3-step strip connector termination, such as the ITT Cannon W58-124-9019-910 BNC crimp connector
  • High carbon steel blades last over 5,000 strips
  • Cartridge is reversible for ambidextrous use
  • Hook and Loop strip on bottom of the tool folds back the braided shield on the cable with ease
  • Large finger loop provides smooth rotation during use
  • 1st Level removes 0.625" of jacket, 2nd Level exposes 0.156" of dielectric and 3rd Level exposes 0.156" of center conductor
Cable TypeCOAX
Cable SizeMini COAX
Handle ColorYellow
Product Main ColorYellow
Dimensions4.97 in x 2.62 in x 1.03 in (12.62 cm x 6.65 cm x 2.6 cm)
Weight0.11 lb (49.032 g)
UPC #811490015319
