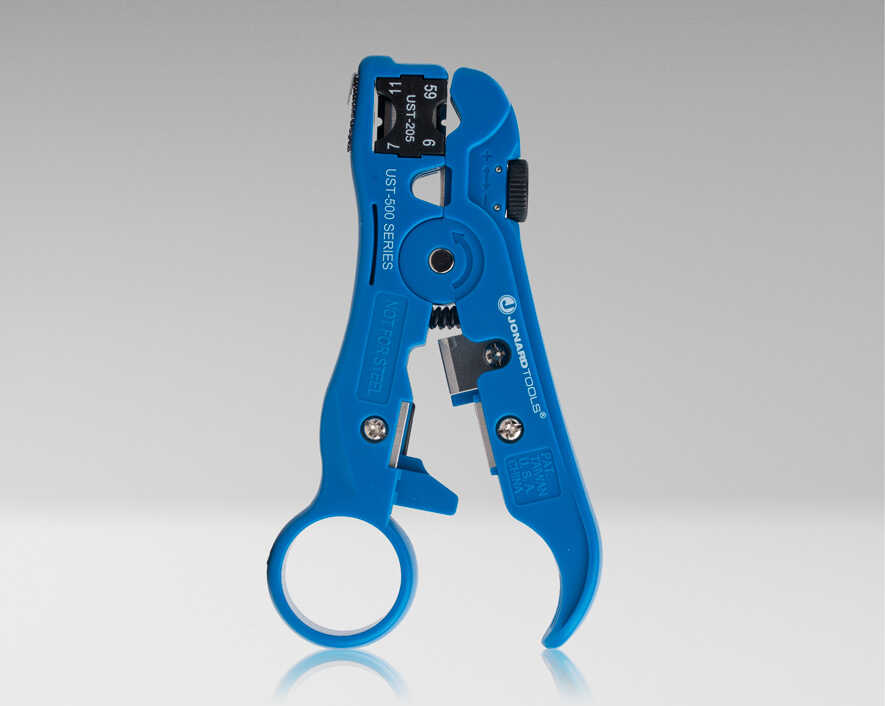

Jonard - UST-500 - Universal Cable Stripping Tool
Part number:
UST-500
Price:

The Jonard Tools UST-500 cable stripping tool is designed to strip COAX, Network Cables, and Telephone Cables for quick and easy termination. This universal stripping tool features the following:

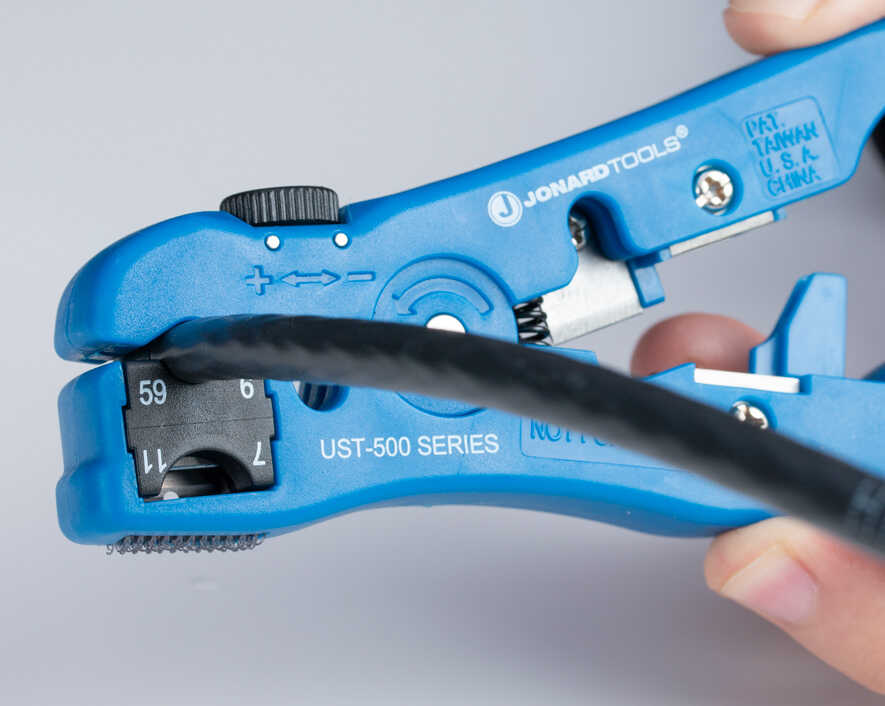

  • Included blade cartridge (UST-205) provides a 2-level strip on RG59, RG6, RG7, and RG11 COAX Cables for F, BNC, and RCA connector termination
  • High carbon steel blades last over 5,000 strips on each side
  • Cartridge is reversible for ambidextrous use

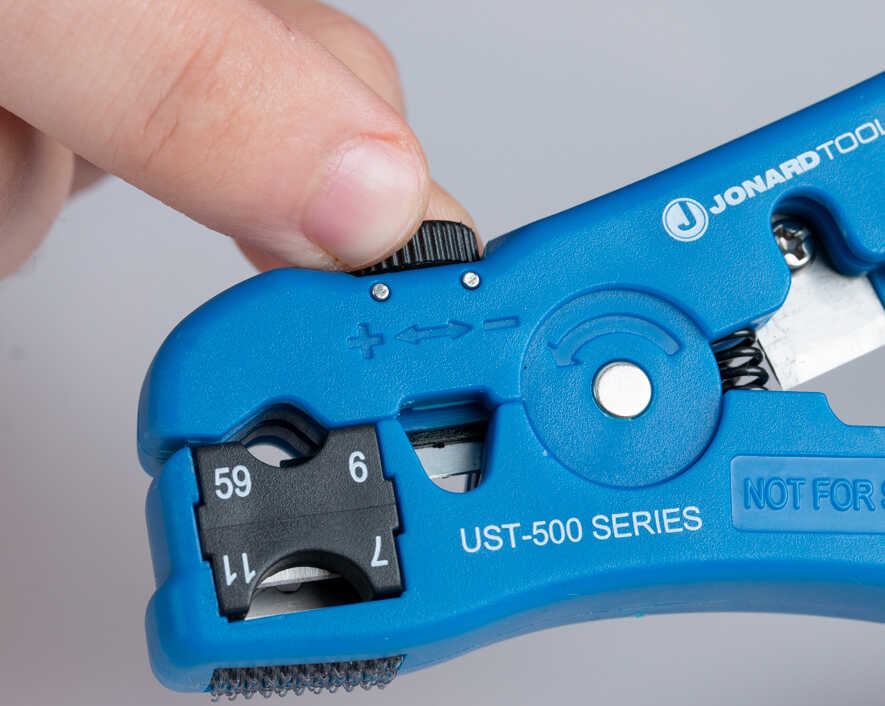

  • Adjustable stripping hole is used to strip CAT3/4/5e/6/6A PVC and Plenum network cables
  • Cutter is included to cut all types of cables
  • Separate stripping slot included for stripping flat telephone & 4P/6P style cable

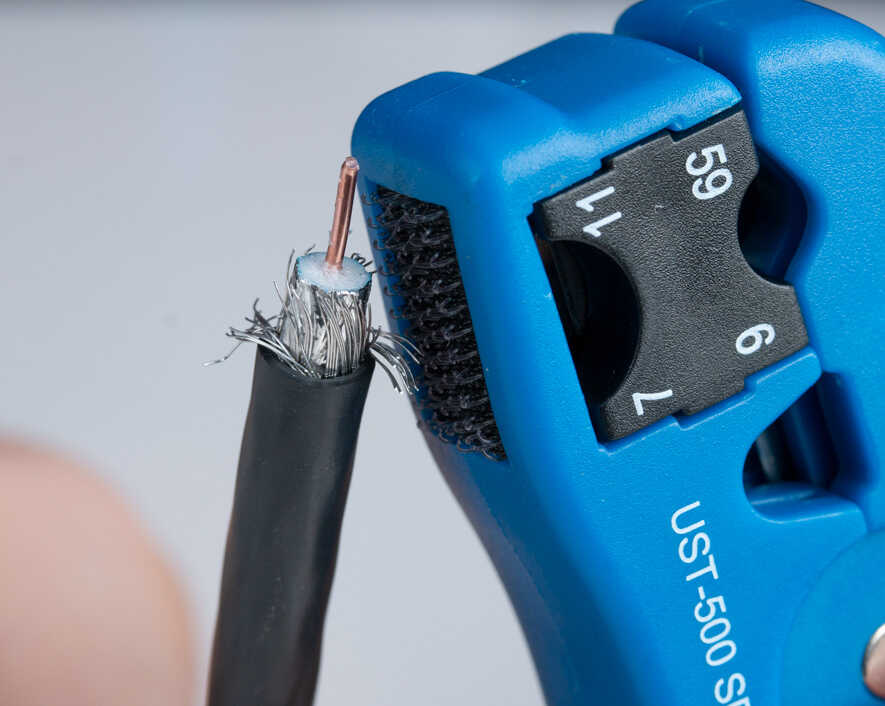

  • Hook and loop strip on bottom of the tool folds back the braided shield on the cable with ease
  • Large finger loop provides smooth rotation during use

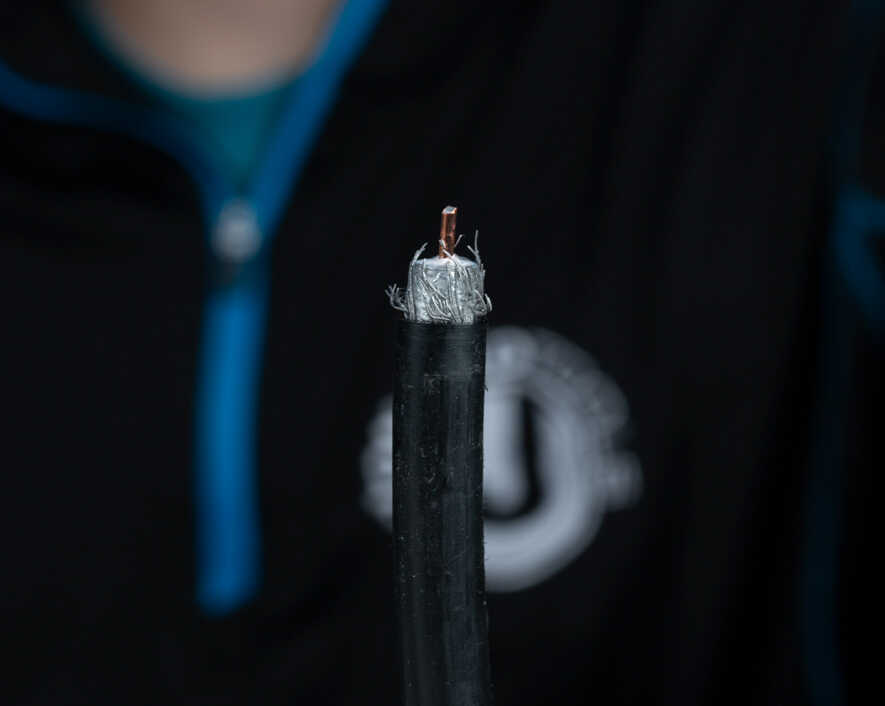

  • Stripping action removes 1/4" of jacket and 5/16" of shield and dielectric, which exposes the center conductor
Cable TypeCOAX, Network, Flat Telephone Cable
Cable SizeRG-59/6/7/11 COAX, CAT3/4/5e/6/6A Network, Up to 1 cm wide Flat Cable
Length4(12.6111cm)
Weight0.14 lb (64.46799999999999 g)
UPC #811490012233
