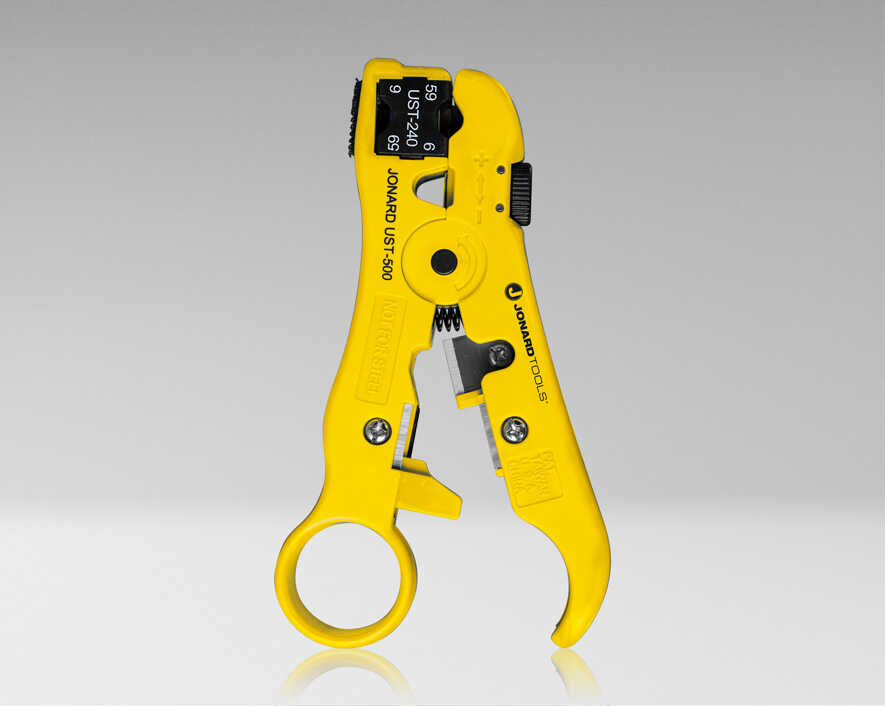

Jonard - UST-540 - Universal Strip Tool, RG59/6 Coax W&Wo Stop
Part number:
UST-540
Price:

The Jonard Tools UST-540 cable stripping tool is designed to strip COAX, Network Cables, and Telephone Cables for quick and easy termination. This universal stripping tool features the following:

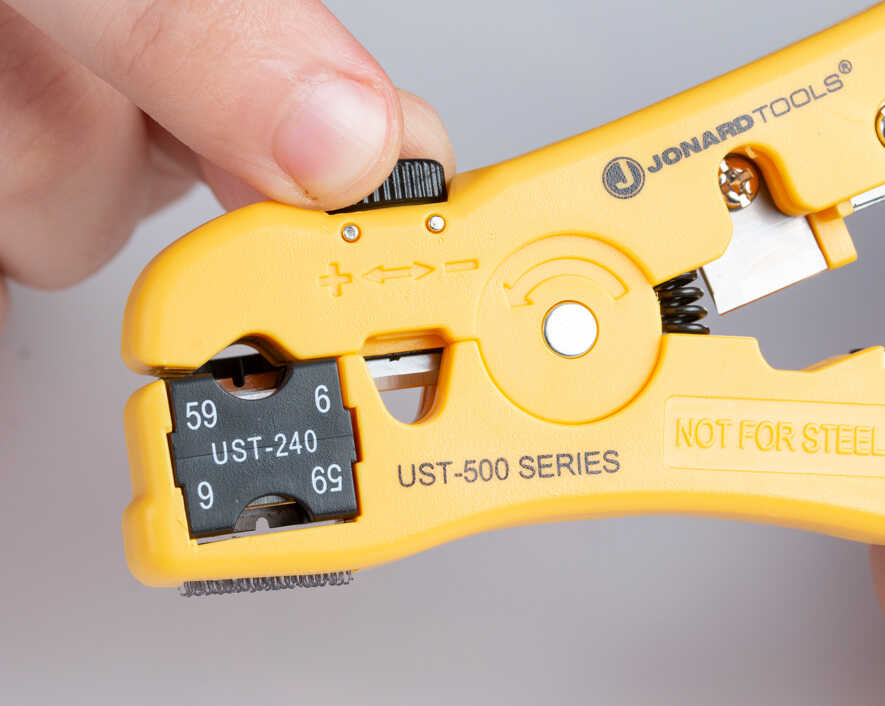

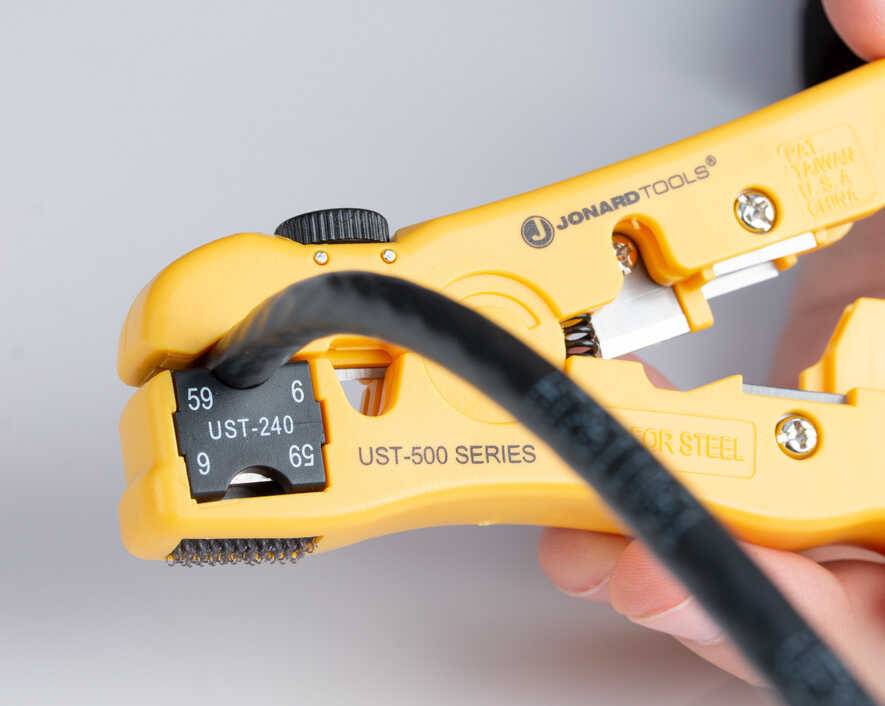

  • Included blade cartridge (UST-240) provides a 2-level strip on RG59 and RG6 COAX Cables for F, BNC, and RCA connector termination
  • High carbon steel blades last over 5,000 strips on each side
  • Cable stop on one side of the cartridge ensures precise stripping without need to make adjustments
  • Cartridge is reversible for ambidextrous use

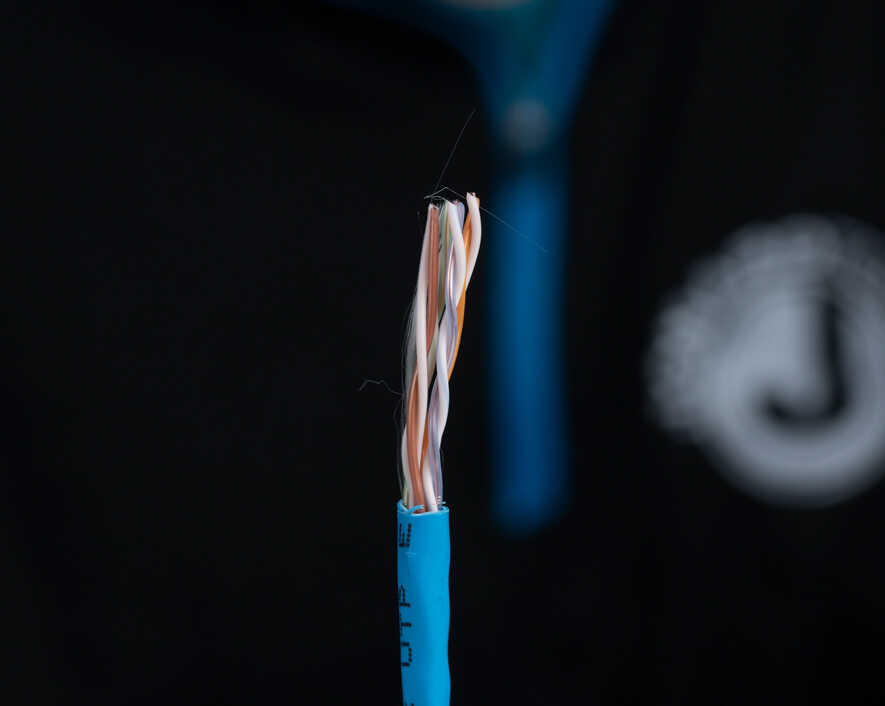

  • Adjustable stripping hole is used to strip CAT3/4/5E/6/6A PVC and Plenum network cables
  • Cutter is included to cut all types of cables
  • Separate stripping slot included for stripping Flat Cable & 4P/6P style cable

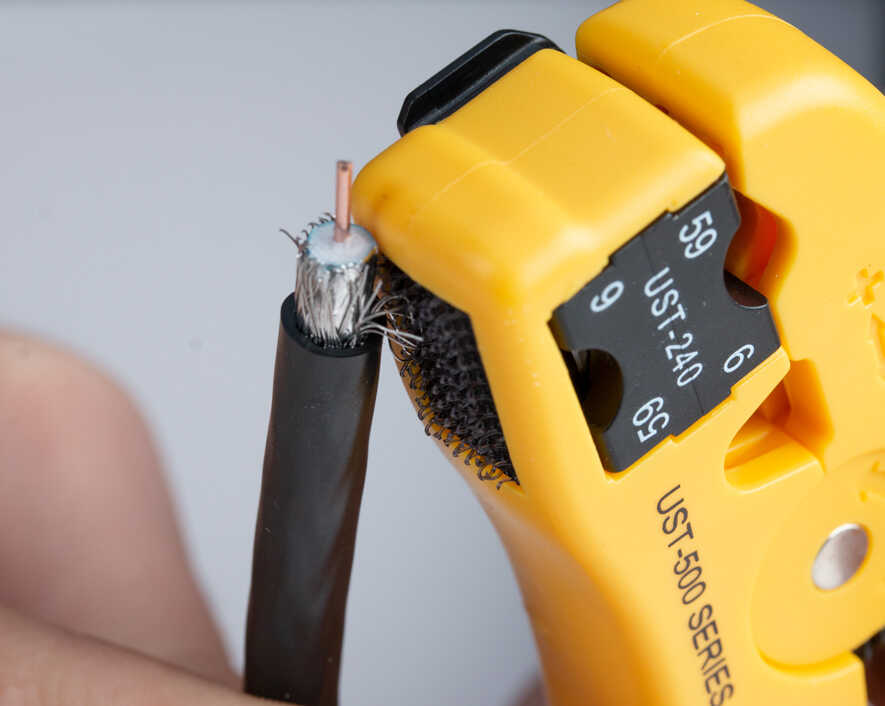

  • Hook and Loop strip on bottom of the tool folds back the braided shield on the cable with ease
  • Large finger loop provides smooth rotation during use
  • Stripping action removes 1/4" of jacket and 5/16" of shield and dielectric, which exposes the center conductor
Cable TypeCOAX, Network, Flat Telephone Cable
Cable SizeRG-59/6 COAX, CAT3/4/5E/6/6A Network, Up to 1 cm wide Flat Cable
Length4(12.4841cm)
Weight0.15 lb (66.284 g)
UPC #811490017696
