Jonard - UW4 - Unwrap Tool, 20-26 Awg
Part number:
UW4
Price:

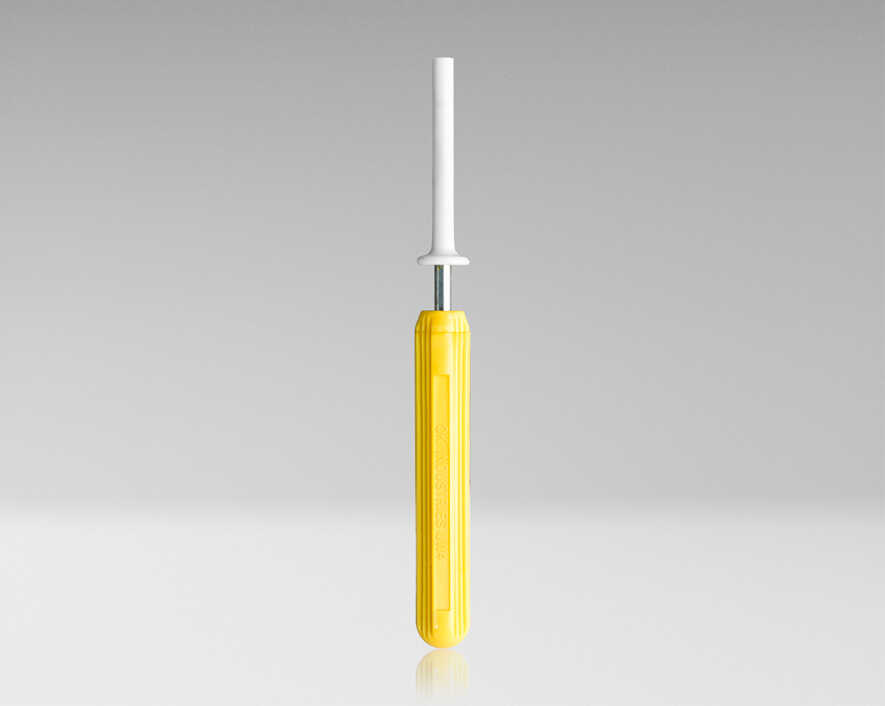

Designed to unwrap wire on binding posts in the left-hand direction, this spring-loaded hand wrap tool is perfect for unwrapping 20-26 AWG (0.81 mm-0.40 mm) wire quickly and easily. This unwrap tool features the following:

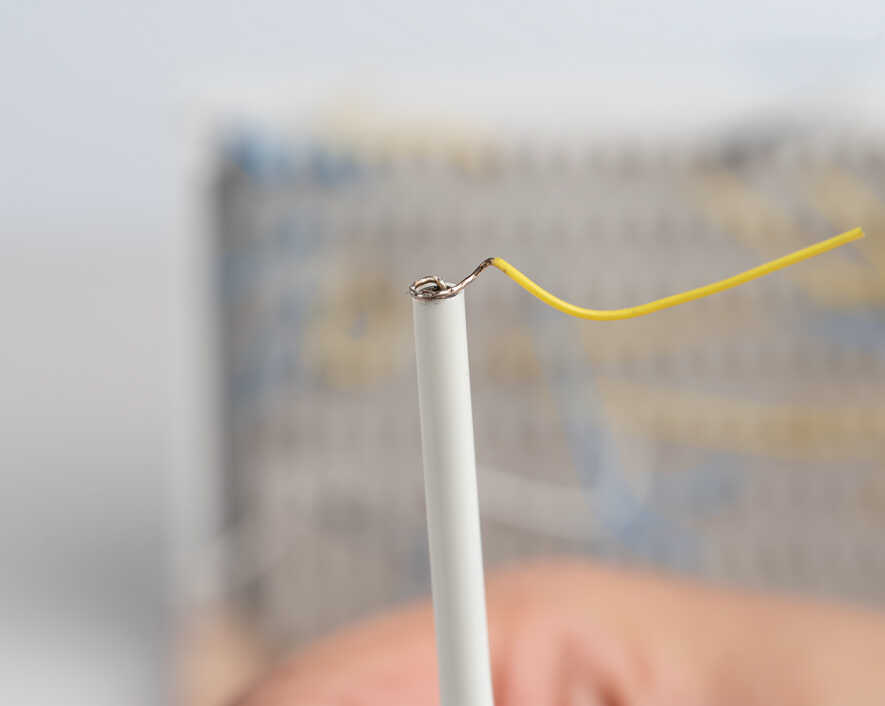

  • Spring-loaded retractable sleeve has special internal threads to keep unwrapped wire coiled and prevent shorts

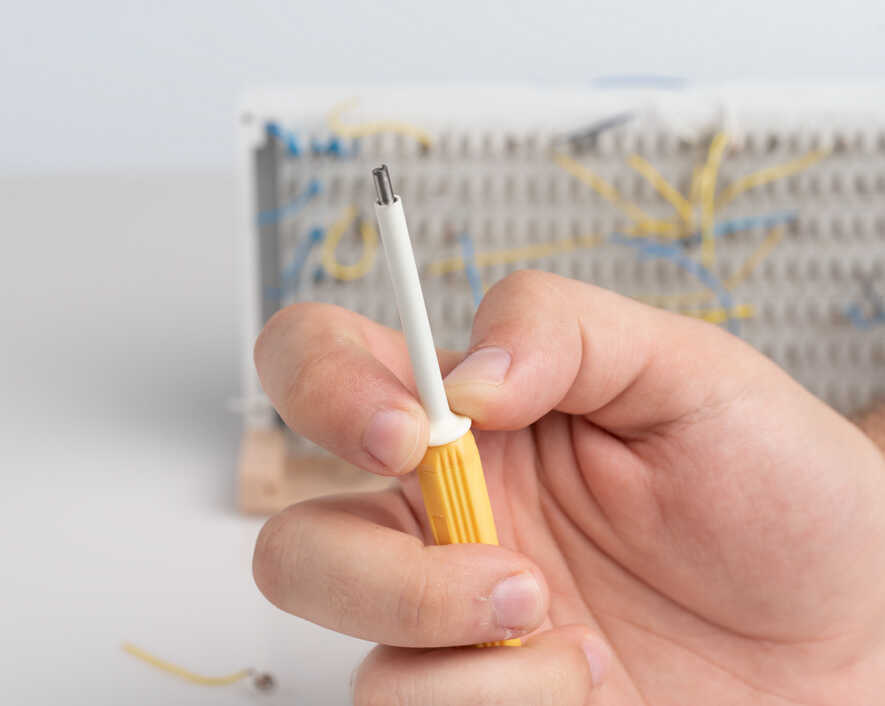

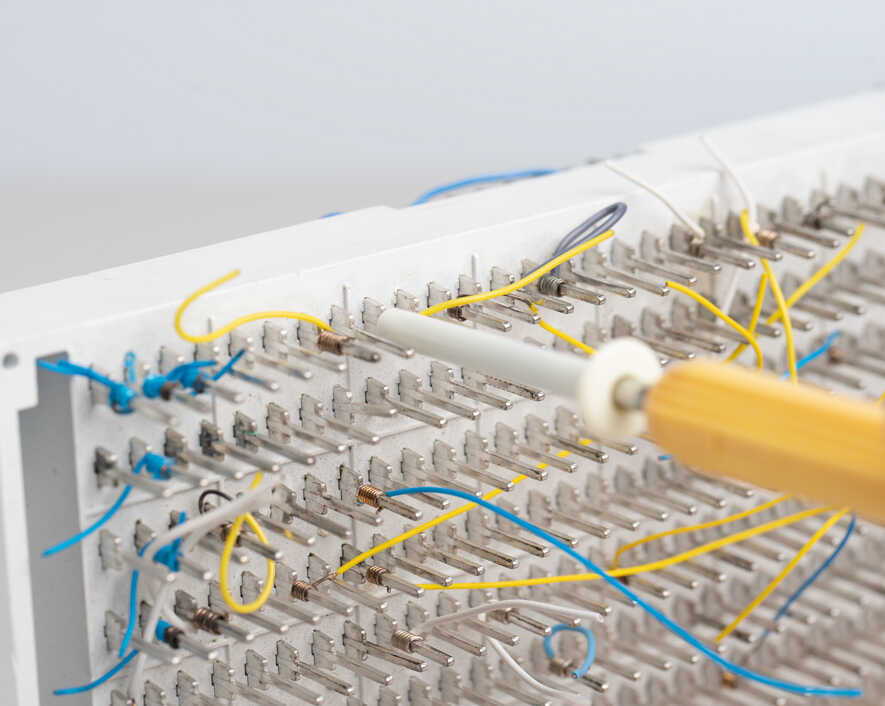

  • Simple two step operation: Push the tool onto a wrapped wire then pull back shield to remove the wire
  • Unwraps wire in the left-hand direction

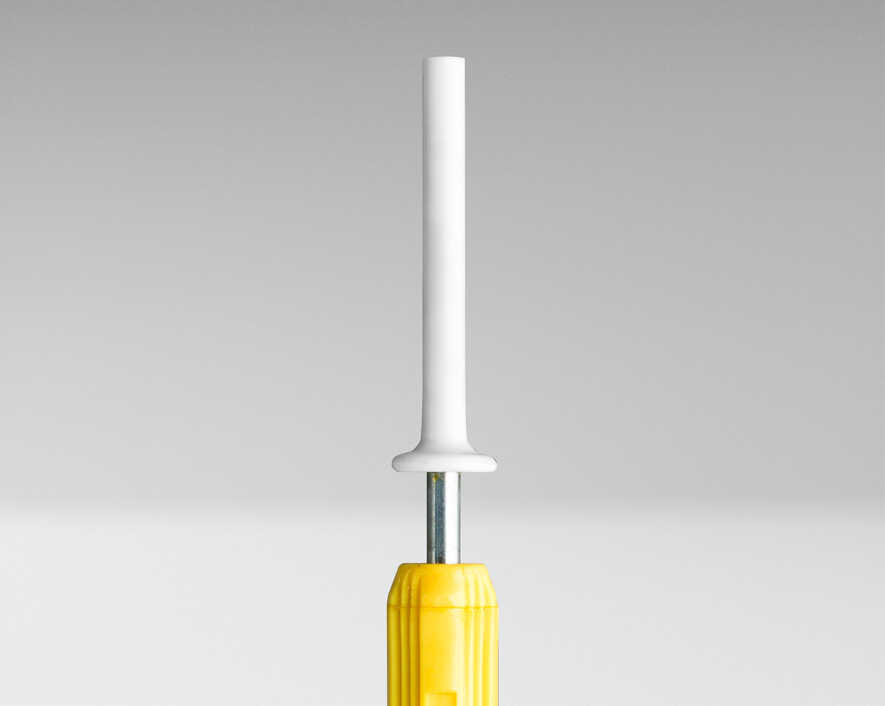

  • Molded sleeve and stainless steel shaft for long-life and durability
Unwrap Wire Gauge20-26 AWG (0.81 mm-0.40 mm)
Unwrap DirectionLeft-hand
Terminal Hole Diameter0.070" (1.77 mm)
Terminal Hole Depth2.36" (60 mm)
Outside Diameter1.95" (4.95 mm)
Wrap Post Size0.045" (1.14 mm)
Handle ColorYellow
Length5(13.9827cm)
Weight0.04 lb (16.344 g)
UPC #811490010581
