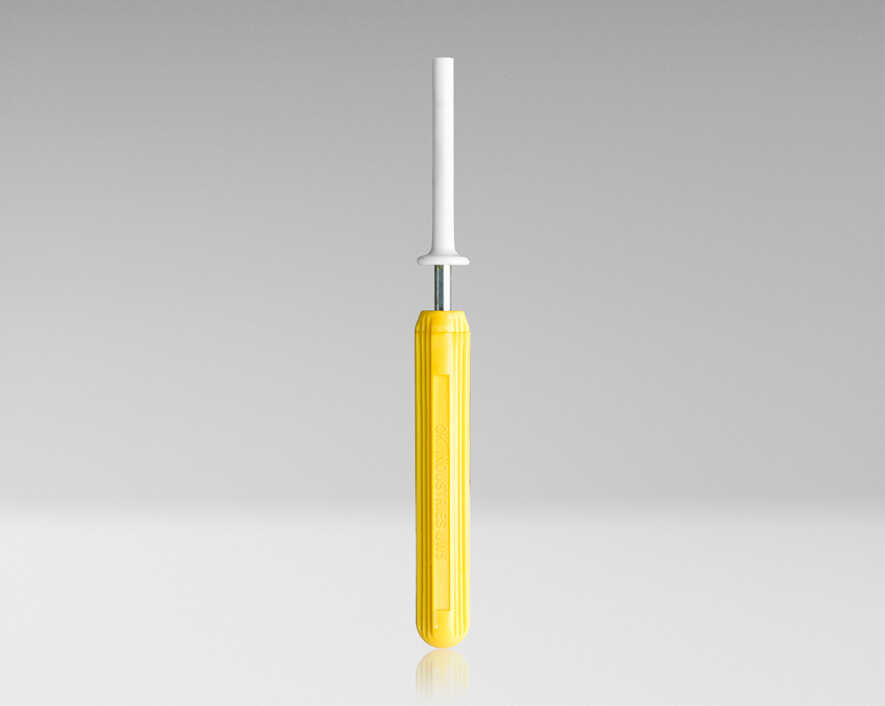

Designed to unwrap wire on binding posts in the left-hand or right-hand direction, this spring-loaded hand wrap tool is perfect for unwrapping 20-26 AWG (0.81 mm-0.40 mm) wire quickly and easily. This unwrap tool features the following:

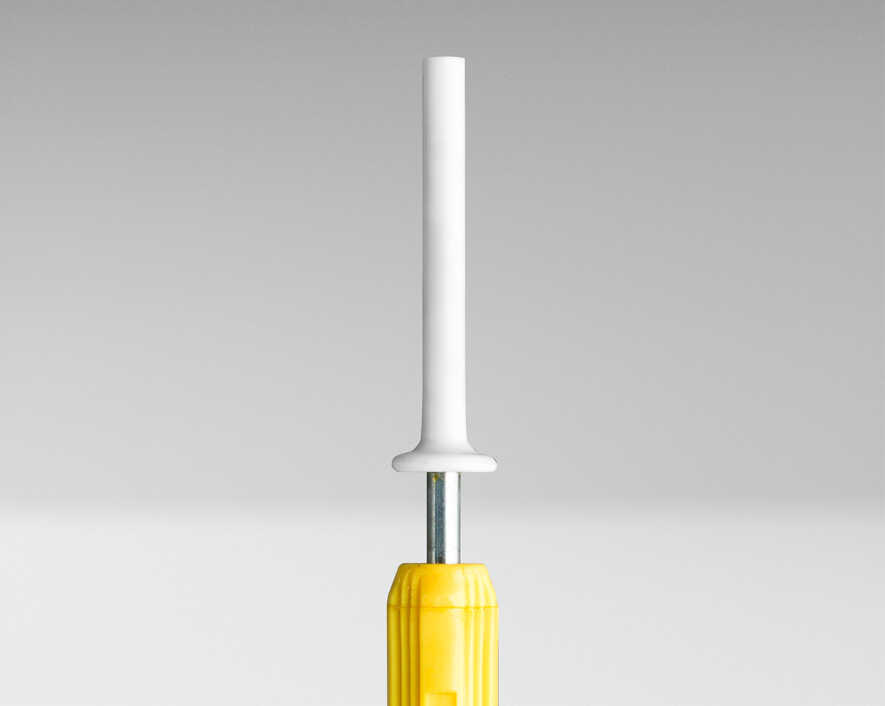

- Spring-loaded retractable sleeve

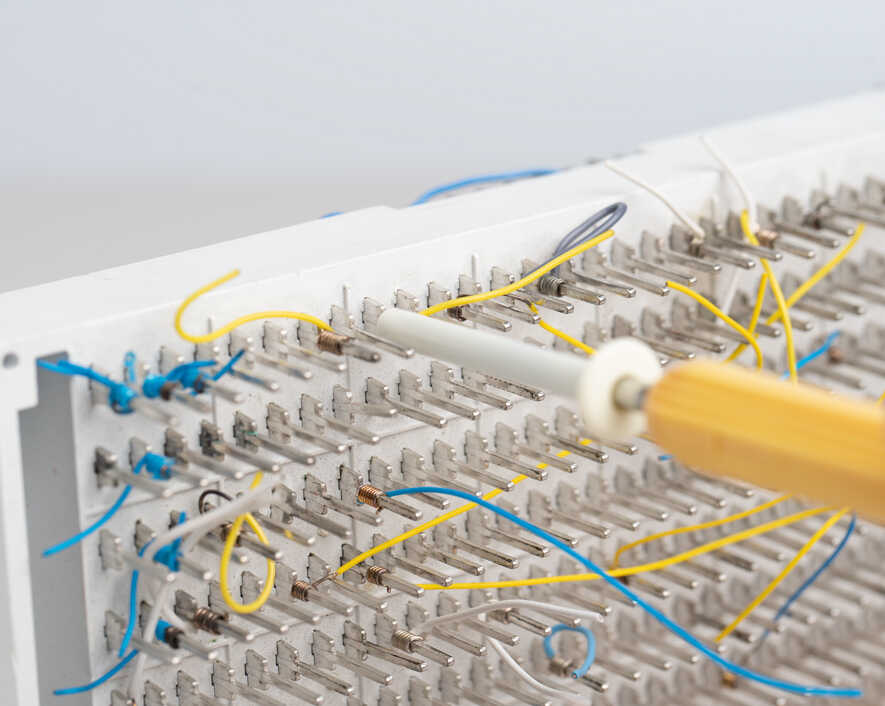

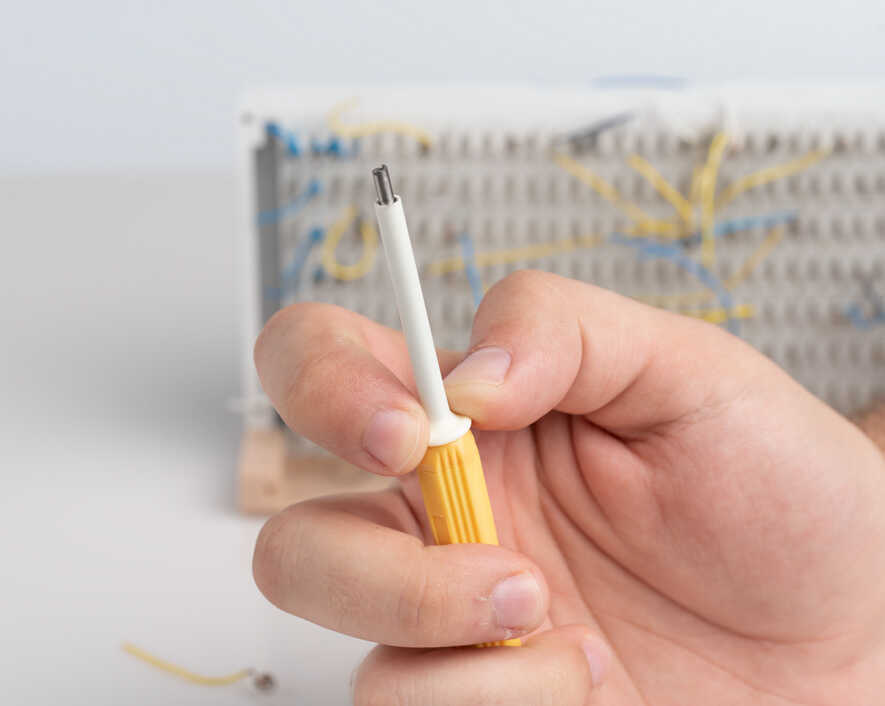

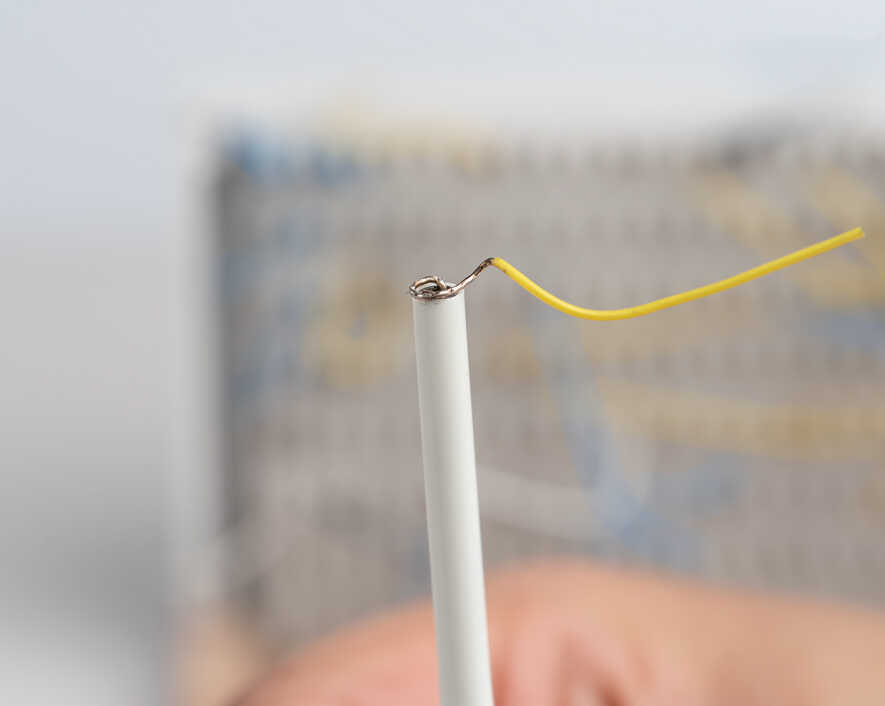

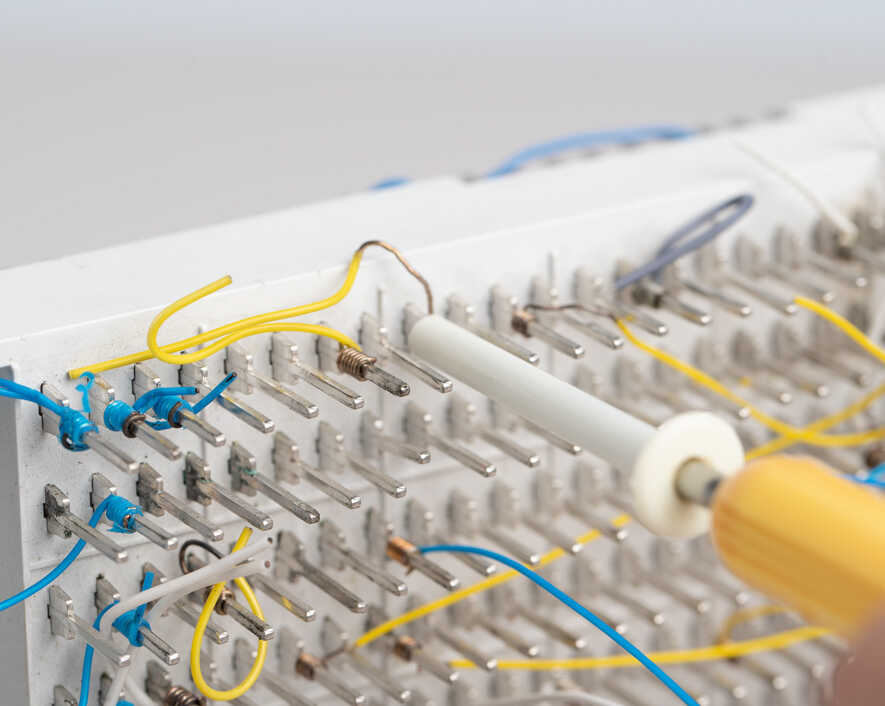

- Simple two step operation: Push the tool onto a wrapped wire then pull back shield to remove the wire
- Unwraps wire in the left-hand or right-hand direction
- Molded sleeve and stainless steel shaft for long-life and durability
| Unwrap Wire Gauge | 20-26 AWG (0.81 mm-0.40 mm) |
|---|---|
| Unwrap Direction | Left-hand, right-hand |
| Terminal Hole Diameter | 0.070" (1.77 mm) |
| Terminal Hole Depth | 2.36" (60 mm) |
| Outside Diameter | 1.95" (4.95 mm) |
| Wrap Post Size | 0.045" (1.14 mm) |
| Handle Color | Yellow |
| Length | 5(12.7cm) |
| Weight | 0.04 lb (16.344 g) |
| UPC # | 811490010598 |
